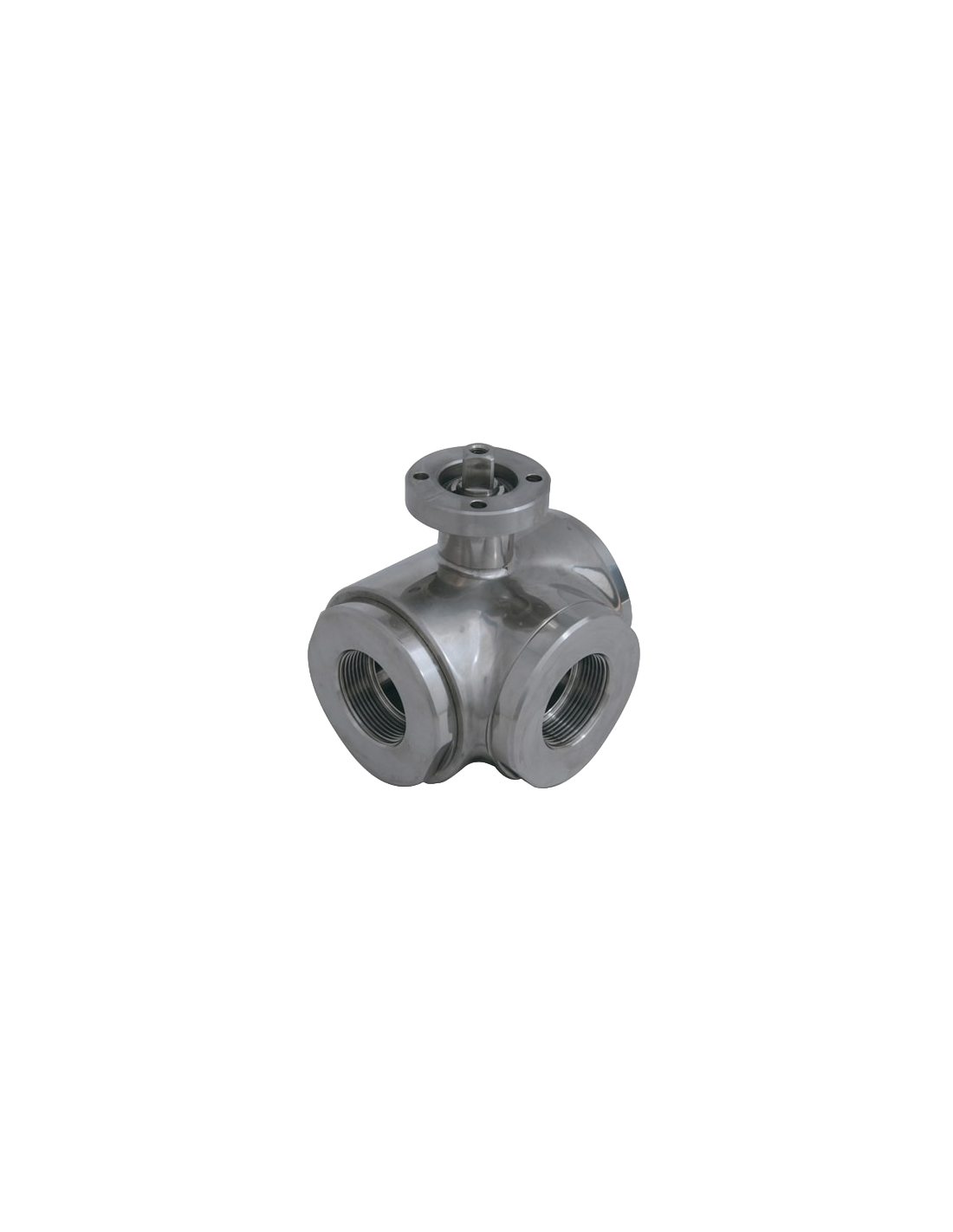

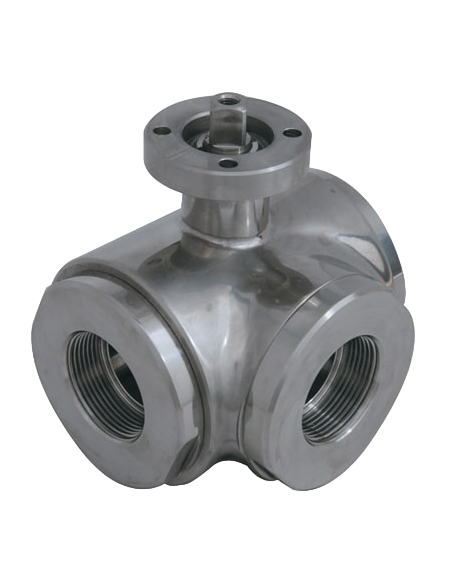

The 3 Way (T) Ball Valve - REDUCED STANDARD SEALS - ISO 228 F - 303001 by 4G Ghidini is a versatile valve designed for efficient fluid control. It features a "T" port configuration with reduced flow, suitable for various industrial applications. The valve is constructed from durable Aisi 316L (1.4404) stainless steel and is available in sizes ranging from 1/2” to 2”1/2. It includes four modified virgin P.T.F.E. seals, ensuring reliable performance within an operating temperature range of -20°C to +170°C. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator compatibility and has ISO 228 female threads for easy connection. The polished outer finish enhances its durability and aesthetic appeal. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

REDUCED THREE-way ball valve 4 seals with “T” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/female/female thread

Flow: Reduced

Material: Aisi 316L (1.4404)

Measure: from 1/2” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C +170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
