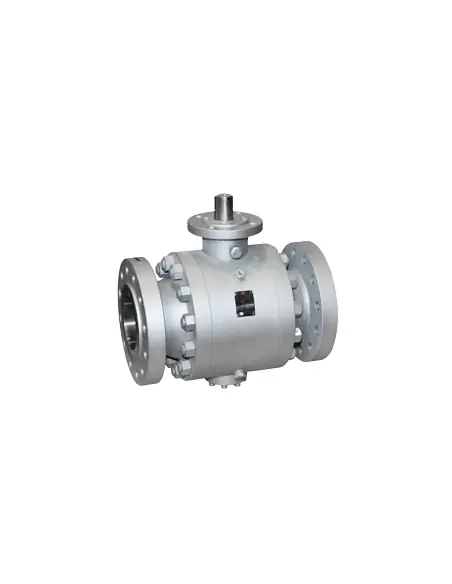

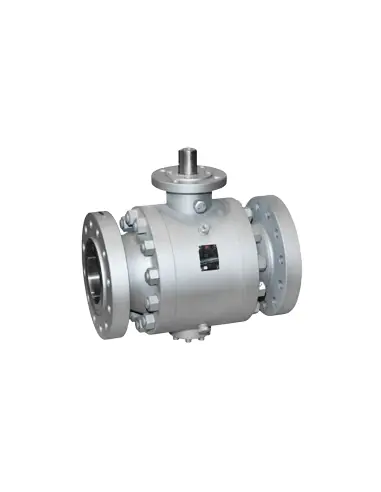

The Ball Valve Trunnion Mounted Class 900/1500/2500 - 6090/6050/6042 FB by JC Valves is a robust and reliable valve solution designed for high-pressure applications. Featuring a 3-piece body with full bore and flanged connections, it ensures efficient flow and easy maintenance. The valve is equipped with a blowout-proof stem and non-removable antistatic devices for enhanced safety. It adheres to stringent standards, including API 6D, PED, and fire-safe certifications like API 607 and ISO 10497. Suitable for diverse industries such as Oil & Gas, Chemical, Marine, and Mining, it meets NACE MR0175/ISO15156 requirements for material integrity in corrosive environments.
Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105N
  • ASTM A182 F316
  • ASTM A350 LF2
Pressure Rating (Options)
  • 900 lbs
  • 1500 lbs
  • 2500 lbs
Seat (Options)
  • RPTFE
  • Devlon
  • PEEK

Datasheet and documents

Description

PRODUCT FEATURES

3-pieces body, Full bore
Flanged connections
Blowout-proof stem
Non-removable antistatic devices

STANDARDS

API 6D
PED
Quality Standard MSS SP 55
All wetted component materials meet NACE MR0175 / ISO15156 & NACE MR0103 / ISO17945
Fire-Safe API 607, ISO 10497, API 6FA
Fugitive Emissions : ISO 15848 / TA-LUFT
ATEX

INDUSTRIES

Oil & Gas
Chemical & Petrochemical
Pulp & Paper
Energy & Renewable
Marine
Tank terminals
Mining
Waste treatment
Special fluids transport
