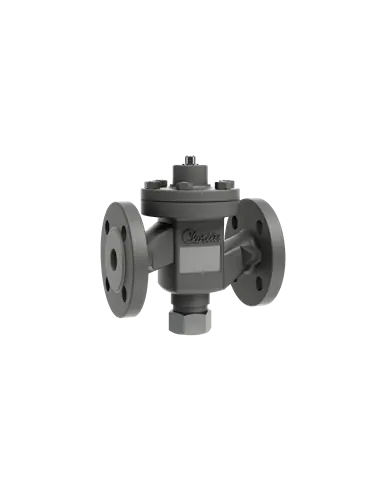

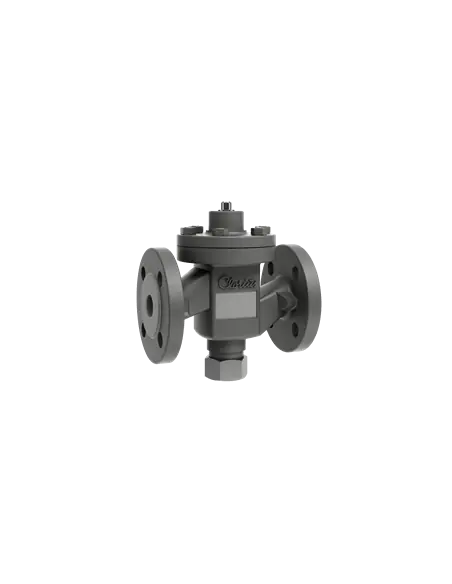

The Control Valves 2-way DN 20-80mm from Clorius Controls are robust and versatile solutions designed for efficient flow regulation in various applications. Constructed from durable cast iron, these valves are suitable for use in systems involving compressed air, cooling, demi water, heating, solar energy, and steam. Their reliable performance and adaptability make them ideal for managing fluid dynamics in diverse industrial and commercial settings.
Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 16
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2220016RVALVE M2F DN155.0 KGMPN 16
1-2220032RVALVE M2F DN20 REVAMPED5.0 KGMPN 16Flange
1-2220067RVALVE M2F DN2555.0 KGMPN 16Flange
1-2220083RVALVE MF2 DN329.0 KGMPN 16Flange
1-2220105RVALVE M2F DN4011.0 KGMPN 16Flange
1-2220121RVALVE M2F DN5016.0 KGMPN 16Flange
1-2220156RVALVE M2F DN6521.0 KGMPN 16Flange
1-2220172RVALVE M2F DN8026.0 KGMPN 16Flange
1-2220636VALVE M2F DN20, EN FLANGESDN205.0 KGMPN 16Flange
1-2220636GVALVE M2F DN20 CUT-THROUGH6.0 KGMPN 16Flange
1-2220636RVALVE M2F DN2045.0 KGMPN 16Flange
1-2220652VALVE M2F DN25, EN FLANGESDN256.5 KGMPN 16Flange
1-2220652GVALVE M2F DN25 CUT-THROUGH91.0 KGMPN 16Flange
1-2220652RVALVE M2F DN2556.0 KGMPN 16Flange
1-2220687VALVE M2F DN32, EN FLANGESDN329.0 KGMPN 16Flange
1-2220687RVALVE M2F DN3284.0 KGMPN 16Flange
1-2220709VALVE M2F DN40, EN FLANGESDN4011.0 KGMPN 16Flange
1-2220709RVALVE M2F DN40104.0 KGMPN 16Flange
1-2220725VALVE M2F DN50, EN FLANGESDN5016.0 KGMPN 16Flange
1-2220725RVALVE M2F DN50145.0 KGMPN 16Flange
1-2220776VALVE M2F DN65, EN FLANGESDN6521.0 KGMPN 16Flange
1-2220784VALVE M2F DN80, EN FLANGESDN8038.0 KGMPN 16Flange
1-2220849VALVE M2F DN40 STAINLESS STEEL NUT11.0 KGMPN 16Flange
1-2220857VALVE M2F DN32 NODULAR CAST IRON9.0 KGMPN 16Flange
1-2220952VALVE M2F DN50 JIS 10K16.0 KGM10KJIS flange
1-2220954VALVE M2F DN50 WITH JIS FLANGE 16K16.0 KGM10KJIS flange
1-2220997VALVE M2F DN32 NO DRILL FLANGE9.0 KGMPN 16Flange
1-2221012VALVE M2F DN32/40 KVS 209.0 KGMPN 16Flange
1-2221039VALVE M2F DN40 NO DRILL FLANGE104.0 KGMPN 16Flange
1-2221063VALVE M2F DN50 ANSI 150147.0 KGMClass 150ANSI flange
1-2221096VALVE M2F DN80, JIS 5KDN8038.0 KGM5KJIS flange
1-2221097VALVE M2F DN80, JIS 16KDN8038.0 KGM16KJIS flange
1-2221098VALVE M2F DN80, ANSI 150DN8038.0 KGMClass 150ANSI flange
1-2221099VALVE M2F DN80, JIS 10KDN8038.0 KGM10KJIS flange
1-2221152VALVE M2F DN80 NO DRILL FLANGES42.0 KGMPN 16Flange
1-2221209VALVE M2F DN40 WITH JIS FLANGES 16K104.0 KGM16KJIS flange
1-2221305VALVE M2F DN20, ANSI 150DN205.0 KGMClass 150ANSI flange
1-2221306VALVE M2F DN20, JIS 10KDN205.0 KGM10KJIS flange
1-2221307VALVE M2F DN20, JIS 5KDN205.0 KGM5KJIS flange
1-2221308VALVE M2F DN20, JIS 16KDN205.0 KGM16KJIS flange
1-2221318VALVE M2F DN25, ANSI 150DN256.5 KGMClass 150ANSI flange
1-2221319VALVE M2F DN25, JIS 10KDN256.5 KGM10KJIS flange
1-2221320VALVE M2F DN25, JIS 5KDN256.5 KGM5KJIS flange
1-2221321VALVE M2F DN25, JIS 16KDN256.5 KGM16KJIS flange
1-2221331VALVE M2F DN32, ANSI 150DN329.0 KGMClass 150ANSI flange
1-2221332VALVE M2F DN32, JIS 10KDN329.0 KGM10KJIS flange
1-2221333VALVE M2F DN32, JIS 5KDN329.0 KGM5KJIS flange
1-2221334VALVE M2F DN32, JIS 16KDN329.0 KGM16KJIS flange
1-2221338VALVE M2F DN50, ANSI 150DN4011.0 KGMClass 150ANSI flange
1-2221339VALVE M2F DN40, JIS 10KDN4011.0 KGM10KJIS flange
1-2221340VALVE M2F DN40, JIS 5KDN4011.0 KGM5KJIS flange
1-2221341VALVE M2F DN40, JIS 16KDN4011.0 KGM16KJIS flange
1-2221346VALVE M2F DN50, ANSI 150DN5016.0 KGMClass 150ANSI flange
1-2221347VALVE M2F DN50, JIS 5KDN5016.0 KGM5KJIS flange
1-2221348VALVE M2F DN50, JIS 16KDN5016.0 KGM16KJIS flange
1-2221351VALVE M2F DN65, ANSI 150DN6521.0 KGMClass 150ANSI flange
1-2221352VALVE M2F DN65, JIS 10KDN6521.0 KGM10KJIS flange
1-2221353VALVE M2F DN65, JIS 5KDN6521.0 KGM5KJIS flange
1-2221354VALVE M2F DN65, JIS 16KDN6521.0 KGM16KJIS flange
1-2221357VALVE M2F DN50 REINFORCED SPRING145.0 KGMPN 16Flange
1-2221361VALVE M2F DN65 REINFORCED SPRING191.0 KGMPN 16Flange
1-2221365VALVE M2F DN80 REINFORCED SPRING375.0 KGMPN 16Flange
1-2229030VALVE M2F DN32+V4.05+SENSOR POCKETPN 16Flange
1-2229040VALVE M2F DN40+V4.05+SENSOR POCKETPN 16Flange
1-2229050VALVE M2F DN50+V4.05+SENSOR POCKETPN 16Flange
1-2990652SPARE PART KIT M2F DN40-50 GL5.0 KGMPN 16

Art. No.

Size

d

L

H1

H

1-2220016RDN15
1-2220032R3/4" (DN20)
1-2220067R1" (DN25)
1-2220083R1 1/4" (DN32)
1-2220105R1 1/2" (DN40)
1-2220121R2" (DN50)
1-2220156R2 1/2" (DN65)
1-2220172R3" (DN80)
1-2220636DN201 1/4" (DN32)150.085.0
1-2220636G3/4" (DN20)
1-2220636R3/4" (DN20)
1-2220652DN251" (DN25)160.095.0
1-2220652G1" (DN25)
1-2220652R1" (DN25)
1-2220687DN321 1/4" (DN32)180.0105.0
1-2220687R1 1/4" (DN32)
1-2220709DN401 1/2" (DN40)200.0110.0
1-2220709R1 1/2" (DN40)
1-2220725DN502" (DN50)230.0125.0
1-2220725R2" (DN50)
1-2220776DN652 1/2" (DN65)290.0135.0
1-2220784DN803" (DN80)310.0145.0
1-22208491 1/2" (DN40)
1-22208571 1/4" (DN32)
1-22209522" (DN50)
1-22209542" (DN50)
1-22209971 1/4" (DN32)
1-22210121 1/2" (DN40)
1-22210391 1/2" (DN40)
1-22210632" (DN50)
1-2221096DN803" (DN80)310.0145.0
1-2221097DN803" (DN80)310.0145.0
1-2221098DN803" (DN80)310.0145.0
1-2221099DN803" (DN80)310.0145.0
1-22211523" (DN80)
1-22212091 1/2" (DN40)
1-2221305DN203/4" (DN20)150.085.0
1-2221306DN203/4" (DN20)150.085.0
1-2221307DN203/4" (DN20)150.085.0
1-2221308DN203/4" (DN20)150.085.0
1-2221318DN251" (DN25)160.095.0
1-2221319DN251" (DN25)160.095.0
1-2221320DN251" (DN25)160.095.0
1-2221321DN251" (DN25)160.095.0
1-2221331DN321 1/4" (DN32)180.0105.0
1-2221332DN321 1/4" (DN32)180.0105.0
1-2221333DN321 1/4" (DN32)180.0105.0
1-2221334DN321 1/4" (DN32)180.0105.0
1-2221338DN401 1/2" (DN40)200.0110.0
1-2221339DN401 1/2" (DN40)200.0110.0
1-2221340DN40DN40200.0110.0
1-2221341DN401 1/2" (DN40)200.0110.0
1-2221346DN502" (DN50)230.0125.0
1-2221347DN502" (DN50)200.0110.0
1-2221348DN502" (DN50)200.0110.0
1-2221351DN652 1/2" (DN65)290.0135.0
1-2221352DN652 1/2" (DN65)290.0135.0
1-2221353DN652 1/2" (DN65)290.0135.0
1-2221354DN652 1/2" (DN65)290.0135.0
1-22213572" (DN50)
1-22213612 1/2" (DN65)
1-22213653" (DN80)
1-22290301 1/4" (DN32)
1-22290401 1/2" (DN40)
1-22290502" (DN50)
1-2990652

Characteristics

Manufacturer5705737000006
