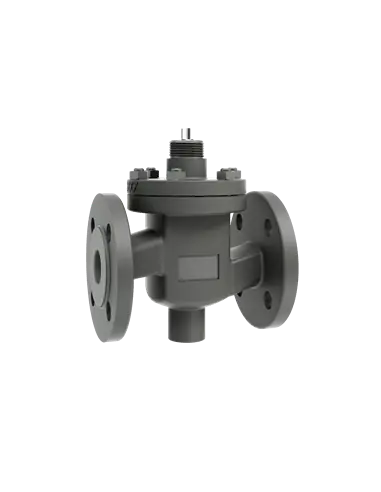

The Control Valve Balanced 2-Way DN 15-80mm by Clorius Controls is a versatile and durable valve designed for efficient flow regulation in various applications. Constructed from robust cast iron, this valve is suitable for use with compressed air, cooling systems, demineralized water, heating, solar energy, and steam. Its balanced design ensures precise control and reliability across a range of industrial and commercial settings.
Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 16
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

rt. No.

Description

Size

Item weight

PN

Type of connection

1-2210738VALVE M1FB DN25 ANSI 150DN256.0 KGMClass 150ANSI flange
1-2210746VALVE M1FB DN40 ANSI 150DN4013.0 KGMClass 150ANSI flange
1-2212500VALVE M1FBN DN15, EN FLANGESDN154.0 KGMPN 16Flange
1-2212501VALVE M1FBN DN15, JIS 10KDN154.0 KGM10KJIS flange
1-2212502VALVE M1FBN DN15, ANSI 150DN154.0 KGMClass 150ANSI flange
1-2212503VALVE M1FBN DN15, JIS 5KDN154.0 KGM5KJIS flange
1-2212504VALVE M1FBN DN15, JIS 16KDN154.0 KGM16KJIS flange
1-2212508VALVE M1FBN DN20, JIS 5KDN205.0 KGM5KJIS flange
1-2212509VALVE M1FBN DN20, JIS 16KDN205.0 KGM16KJIS flange
1-2212510VALVE M1FBN DN20, EN FLANGESDN205.0 KGMPN 16Flange
1-2212511VALVE M1FBN DN20, JIS 10KDN205.0 KGM10KJIS flange
1-2212512VALVE M1FBN DN20, ANSI 150DN205.0 KGMClass 150ANSI flange
1-2212520VALVE M1FBN DN25, EN FLANGESDN256.0 KGMPN 16Flange
1-2212521VALVE M1FBN DN25, JIS 10KDN256.0 KGM10KJIS flange
1-2212522VALVE M1FBN DN25, JIS 5KDN256.0 KGM5KJIS flange
1-2212523VALVE M1FBN DN25, JIS 16KDN256.0 KGM16KJIS flange
1-2212530VALVE M1FBN DN32, EN FLANGESDN329.0 KGMPN 16Flange
1-2212531VALVE M1FBN DN32, JIS 10KDN329.0 KGM10KJIS flange
1-2212532VALVE M1FBN DN32, ANSI 150DN329.0 KGMPN 16ANSI flange
1-2212533VALVE M1FBN DN32, JIS 5KDN329.0 KGM5KJIS flange
1-2212534VALVE M1FBN DN32, JIS 16KDN329.0 KGM16KJIS flange
1-2212540VALVE M1FBN DN40, EN FLANGESDN4013.0 KGMPN 16Flange
1-2212541VALVE M1FBN DN40, JIS 10KDN4013.0 KGM10KJIS flange
1-2212542VALVE M1FBN DN40, JIS 5KDN4013.0 KGM5KJIS flange
1-2212543VALVE M1FBN DN40, JIS 16KDN4013.0 KGM16KJIS flange
1-2212550VALVE M1FBN DN50, EN FLANGESDN5016.0 KGMPN 16Flange
1-2212551VALVE M1FBN DN50, JIS 10KDN5016.0 KGM10KJIS flange
1-2212552VALVE M1FBN DN50, ANSI 150DN5016.0 KGMPN 16ANSI flange
1-2212553VALVE M1FBN DN50, JIS 5KDN5016.0 KGM5KJIS flange
1-2212554VALVE M1FBN DN50, JIS 16KDN5016.0 KGM16KJIS flange
1-2212560VALVE M1FBN DN65, EN FLANGESDN6523.0 KGMPN 16Flange
1-2212561VALVE M1FBN DN65, JIS 10KDN6523.0 KGM10KJIS flange
1-2212562VALVE M1FBN DN65, ANSI 150DN6523.0 KGMClass 150ANSI flange
1-2212563VALVE M1FBN DN65, JIS 5KDN6523.0 KGM5KJIS flange
1-2212564VALVE M1FBN DN65, JIS 16KDN6523.0 KGM16KJIS flange
1-2212570VALVE M1FBN DN80 EN-PNDN8038.0 KGMPN 16Flange
1-2212571VALVE M1FBN DN80, JIS 10KDN8018.0 KGM10KJIS flange
1-2212572VALVE M1FBN DN80, ANSI 150DN8038.0 KGMClass 150ANSI flange
1-2212573VALVE M1FBN DN80, JIS 5KDN8018.0 KGM5KJIS flange
1-2212574VALVE M1FBN DN80, JIS 16KDN8018.0 KGM16KJIS flange
1-2214000VALVE M1FBN DN20 WITH V8.09 VARIANT1213.0 KGMPN 16Flange
1-2214002VALVE M1FBN DN25 WITH V8.09 VARIANT1342.0 KGMPN 16Flange
1-2214004VALVE M1FBN DN50 WITH V8.18 VARIANT2216.0 KGMPN 16Flange

rt. No.

Size

d

L

H1

H

1-2210738DN251" (DN25)160.070.0112.0
1-2210746DN401 1/2" (DN40)200.085.0125.0
1-2212500DN151/2" (DN15)130.080.0101.0
1-2212501DN151/2" (DN15)130.080.0101.0
1-2212502DN151/2" (DN15)130.080.0101.0
1-2212503DN151/2" (DN15)130.080.0101.0
1-2212504DN151/2" (DN15)130.080.0101.0
1-2212508DN203/4" (DN20)150.085.0107.0
1-2212509DN203/4" (DN20)150.085.0107.0
1-2212510DN203/4" (DN20)150.085.0107.0
1-2212511DN203/4" (DN20)150.085.0107.0
1-2212512DN203/4" (DN20)150.085.0107.0
1-2212520DN251" (DN25)160.070.0112.0
1-2212521DN251" (DN25)160.070.0112.0
1-2212522DN251" (DN25)160.070.0112.0
1-2212523DN251" (DN25)160.070.0112.0
1-2212530DN321 1/4" (DN32)180.075.0122.0
1-2212531DN321 1/4" (DN32)180.075.0122.0
1-2212532DN32DN32180.075.0122.0
1-2212533DN321 1/4" (DN32)180.075.0122.0
1-2212534DN321 1/4" (DN32)180.075.0122.0
1-2212540DN401 1/2" (DN40)200.085.0125.0
1-2212541DN401 1/2" (DN40)200.085.0125.0
1-2212542DN401 1/2" (DN40)200.085.0125.0
1-2212543DN401 1/2" (DN40)200.085.0125.0
1-2212550DN502" (DN50)230.095.0140.0
1-2212551DN502" (DN50)230.095.0140.0
1-2212552DN50DN50230.095.0140.0
1-2212553DN502" (DN50)230.095.0140.0
1-2212554DN502" (DN50)230.095.0140.0
1-2212560DN652 1/2" (DN65)290.0110.0154.0
1-2212561DN652 1/2" (DN65)290.0110.0154.0
1-2212562DN652 1/2" (DN65)290.0110.0154.0
1-2212563DN652 1/2" (DN65)290.0110.0154.0
1-2212564DN652 1/2" (DN65)290.0110.0154.0
1-2212570DN803" (DN80)310.0115.0164.0
1-2212571DN803" (DN80)310.0115.0164.0
1-2212572DN803" (DN80)310.0115.0164.0
1-2212573DN803" (DN80)310.0115.0164.0
1-2212574DN803" (DN80)310.0115.0164.0
1-22140003/4" (DN20)
1-22140021" (DN25)
1-22140042" (DN50)

Characteristics

Manufacturer5705737000006
