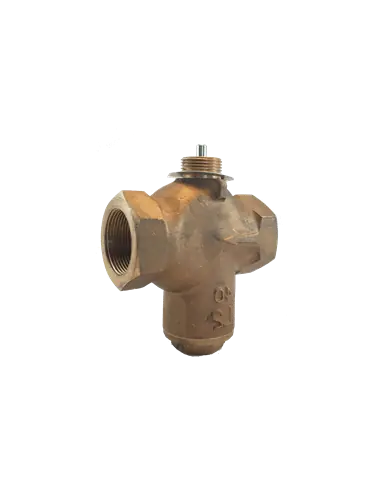

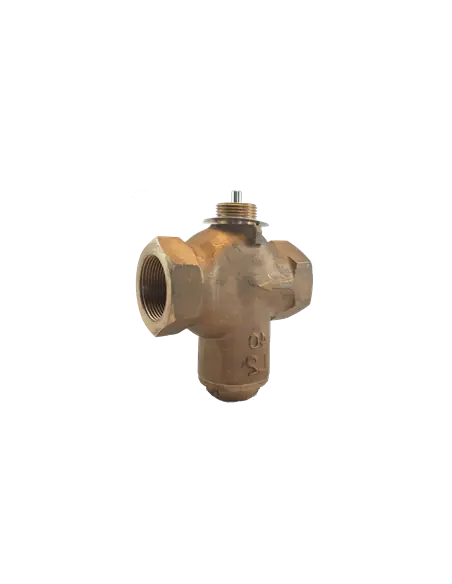

The Control Valve 2-way DN 40-50mm Reverse Acting from Clorius Controls is designed for efficient regulation in cooling applications. Constructed from durable gun metal, this valve is suitable for a variety of applications including compressed air, cooling, demi water, heating, solar energy, and steam systems. Its reverse acting mechanism ensures precise control and reliability in demanding environments.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
Material (Options)
  • Gun metal
Pressure Rating (Options)
  • PN 16
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2120538VALVE L2SR DN15 KVS 2.751.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120554VALVE L2SR DN20 KVS 5.01.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120589VALVE L2SR DN25 KVS 7.515.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120619VALVE L2SR DN32 KVS 12.518.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120635VALVE L2SR DN40, BSP THREADINGDN403.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120651VALVE L2SR DN50, BSP THREADINGDN504.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120712VALVE L2SR DN50 KVS 30 2"NPT42.0 KGMPN 16FPT - female thread conical (NPT)
1-2120721VALVE L2SR DN25 WITH BLEED HOLE15.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120798VALVE L2SR DN25 KVS 7.5 WITH STRONGER SPRING FORCE1.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2120801VALVE L2SR DN32 KVS 12.516.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2990156TRIM SET - L2SR DN15-253.0 KGMPN 16Rp - female thread cylindrical (BSPT)
1-2990474TRIM SET - L2SR DN40-501.0 KGMPN 16Rp - female thread cylindrical (BSPT)

Art. No.

Size

d

L

H1

H

1-21205381/2" (DN15)
1-21205543/4" (DN20)
1-21205891" (DN25)
1-21206191 1/4" (DN32)
1-2120635DN401 1/2" (DN40)129.090.065.0
1-2120651DN502" (DN50)153.094.070.0
1-21207122" (DN50)
1-21207211" (DN25)
1-21207981" (DN25)
1-21208011 1/4" (DN32)
1-2990156
1-2990474

Characteristics

Manufacturer5705737000006
