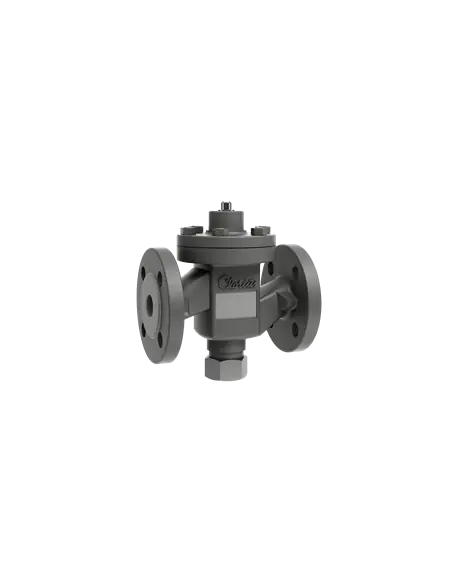

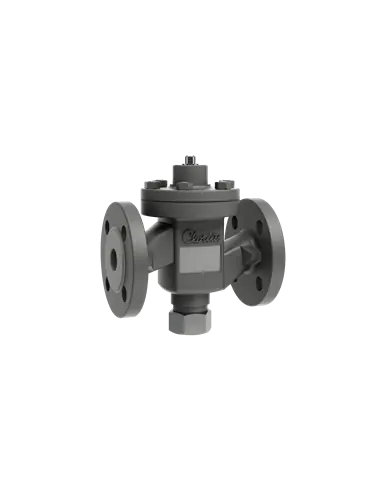

The Control Valve 2-way DN 20-80mm by Clorius Controls is a versatile and durable valve made from nodular cast iron, designed for efficient flow regulation in various applications. It is suitable for use with compressed air, cooling systems, demineralized water, heating systems, solar energy setups, and steam applications. This valve is ideal for industries requiring reliable control and management of fluid and gas flow.
Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • PN 25
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2420018VALVE G2F DN20, EN FLANGESDN205.0 KGMPN 25Flange
1-2420018GVALVE G2F DN20 CUT-THROUGH47.0 KGMPN 25
1-2420026VALVE G2F DN25, EN FLANGESDN256.5 KGMPN 25Flange
1-2420034VALVE G2F DN32, EN FLANGESDN329.0 KGMPN 25Flange
1-2420042VALVE G2F DN40, EN FLANGESDN4011.0 KGMPN 25Flange
1-2420069VALVE G2F DN50, EN FLANGESDN5016.0 KGMPN 25Flange
1-2420077VALVE G2F DN65, EN FLANGESDN6521.0 KGMPN 25Flange
1-2420086VALVE G2F DN80, EN FLANGESDN8038.0 KGMPN 25Flange
1-2420169VALVE G2F DN20 / EPOXY PRIMER5.0 KGMPN 25Flange
1-2420171VALVE G2F DN25 / EPOXY PRIMER65.0 KGMPN 25Flange
1-2420209VALVE G2F DN20, FLANGES DIN2512 FORM F5.0 KGMPN 25DIN flange
1-2420212VALVE G2F DN25, FLANGES DIN2512 FORM F55.0 KGMPN 25DIN flange
1-2420218VALVE G2F DN32, FLANGES DIN2512 FORM F55.0 KGMPN 25DIN flange
1-2420228VALVE G2F DN50, FLANGES DIN2512 FORM F16.0 KGMPN 25DIN flange
1-2420233VALVE G2F DN65, FLANGES DIN2512 FORM F55.0 KGMPN 25DIN flange
1-2420251VALVE G2F DN20, ANSI 150DN205.0 KGMClass 150ANSI flange
1-2420252VALVE G2F DN20, JIS 10KDN205.0 KGM10KJIS flange
1-2420253VALVE G2F DN25, ANSI 150DN256.5 KGMClass 150ANSI flange
1-2420254VALVE G2F DN25, JIS 10KDN256.5 KGM10KJIS flange
1-2420255VALVE G2F DN32, ANSI 150DN329.0 KGMClass 150ANSI flange
1-2420256VALVE G2F DN32, JIS 10KDN329.0 KGM10KJIS flange
1-2420257VALVE G2F DN40, ANSI 150DN4011.0 KGMClass 150ANSI flange
1-2420258VALVE G2F DN40, JIS 10KDN4011.0 KGM10KJIS flange
1-2420259VALVE G2F DN50, ANSI 150DN5016.0 KGMClass 150ANSI flange
1-2420260VALVE G2F DN50, JIS 10KDN5016.0 KGM10KJIS flange
1-2420261VALVE G2F DN65, ANSI 150DN6521.0 KGMClass 150ANSI flange
1-2420262VALVE G2F DN65, JIS 10KDN6521.0 KGM10KJIS flange
1-2420263VALVE G2F DN80, ANSI 150DN8038.0 KGMClass 150ANSI flange
1-2420264VALVE G2F DN80, JIS 10KDN8038.0 KGM10KJIS flange
1-2420265VALVE G2F DN20, JIS 5KDN205.0 KGM5KJIS flange
1-2420266VALVE G2F DN20, JIS 16KDN205.0 KGM16KJIS flange
1-2420267VALVE G2F DN25, JIS 5KDN256.5 KGM5KJIS flange
1-2420268VALVE G2F DN25, JIS 16KDN256.5 KGM16KJIS flange
1-2420269VALVE G2F DN32, JIS 5KDN329.0 KGM5KJIS flange
1-2420270VALVE G2F DN32, JIS 16KDN329.0 KGM16KJIS flange
1-2420271VALVE G2F DN40, JIS 5K11.0 KGM5KJIS flange
1-2420272VALVE G2F DN40, JIS 16KDN4011.0 KGM16KJIS flange
1-2420273VALVE G2F DN50, JIS 5KDN5016.0 KGM5KJIS flange
1-2420274VALVE G2F DN50, JIS 16KDN5016.0 KGM16KJIS flange
1-2420275VALVE G2F DN65, JIS 5KDN6521.0 KGM5KJIS flange
1-2420276VALVE G2F DN65, JIS 16KDN6521.0 KGM16KJIS flange
1-2420277VALVE G2F DN80, JIS 5KDN8038.0 KGM5KJIS flange
1-2420278VALVE G2F DN80, JIS 16KDN8038.0 KGM16KJIS flange
1-2421049VALVE G2F DN25 FLANGES R13-V1365.0 KGMPN 25Flange
1-2421057VALVE G2F DN32 FLANGES R13-V139.0 KGMPN 25Flange
1-2421065VALVE G2F DN40 FLANGES R13-V1311.0 KGMPN 25Flange

t. No.

Size

d

L

H1

H

1-2420018DN203/4" (DN20)150.085.0
1-2420018GDN20
1-2420026DN251" (DN25)160.095.0
1-2420034DN321 1/4" (DN32)180.0105.0
1-2420042DN401 1/2" (DN40)200.0110.0
1-2420069DN502" (DN50)230.0125.0
1-2420077DN652 1/2" (DN65)29.0135.0
1-2420086DN803" (DN80)310.0145.0
1-24201693/4" (DN20)
1-24201711" (DN25)
1-24202093/4" (DN20)
1-24202121" (DN25)
1-24202181 1/4" (DN32)
1-24202282" (DN50)
1-24202332 1/2" (DN65)
1-2420251DN203/4" (DN20)150.085.0
1-2420252DN203/4" (DN20)150.085.0
1-2420253DN251" (DN25)160.095.0
1-2420254DN251" (DN25)160.095.0
1-2420255DN321 1/4" (DN32)180.0105.0
1-2420256DN321 1/4" (DN32)180.0105.0
1-2420257DN401 1/2" (DN40)200.0110.0
1-2420258DN401 1/2" (DN40)200.0110.0
1-2420259DN502" (DN50)230.0125.0
1-2420260DN502" (DN50)230.0125.0
1-2420261DN652 1/2" (DN65)290.0135.0
1-2420262DN652 1/2" (DN65)290.0135.0
1-2420263DN803" (DN80)310.0145.0
1-2420264DN803" (DN80)310.0145.0
1-2420265DN203/4" (DN20)150.085.0
1-2420266DN203/4" (DN20)150.085.0
1-2420267DN251" (DN25)160.095.0
1-2420268DN251" (DN25)160.095.0
1-2420269DN321 1/4" (DN32)180.0105.0
1-2420270DN321 1/4" (DN32)180.0105.0
1-24202711 1/2" (DN40)200.0110.0
1-2420272DN401 1/2" (DN40)200.0110.0
1-2420273DN502" (DN50)230.0125.0
1-2420274DN502" (DN50)230.0125.0
1-2420275DN652 1/2" (DN65)290.0135.0
1-2420276DN6516" (DN400)290.0135.0
1-2420277DN803" (DN80)310.0145.0
1-2420278DN803" (DN80)310.0145.0
1-24210491" (DN25)
1-24210571 1/4" (DN32)
1-24210651 1/2" (DN40)

Characteristics

Manufacturer5705737000006
