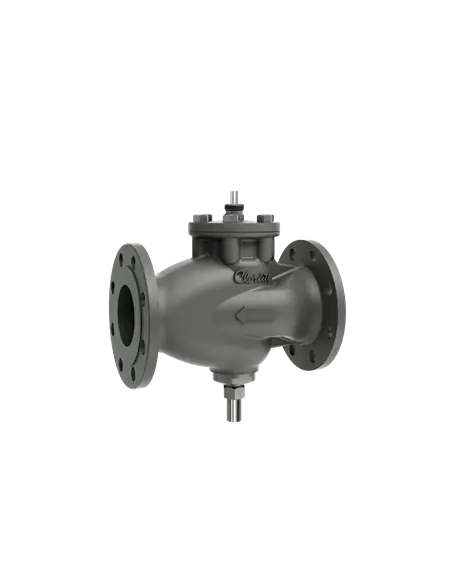

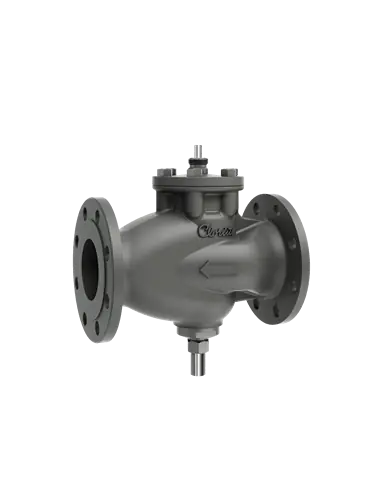

The Control Valve 2-way DN 100-150 Reverse Acting by Clorius Controls is a robust and versatile valve designed for cooling applications. Constructed from durable cast iron, this valve is suitable for a range of applications including compressed air, cooling, demi water, heating, solar energy, and steam systems. Its reverse acting mechanism ensures precise control and reliability in various industrial and commercial settings.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • EN-GJS-400-15 (Nodular Cast Iron)
Pressure Rating (Options)
  • 150 lbs
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2220245RVALVE M2FR DN125522.0 KGMPN 16Flange
1-2220385VALVE M2FR DN100, EN FLANGESDN10039.0 KGMPN 16Flange
1-2220407VALVE M2FR DN125, EN FLANGESDN12553.0 KGMPN 16Flange
1-2220423VALVE M2FR DN150, EN FLANGESDN15073.0 KGMPN 16Flange
1-2220431VALVE M2FR DN100 KVS 125, LEAK DRILL39.0 KGMPN 16Flange
1-2221212VALVE M2FR DN125, ANSI 150DN15053.0 KGMClass 150ANSI flange
1-2221217VALVE M2FR DN100, ANSI 150DN10039.0 KGMClass 150ANSI flange

Art. No.

Size

d

L

H1

H

1-2220245R5" (DN125)
1-2220385DN1004" (DN100)350.0145.0
1-2220407DN1255" (DN125)400.0160.0
1-2220423DN1506" (DN150)400.0180.0
1-22204314" (DN100)
1-2221212DN1505" (DN125)400.0160.0
1-2221217DN1004" (DN100)350.0145.0

Characteristics

Manufacturer5705737000006
