Technical Specifications
- Material: stainless steel, plastic
- Colour: green
- Dimensions (H x W): 210 x 400 mm
- Operating pressure: 2.5 to 5 bar
- Flow rate: 14 litres / minute
- Water inlet: ¾“ female
Norms / Approvals
- EN 15154-2:2006
- ANSI Z358.1-2014
- DIN-DVGW, NW-0417CL0263
- GOST-R, Certificate-No. 0615463 0615463
Product description

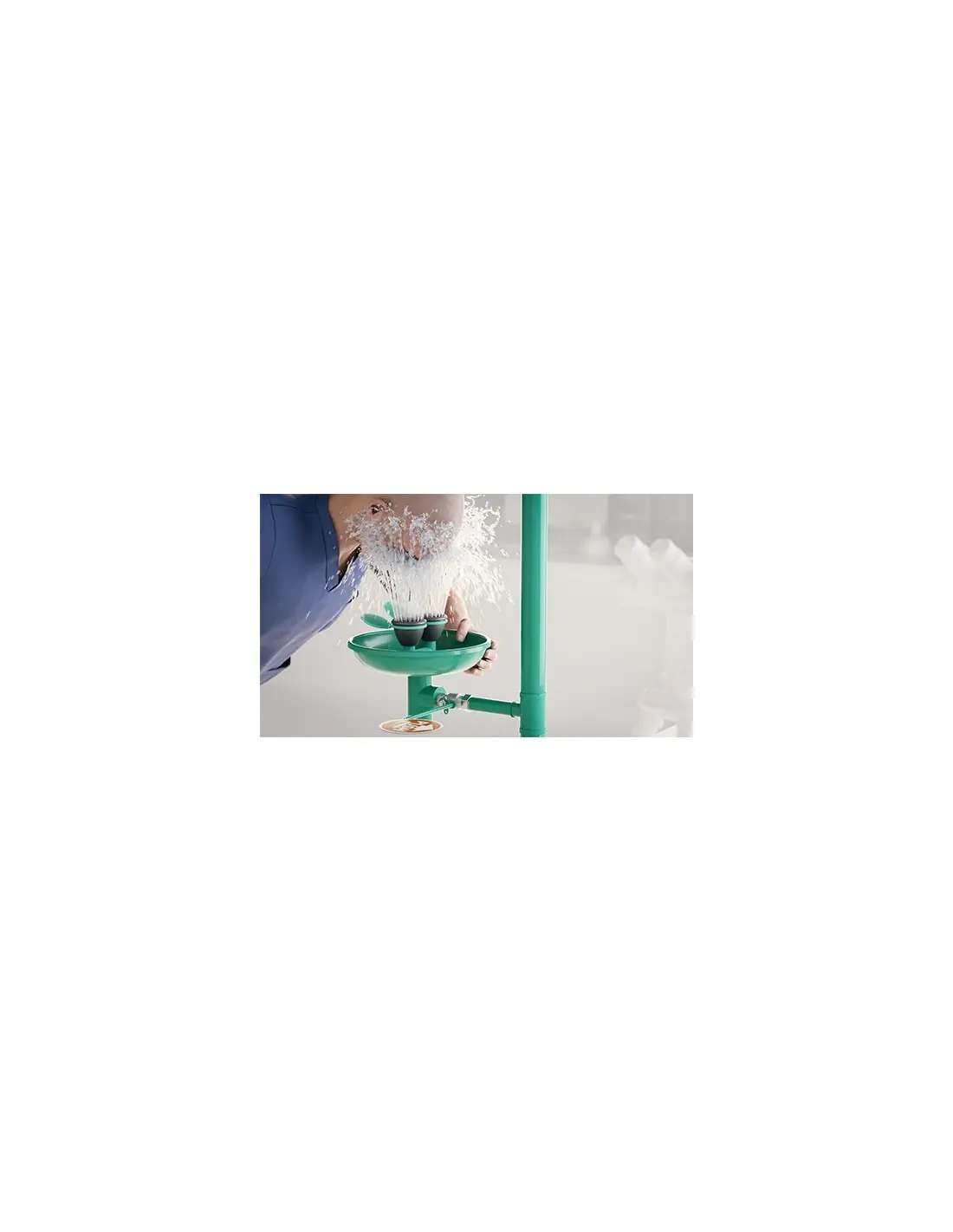

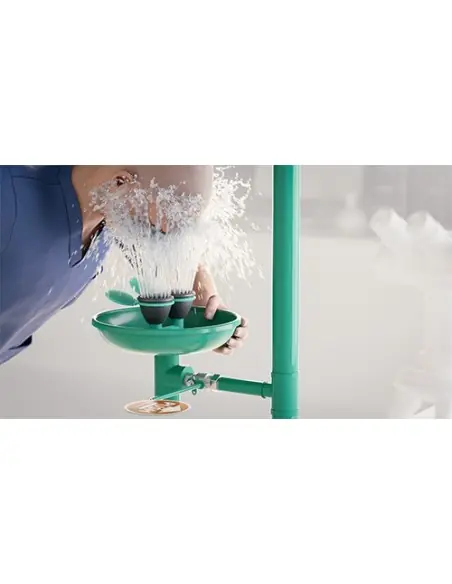

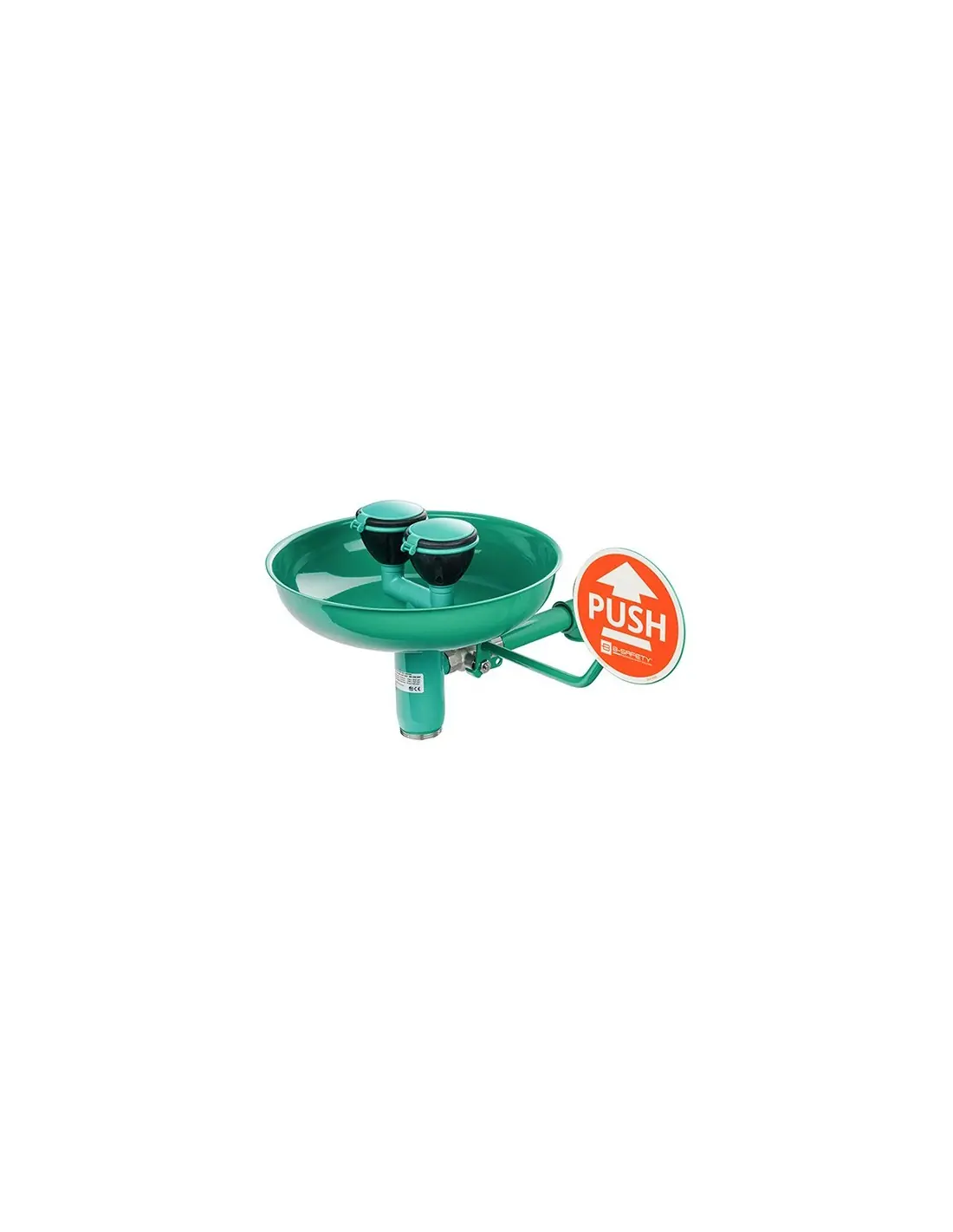

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.
The correct spray height and a standard-compliant spray pattern are achieved by the integrated flow regulator, regardless of the water pressure applied. The rubber sleeves around the shower head protect the person seeking help from impact injuries. Dust caps on the shower head protect against contamination and open automatically when the eye shower is actuated by the water pressure The large holes in the shower heads prevent standing water and thus calcification.

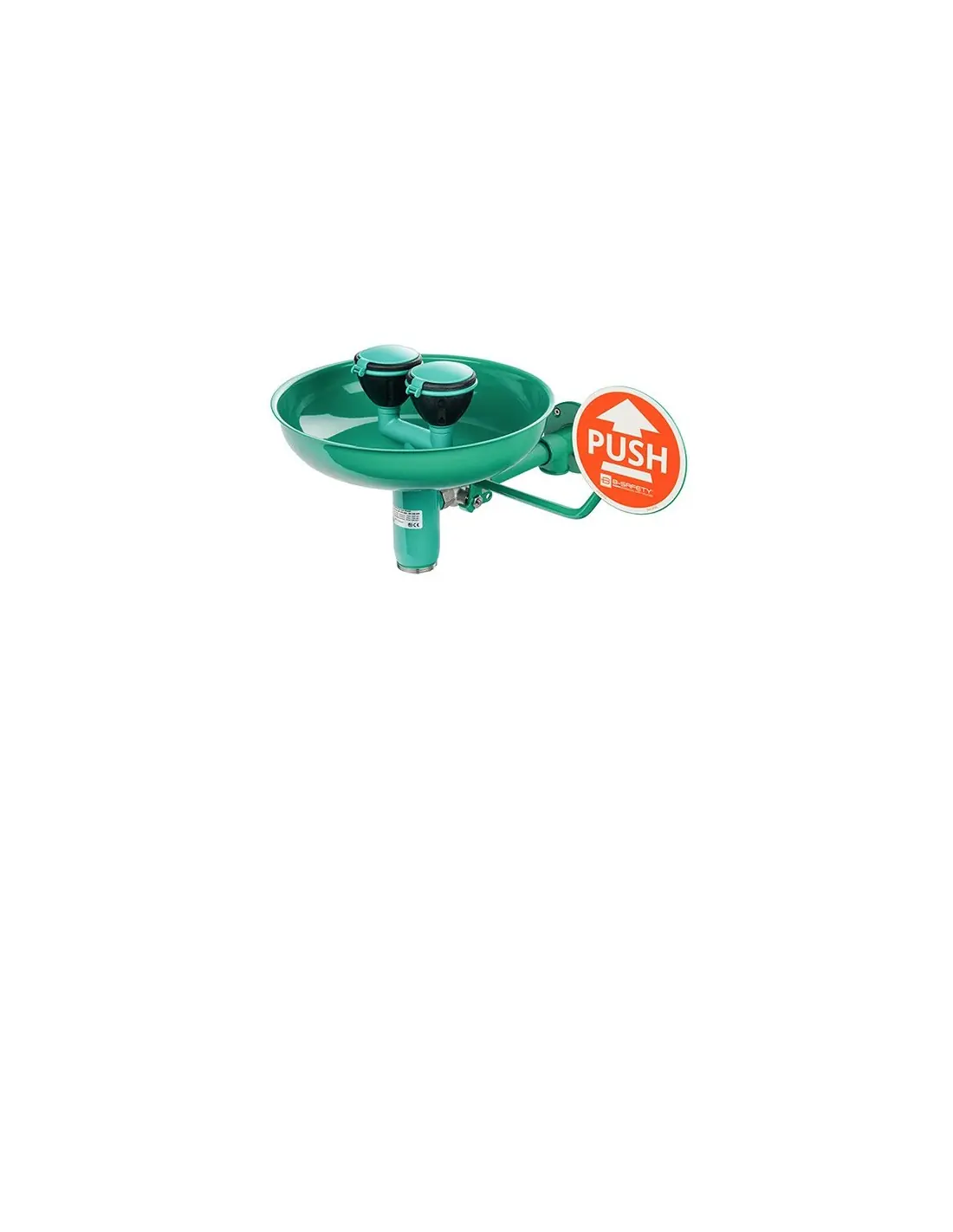

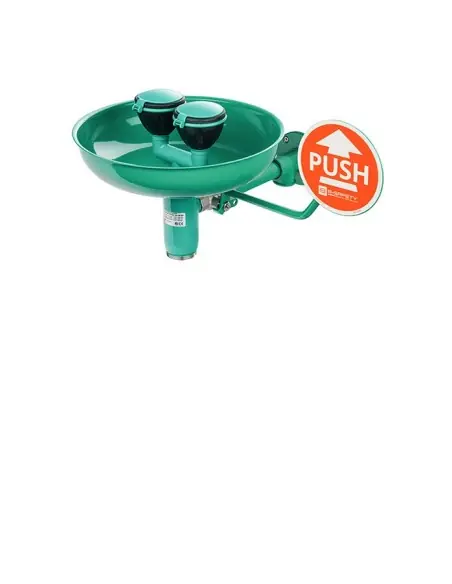

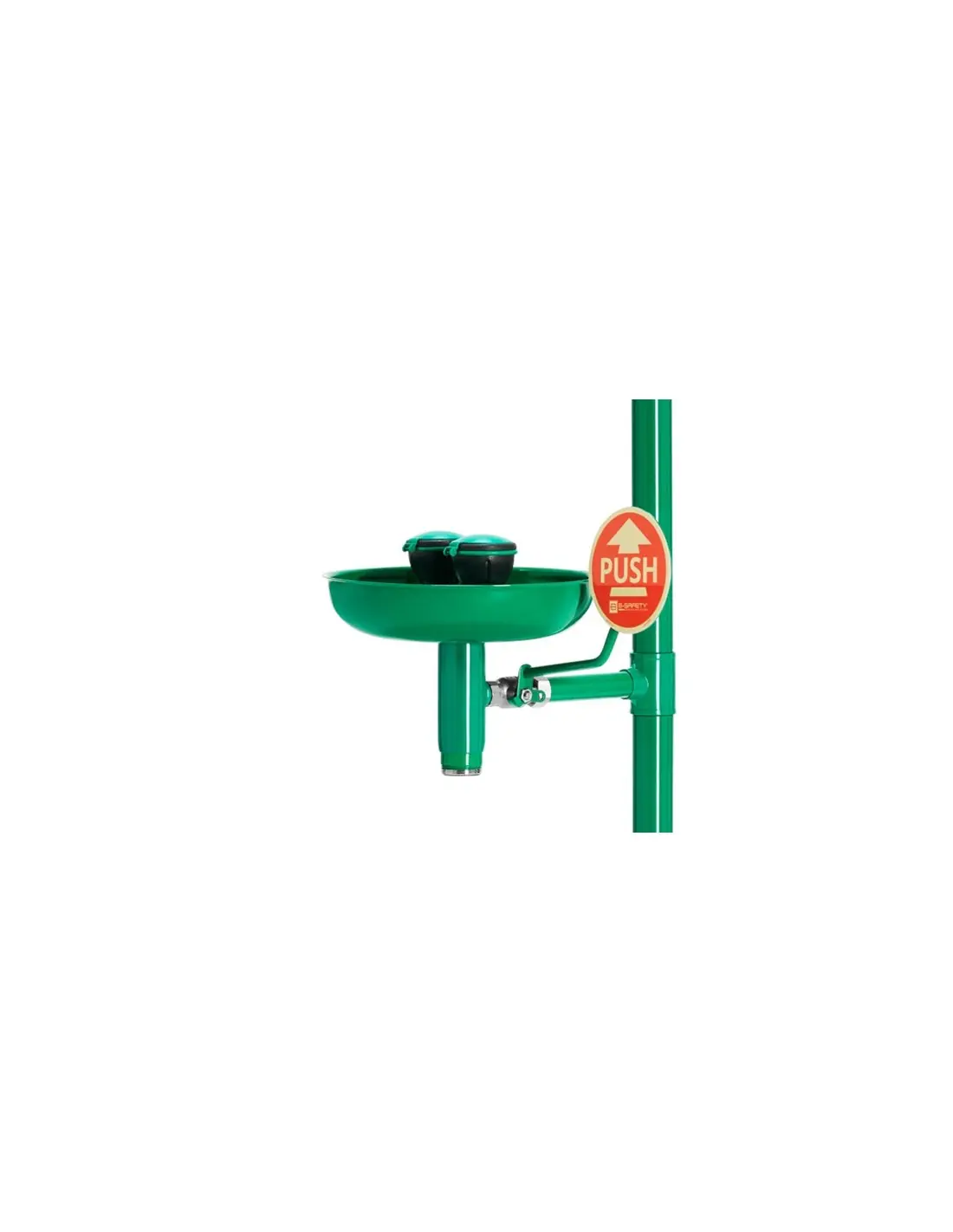

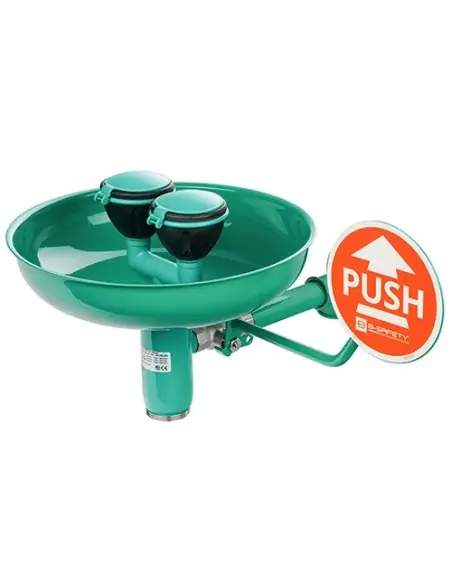

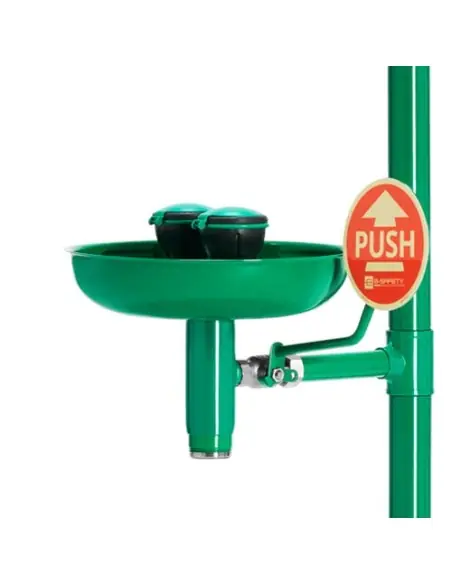

Technical Description
- wall flange with 4 mounting holes made of stainless steel, chemical resistant green powder coated, water inlet ¾” female
- connection pipe of stainless steel for easy installation and alignment of the shower, chemical resistant green powder coated
- ball valve ½” of stainless steel, with PUSH-lever actuation, DIN-DVGW tested and certificated
- big push plate made of steel, chemical resistant green powder coated, length 240 mm, with large signal “PUSH”, luminescent according to DIN 67510
- integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2.5 to 5 bar flow pressure

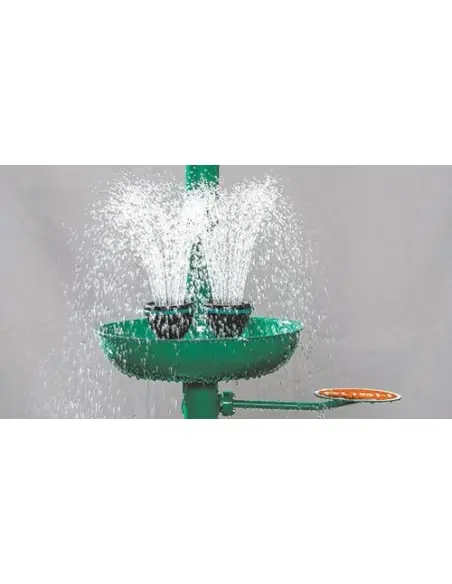

- high-performance spray heads for large-scale dispersion of water, with plastic spray plate, low calcification, incl. rubber sleeves and sealed dust caps, mounted over distributor fork
- bowl made of plastic, green, diameter 275 mm, water outlet 1 ¼” male
- sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
- height 210 mm, projection 425 mm, total width incl. lever 400 mm
- mounting height 860 mm (± 200 mm)
- according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
- according to ANSI Z358.1-2014 and EN 15154-2:2006
- DIN-DVGW tested and certificated
