- ASR type: Spring return or ADA type: Double acting
- Rack and pinion design
- Rotation angle 90º ± 5º(by means of external travel stops)
- Antifriction sliding bearings
- Long life without maintenance
- Working temperature:
- -30 ºC to 100 ºC in Standard Construction
- -15 ºC to 150 ºC with FKM O-rings (high temperature execution)
- -40 ºC to 80 ºC with Silicone O-rings (low temperature execution)
- -60 ºC to 80 ºC with Silicone O-rings and 316 pinion (extreme low temperature)
- Maximum working pressure: 8 bar (120 psig)
- Total safety for spring replacement
- Mounting of solenoid valves acc. NAMUR Std
- Mounting of devices acc. NAMUR VDI/VDE 3845 Std
- Coupling according to ISO 5211 and DIN 3337
- Position indicator can be used also to operate mechanical limit switches or proximity detectors
- Options on request:
- Fast acting
- Stroke limiters
- Epoxy coated body
- Electroless Nickel Plated body and end caps
- Locking Device
- Fully traceability of critical components (body, stem, pistons, end caps)
- Anti blow up stem

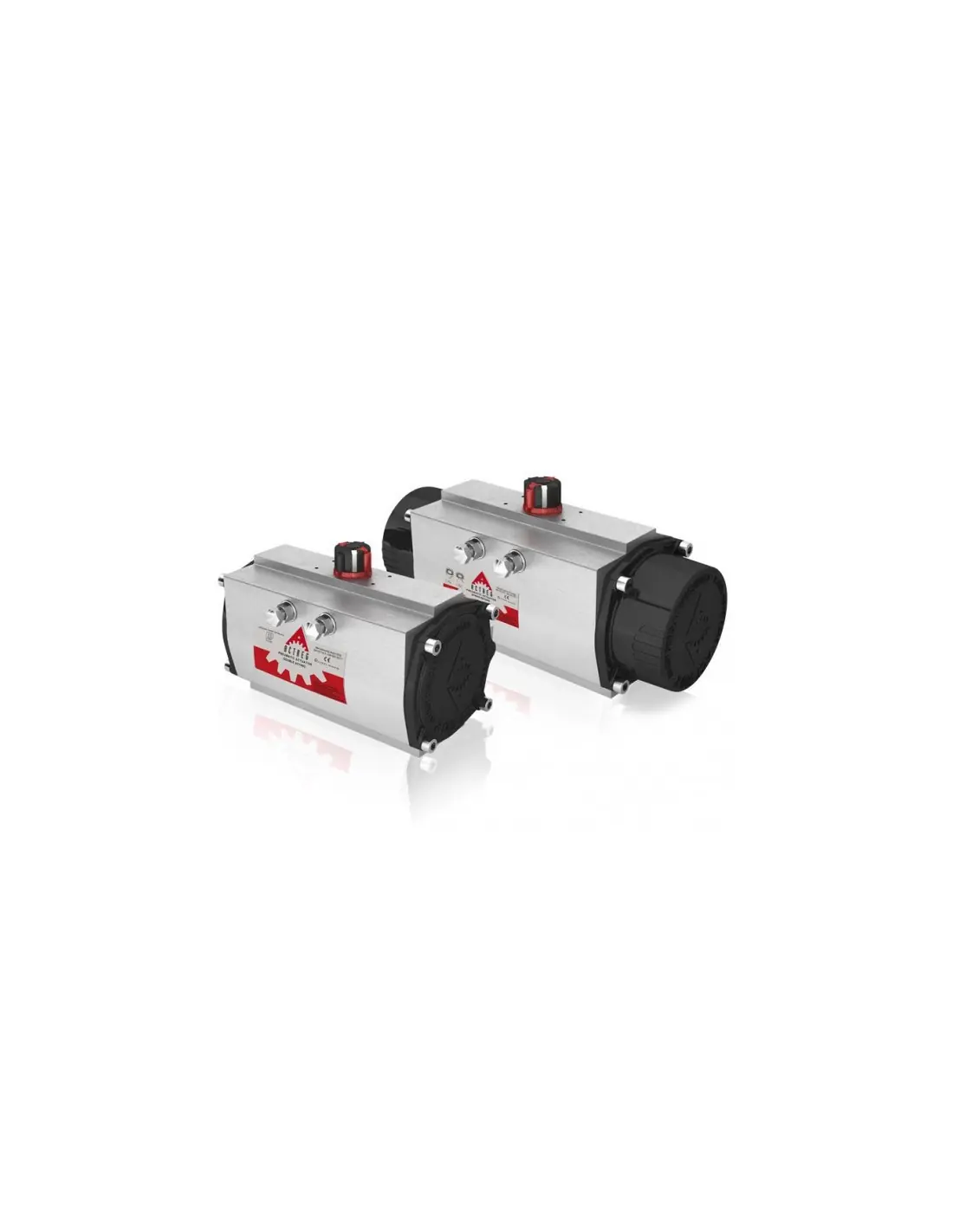

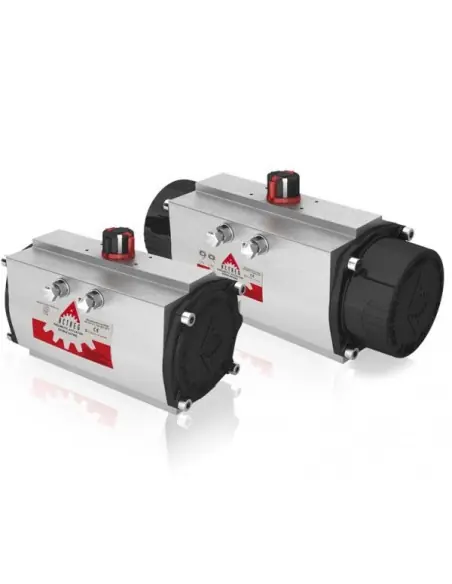

Pneumatic rotary actuator - ADA / ASR | Actreg
The Actreg Pneumatic Rotary Actuator, available in ADA (Double Acting) and ASR (Spring Return) types, features a robust rack and pinion design with a 90º ± 5º rotation angle, adjustable via external travel stops. It is engineered for durability with antifriction sliding bearings, ensuring long life without maintenance. The actuator operates efficiently across a wide temperature range, from -30 ºC to 100 ºC in standard construction, with options for extreme temperatures using specialized O-rings. It supports a maximum working pressure of 8 bar (120 psig) and offers total safety for spring replacement. The actuator is compatible with solenoid valves and devices per NAMUR standards and allows coupling according to ISO 5211 and DIN 3337. A position indicator is included for operating mechanical limit switches or proximity detectors. Optional features include fast acting, stroke limiters, epoxy or nickel-plated coatings, and a locking device. The actuator ensures full traceability of critical components and includes an anti-blow-up stem for enhanced safety.
