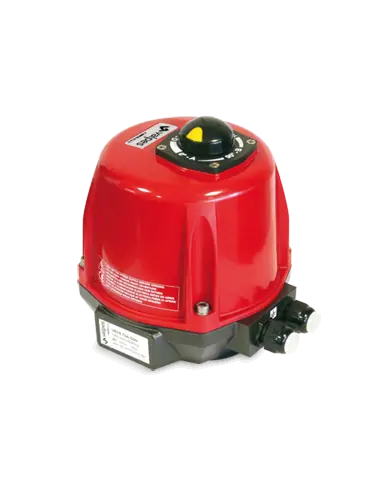

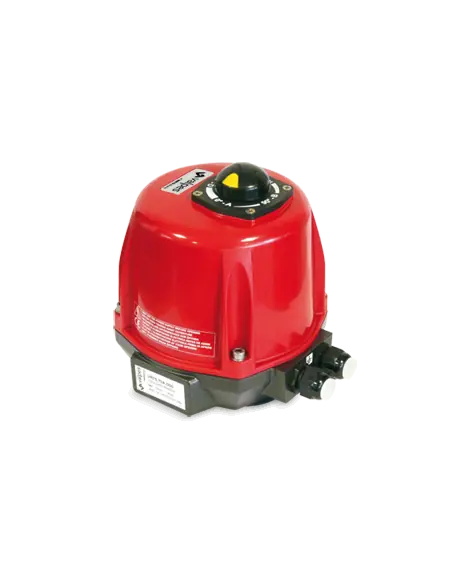

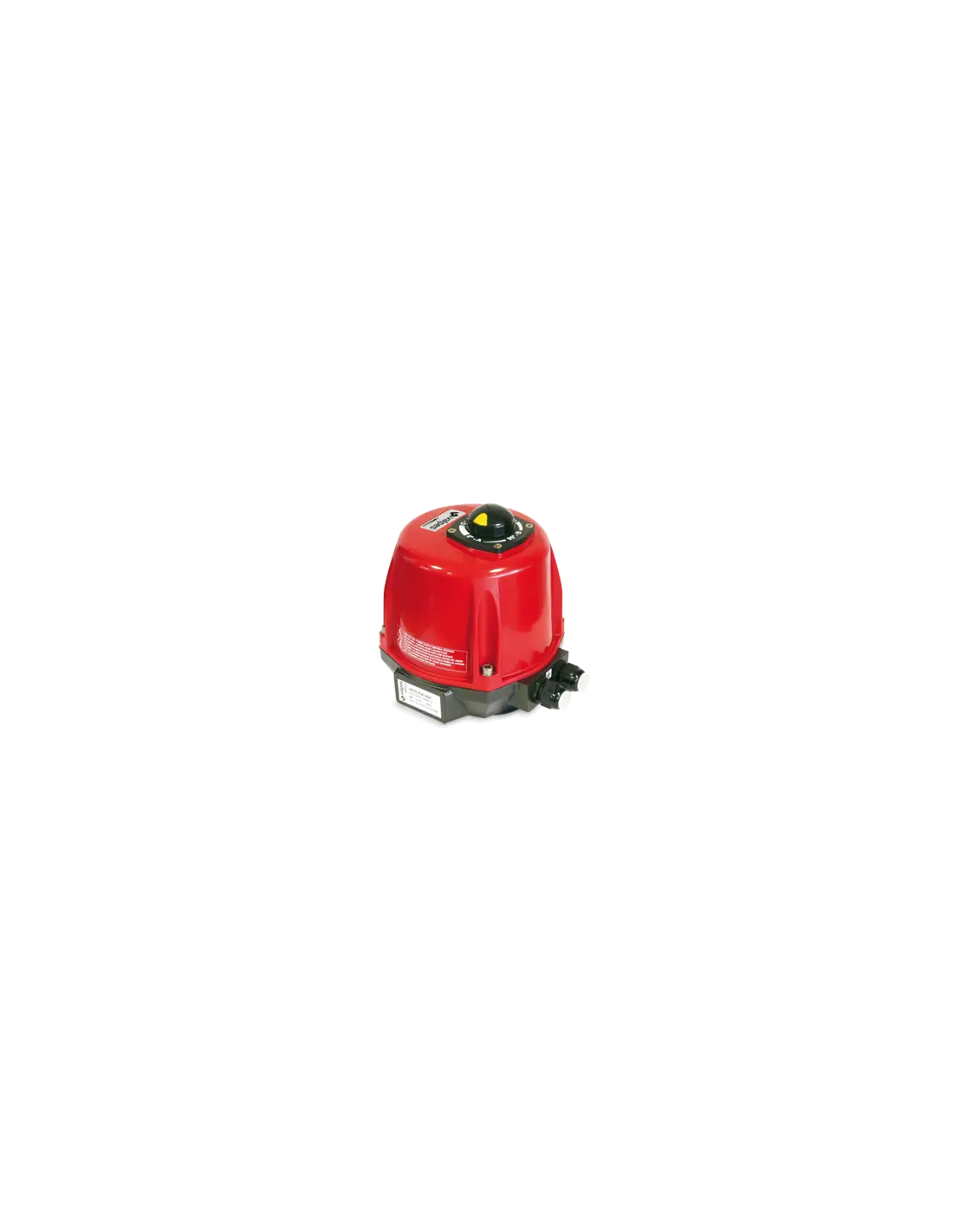

The Electric Actuator - VR by Valpes is a robust and versatile device designed for various industrial applications. It features an aluminum housing with an optional polyamide PA6 UL 94 V-0 or aluminum cover, providing manual override via an external shaft. The actuator supports torques ranging from 25 to 75Nm and complies with CE-ROHS-REACH Directives. It is available in standard 90° and optional 180° or 270° versions, including a marine application version with a high durability coating and a 15-year warranty. The actuator offers multiple functionalities, such as emergency backup (BBPR), proportional control (POSI), and Bluetooth® connectivity, among others. It supports multivoltage inputs, including 100V to 240V AC, 15V to 30V AC, and 3-phase 400V AC. Key features include adjustable limit switches, a visual position indicator, a regulated anticondensation heater, and a torque limiter monitored by software. It is rated for IP68 protection, ensuring durability in harsh environments, and operates within a temperature range of -20°C to +70°C. The actuator is lightweight, weighing between 3.1Kg and 4.4Kg, and includes ISO M20 cable entries with optional adapters.

Protection (Options)
  • IP 68
Voltage (Options)
  • 24V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 400V 50/60Hz
  • 24V to 48V DC
  • 100V to 350V DC

Datasheet and documents

Description

DESCRIPTION

Electric actuator, aluminium housing and polyamide PA6 UL 94 V-0 or aluminium (option) cover with manual override by external shaft, for torques from 25 to 75Nm and in accordance with CE-ROHS-REACH Directives

VERSIONS

  • 90° standard version and 180° or 270° version (on request)
  • Version for marine applications. High durability coating, 15-year warranty
  • Available with:

        BBPR - emergency backup

        POSI - proportional control

        3 POSITIONS

        POSI-BBPR

        3-POSITION-BBPR

        BLUETOOTH®

        Modbus-RTU

TECHNICAL DATA

  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 350V DC)

          15V to 30V 50/60Hz (12V to 48V DC)

          3-phase 50/60Hz 400V (not CSA)

  • 3 modulating points control or on-off (400V: 3 modulating points control)
  • 4 adjustable limit switches 5A
  • Connection F05/F07 according to ISO5211 standard
  • Removable star drive
  • Manual override
  • Visual position indicator
  • Regulated anticondensation heater
  • Torque limiter monitored by software (except 400V)
  • Failure feedback relay (normal duty, failure) (except 400V)
  • RS485 connection (except 400V)
  • Mechanical limit stops
  • Duty rating: S4 50% (CEI34)
  • Working temperature: -20°C to +70°C
  • Enclosure:

           IP68 2m / 72h (with plastic cover)

           IP68 5m / 72h (with aluminium cover)

  • Weight: 3.1Kg - 4.4Kg
  • 2x ISO M20 Kabelverschraubung (ISO - NPT adapters available as option)
