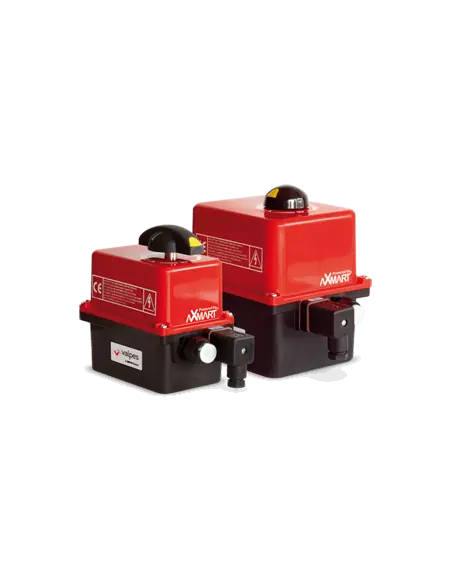

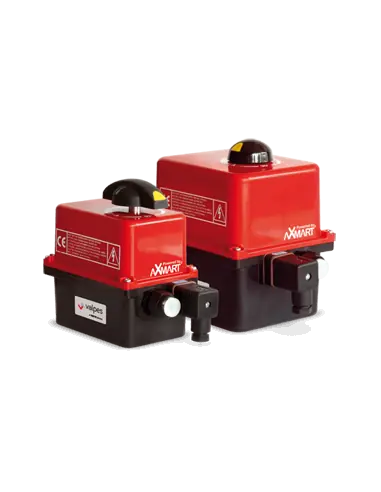

The Electric Actuator - ER PLUS by Valpes is a versatile 90° electric actuator designed for various industrial applications. It features a robust PA6 housing with UL 94 V-0 rating and a secured manual override, suitable for torque ranges of 10-100Nm. Compliant with CE, ROHS, and REACH directives, it offers multiple versions, including standard and long operating time options, and supports different rotation angles. The actuator is available with additional functionalities such as emergency backup (BBPR), proportional control (POSI), 3-position control, Bluetooth connectivity, and Modbus-RTU communication. It operates on a multivoltage range, supports on-off or 3 modulating points control, and includes features like adjustable limit switches, a modular position indicator, and an integrated anticondensation heater. The ER PLUS is designed for reliability with a torque limiter, failure feedback relay, and mechanical travel stops, all housed in an IP66 enclosure suitable for temperatures from -10°C to +55°C.

Protection (Options)
  • IP 66
Voltage (Options)
  • 24V to 30V AC 50/60Hz
  • 100V to 240V AC 50/60Hz
  • 24V to 48V DC
  • 100V to 350V DC

Datasheet and documents

Description

DESCRIPTION

90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

  • Standard version from 6s to 20s for 90° (without load)
  • Long operating time version from 34s to 110s for 90° (without load)
  • Different possible rotation angles
  • Available with:

        BBPR - emergency backup

        POSI - proportional control

        3 POSITIONS

        BLUETOOTH®

        Modbus-RTU

TECHNICAL DATA

  • Multivoltage actuator:

          100V to 240V 50/60Hz (100V to 350V DC)

          15V to 30V 50/60Hz (12V to 48V DC)

  • On-off or 3 modulating points control
  • 4 adjustable limit switches 5A
  • Removable adaptation plates:

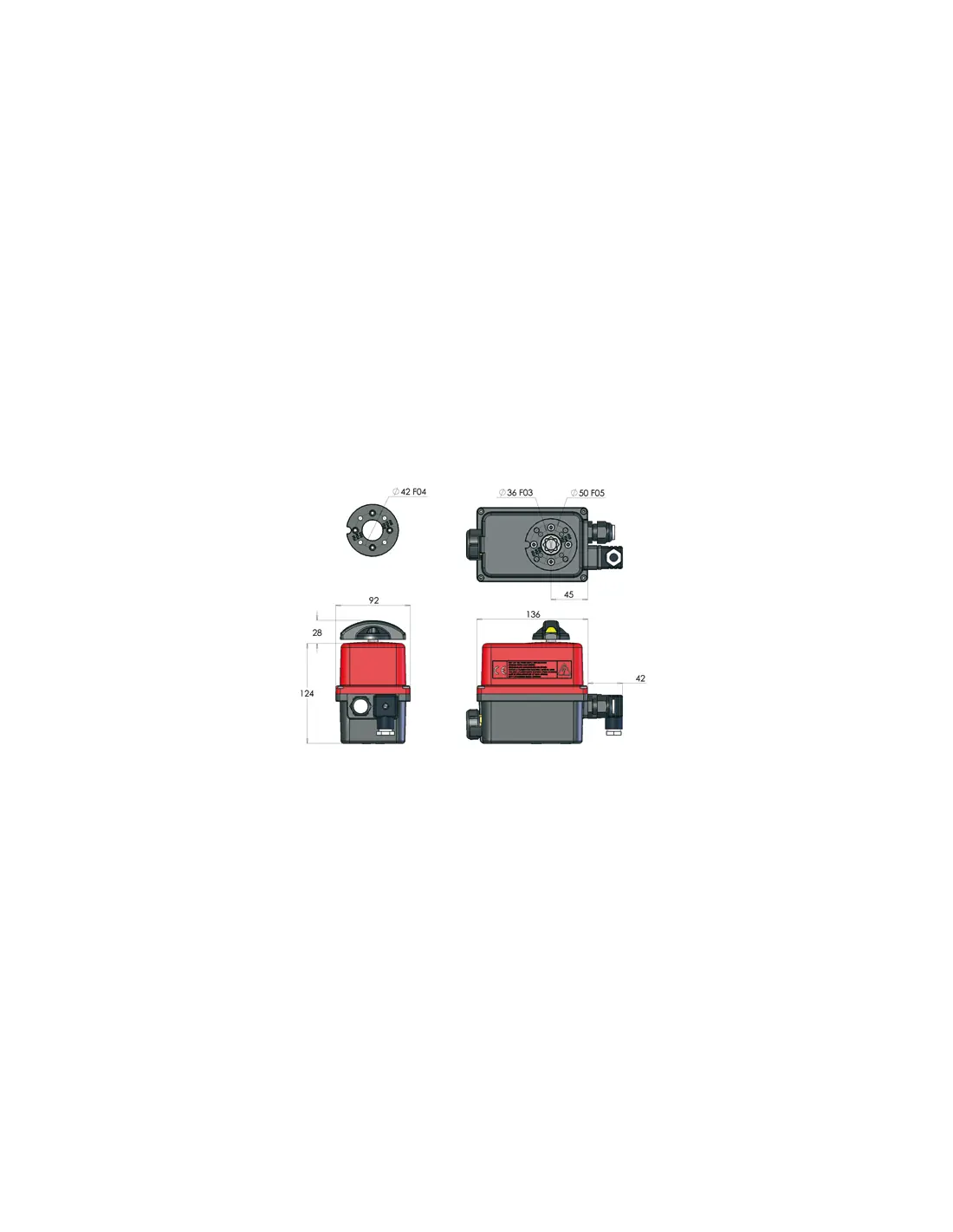

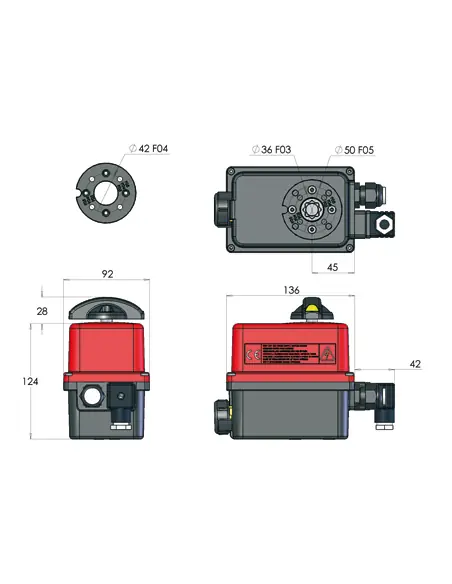

          ER 10-35Nm: F03-F04-F05

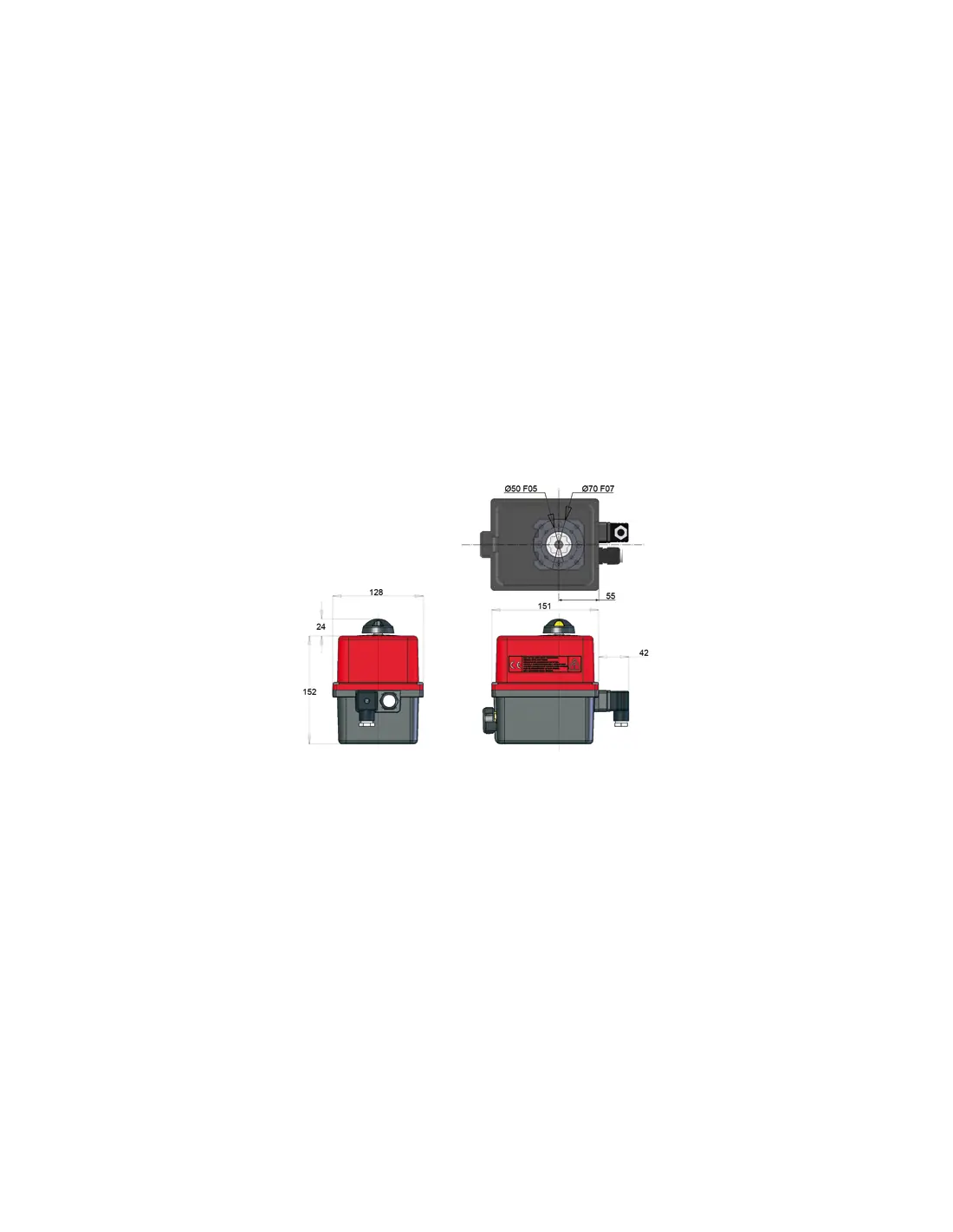

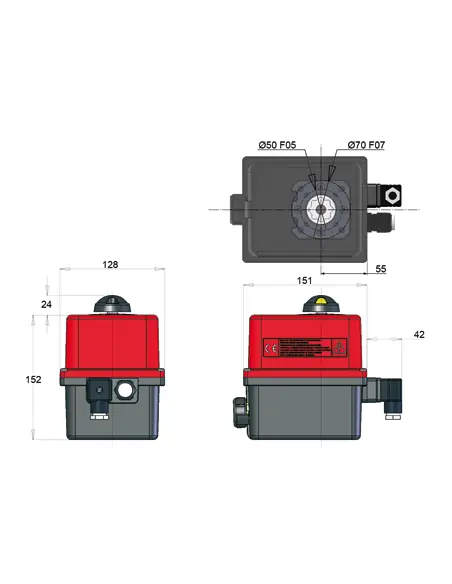

          ER 35-100Nm: F05-F07

  • Star drive nut
  • Secured manual override
  • Modular position indicator
  • Integrated anticondensation heater
  • Torque limiter monitored by software
  • Failure feedback relay (normal duty, failure)
  • RS485 connection
  • Mechanical travel stops at 90°
  • Duty rating S4 50% (IEC34)
  • Temperature: -10°C to +55°C
  • Enclosure: IP66
  • Weight: 1Kg - 2.1Kg
  • 1 3P+T DIN43650 connector + 1 ISO M20 (ISO - NPT adapters available as option)
