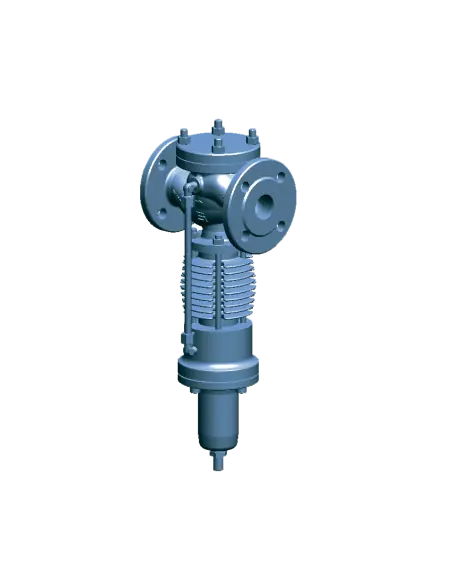

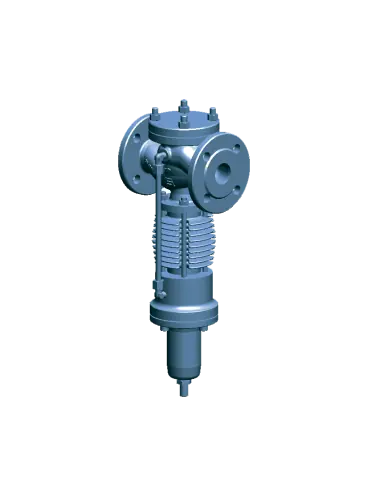

The REH20L by Miyawaki is a pressure reducing valve specifically designed for steam applications. It features a pulse line, which enhances its ability to maintain precise pressure control by responding to fluctuations in the steam system. This valve is engineered for reliability and efficiency, ensuring optimal performance in industrial settings where steam pressure regulation is critical. Its robust construction and advanced design make it suitable for a wide range of steam pressure reduction tasks.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • Cast Steel
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 100

Description

Features

Pressure reducing valves for steam

These are automatic valves that reduce the steam supply pressure to the certified pressure for the device in use, and keep it steady.

Due to carefully selected springs a wide range of pressure applications is available.

As option the valve can be equipped with a pressure gauge on the valve body.

Operating features of direct acting pressure reducing valves

Pressure changes on the secondary side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the secondary side at a set level.

Maximum pressure reduction ratio 25:1

Uses

Perfect for cleaning devices, foodstuff devices, and other forms of compact steam equipment.

Dimensions/Weight

Size

(DN)

Dimensions (mm)

Kvs

value

Weight

(kg)

LHh
PN40PN63-100
15130210435821,814,5
20150230663,214,5
25160230665,016,5
32180260817,918,5
402002608313,022,0
5023030064710020,037,5
6529034069011334,049,0
8031038082814051,065,0
10035043085015480,091,0
125400 715210130,0155,0
150480 720235180,0190,0
200600 950285320,0385,0

Specifications

Body Material

Cast steel

GP240GH

(GS-C25,1.0619))

Body design conditions

 PN16   PN25   PN100
Max. design pressure (MPa)           PMA4,06,310,0
Max. design temperature (℃)        TMA400400400
Max. operating pressure (MPa)     PMO2,84,06,4
Max. operating temperature (℃)  TMO400400400

Pressure - Temperature rating

PNTemperature ℃
-10･･･+50100150200250300350400
Pressure MPa
PN164,03,73,53,12,82,62,42,3
PN256,35,95,54,94,54,13,83,6
PN10010,09,38,77,87,16,46,05,8

Secondary pressure ranges

Secondary

pressure range

DN15-DN40DN50DN65DN80DN100DN125-DN200
MPaSpring number per size
0,05-0,1626263737On request
0,1-0,16525253636
0,16-0,25424243535
0,25-0,432323

34

34
0,4-0,63222223333
0,63-1,0121213232

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.

Capacity Chart
