Pressure reducing valve - With Pulse line for steam - REH20L-M | Miyawaki

Name: Pressure reducing valve - With Pulse line for steam - REH20L-M | Miyawaki
Brand: Miyawaki
SKU: Pressure reducing valve - With Pulse line for steam - REH20L-M | Miyawaki

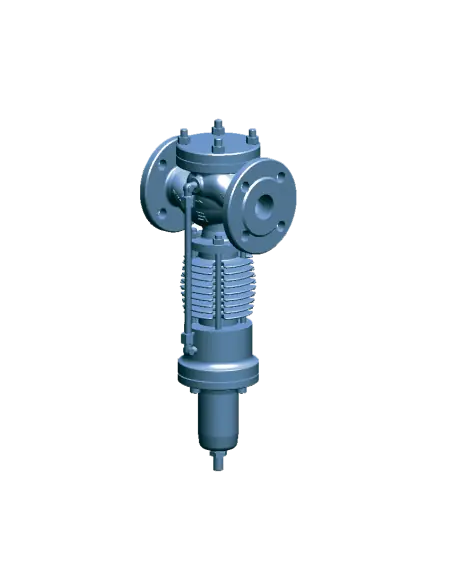

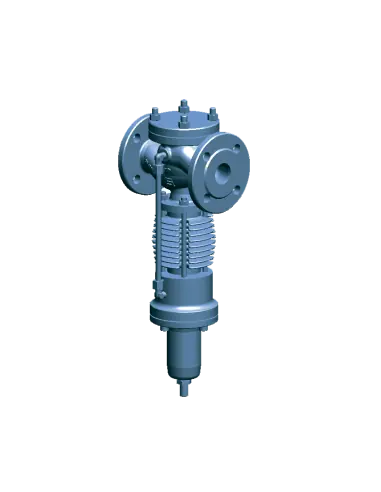

The REH20L-M by Miyawaki is a pressure reducing valve specifically designed for steam applications. It features a pulse line, which enhances its ability to maintain precise pressure control by responding to changes in downstream pressure. This valve is engineered for reliability and efficiency, ensuring optimal performance in steam systems by reducing and stabilizing pressure to the desired level. Its robust construction and advanced design make it suitable for various industrial applications where steam pressure regulation is critical.

Standard (Options)

Connection (Options)

Flanged

Material (Options)

1.7357
GS 17 CrMo 55
Cast Steel

Pressure Rating (Options)

PN 63
PN 100

Description

Features

Pressure reducing valves for steam

These are automatic valves that reduce the steam supply pressure to the certified pressure for the device in use, and keep it steady.

Due to carefully selected springs a wide range of pressure applications is available.

As option the valve can be equipped with a pressure gauge on the valve body.

Operating features of direct acting pressure reducing valves

Pressure changes on the secondary side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the secondary side at a set level.

Maximum pressure reduction ratio 25:1

Uses

Perfect for cleaning devices, foodstuff devices, and other forms of compact steam equipment.

Dimensions/Weight

Size (DN)	Dimensions (mm)			Kvs Value
Size (DN)	L	H	h	Kvs Value
15	210	435	82	1,8
20	230		66	3,2
25	230		66	5,0
32	260		81	7,9
40	260		83	13,0
50	300	647	100	20,0
65	340	690	113	34,0
80	380	828	140	51,0
100	430	850	154	80,0

Specifications

Body Material

Cast steel

G17CrMo 5-5

(1.7357)

Body design conditions

	PN63	PN100
Max. design pressure (MPa) PMA	6,3	10,0
Max. design temperature (℃) TMA	530	530
Max. operating pressure (MPa) PMO	5,7	8,4
Max. operating temperature (℃) TMO	530	530

Pressure - Temperature rating

PN	Temperature ℃
	-10･･･+50	100	150	200	250	300	350	400	450	500	550
	Pressure MPa
PN63	6,3	6,3	6,3	6,3	6,2	5,7	5,3	5,0	4,8	3,8	2,2
PN100	10,0	10,0	10,0	10,0	9,8	9,1	8,4	8,0	7,6	6,1	3,5

Secondary pressure ranges

Secondary pressure range	DN15-DN40	DN50	DN65	DN80	DN100	DN125-DN200
MPa	Spring number per size
0,05-0,1	6	26	26	37	37	On request
0,1-0,16	5	25	25	36	36
0,16-0,25	4	24	24	35	35
0,25-0,4	3	23	23	34	34
0,4-0,63	2	22	22	33	33
0,63-1,0	1	21	21	32	32

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.
