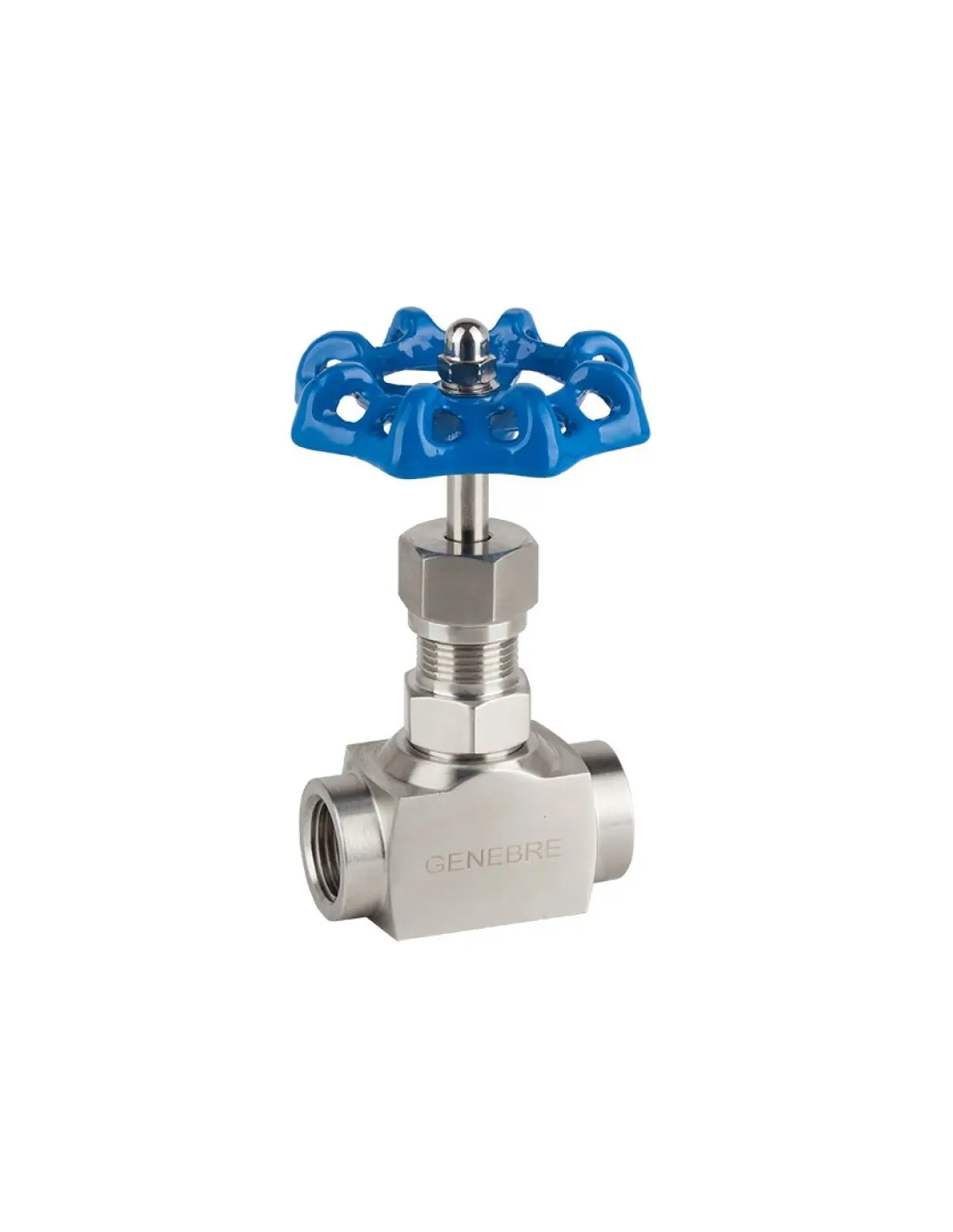

Needle valve 3000 Lbs - 2223 | Genebre
Needle valve 3000 Lbs - 2223 | Genebre

Needle valve 3000 Lbs - 2223 | Genebre

The Needle Valve 3000 Lbs - 2223 by Genebre is a high-quality valve designed for precise flow control in various industrial applications. It is constructed to withstand pressures up to 3000 pounds per square inch, making it suitable for high-pressure environments. The valve features a robust design with a fine-threaded stem that allows for accurate flow regulation. Its durable materials ensure longevity and reliability, while the compact design facilitates easy installation and maintenance. Ideal for use in industries such as oil and gas, chemical processing, and power generation, the Genebre Needle Valve 2223 is a dependable choice for controlling fluid flow with precision.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • ASTM A182 F316
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 206

Datasheet and documents

Description

Construction: stainless steel A182 F316/needle stainless steel A182 F316 + heat treatment. Gas thread ISO 228-1 F-F. Stem packing PTFE. Max. working pressure 210 bar. Working temperature -20ºC to 250ºC.

Reference: 2223

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2223 02NEEDLE VALVE GAS THREAD 1/4"10.3188/32
2223 03NEEDLE VALVE GAS THREAD 3/8"10.4158/48
2223 04NEEDLE VALVE GAS THREAD 1/2"10.5656/36
2223 05NEEDLE VALVE GAS THREAD 3/4"10.8256/24
2223 06NEEDLE VALVE GAS THREAD 1"11.0364/24
2223 07NEEDLE VALVE GAS THREAD 1 1/4"11.9182/12
2223 08NEEDLE VALVE GAS THREAD 1 1/2"12.7971/8
2223 09NEEDLE VALVE GAS THREAD 2"14.7281/6

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY

calidad1.png AENOR - Homologación y Marcado N de AENOR para la línea de válvulas de gas.
OLIVER RODÉS Water Quality - Certificados de agua potable, confirmando el cumplimiento de los criterios sanitarios de la calidad del agua para el conusmo humano RD 140/2003 de 07 de febrero (legislación española) y Directiva (UE) 2020/2184 del Parlamento Europeo y del Consejo de 16 de diciembre de 2020, relativa a la calidad de las aguas destinadas al consumo humano por el Laboratorio Oliver Rodés.
HOMOLOGACIÓN CE - Homologación CE y otras específicas para mercados como Bielorrusia, Chile, Polonia, Rusia, Ucrania, Singapur y Arabia Saudí.
NORMA UNE-EN-ISO 9001 - Este sistema está certificado de acuerdo a la norma UNE-EN-ISO 9001: 2015, por parte del prestigioso organismo certificador alemán TÜV Rheinland..

CERTIFICADO ISO 9001

CERTIFICADO ISO 14001

CERTIFICADO CE

CERTIFICADO HIGIENICO RUSIA

CERTIFICADO TÉCNICO BIELORRUSIA REF.2830

CERTIFICADO TÉCNICO BIELORRUSIA

CERTIFICADO TÉCNICO UCRANIA

CERTIFICADO POLONIA
