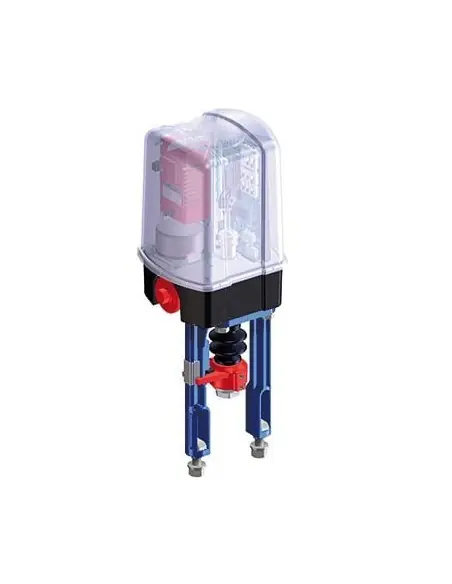

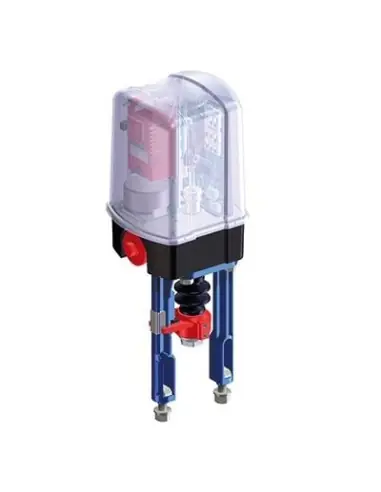

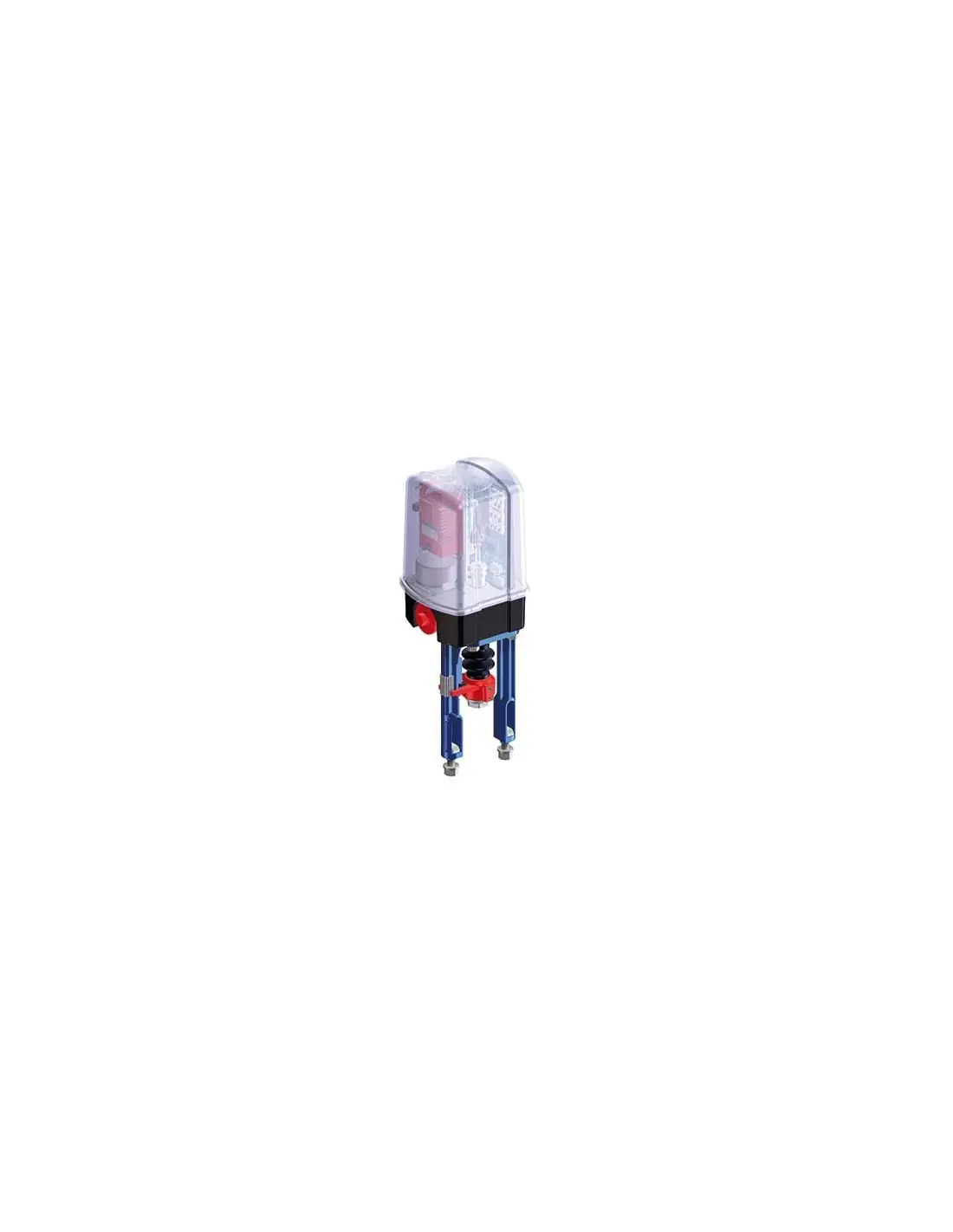

Electric actuator - PREMIO-Plus 2G | ARI

Models:

1. ARI-PREMIO®-Plus 2G 2.2 - 5 kN

   • Thrust Force: 2.2 kN to 5 kN.
   • Motor Type: BLDC motor (Brushless DC motor).
   • Travel Distance: Max. 50 mm.
   • Operating Speed: Adjustable, with speeds of 0.25 / 0.38 / 0.47 / 1.0 mm/s.
   • Supply Voltage: 24 V AC/DC.
   • Weight: 5.4 kg.

2. ARI-PREMIO®-Plus 2G 12 - 25 kN

   • Thrust Force: 12 kN to 25 kN.
   • Motor Type: BLDC motor.
   • Travel Distance: Max. 80 mm.
   • Operating Speed: Adjustable, with speeds of 0.20 / 0.31 / 0.38 / 0.79 mm/s.
   • Supply Voltage: 24 V AC/DC.
   • Weight: 9.5 kg - 11.0 kg.

Key Features:

• Optional Input Signals:
  • 3-point (12 to 250 V AC/DC)
  • 0 - 10 V
  • 4 - 20 mA
• Automatic Valve Travel Adaptation.
• Economy Function for extended lifetime.
• Manual Override Handwheel included.
• Contactless Position Determination.
• Thrust or Travel Switch optional.
• Enclosure: IP 65 (protection against dust and water).

Technical Data:

• Duty Classification: S3 - 80% ED (at +70°C).
• Max. Storage Temperature: -40°C to +85°C.
• Max. Permissible Ambient Temperature: -20°C to +70°C, for UL/CSA version up to +60°C.
• Electrical Safety: DIN EN 61010.
• Overvoltage Category II, Pollution Degree 2.

Accessories:

• Relay Board for intermediate positions and failure/warning signals.
• Analog Output Card for position feedback (0-10 V or 4-20 mA).
• Potentiometer for manual adjustment of position.
• LED Status Indicator for visual feedback on actuator status.
• Bluetooth Communications Package for wireless operation.
• Fieldbus Interface for Profibus DP and Modbus RTU communication.

Applications:

• These actuators are ideal for controlling valves in industrial systems, with adjustable position control. They are suitable for processes requiring high precision and reliable feedback for valve positioning.

Wiring and Mounting:

• Wiring Diagram: Includes connections for power supply, control signals, and feedback.
• The actuator can be mounted in any position, except when the motor is hanging downwards.

Dimensions:

• 2.2 - 5 kN: Nominal travel 30 mm to 50 mm.
  • Dimensions (A x B x H): 171 mm x 156 mm x 448 mm to 171 mm x 156 mm x 482 mm.
• 12 - 25 kN: Nominal travel 50 mm to 80 mm.
  • Dimensions (A x B x H): 210 mm x 184 mm x 622 mm to 210 mm x 184 mm x 637 mm.
