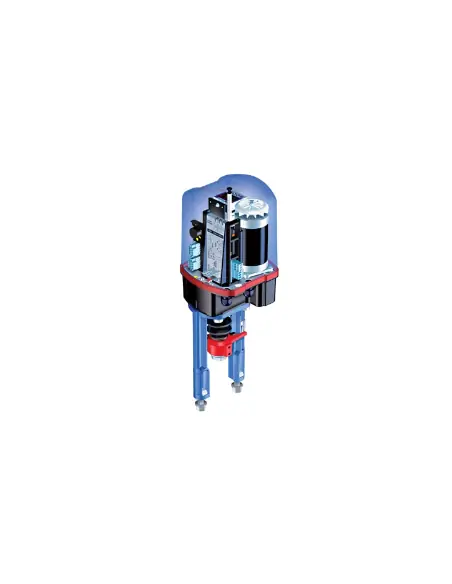

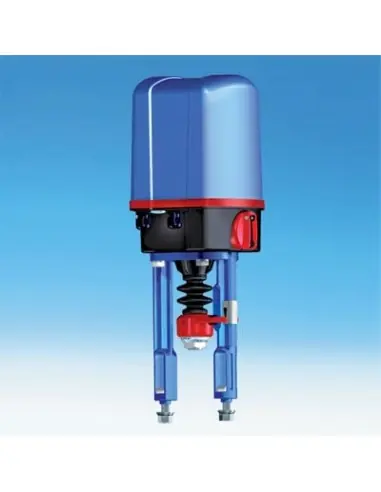

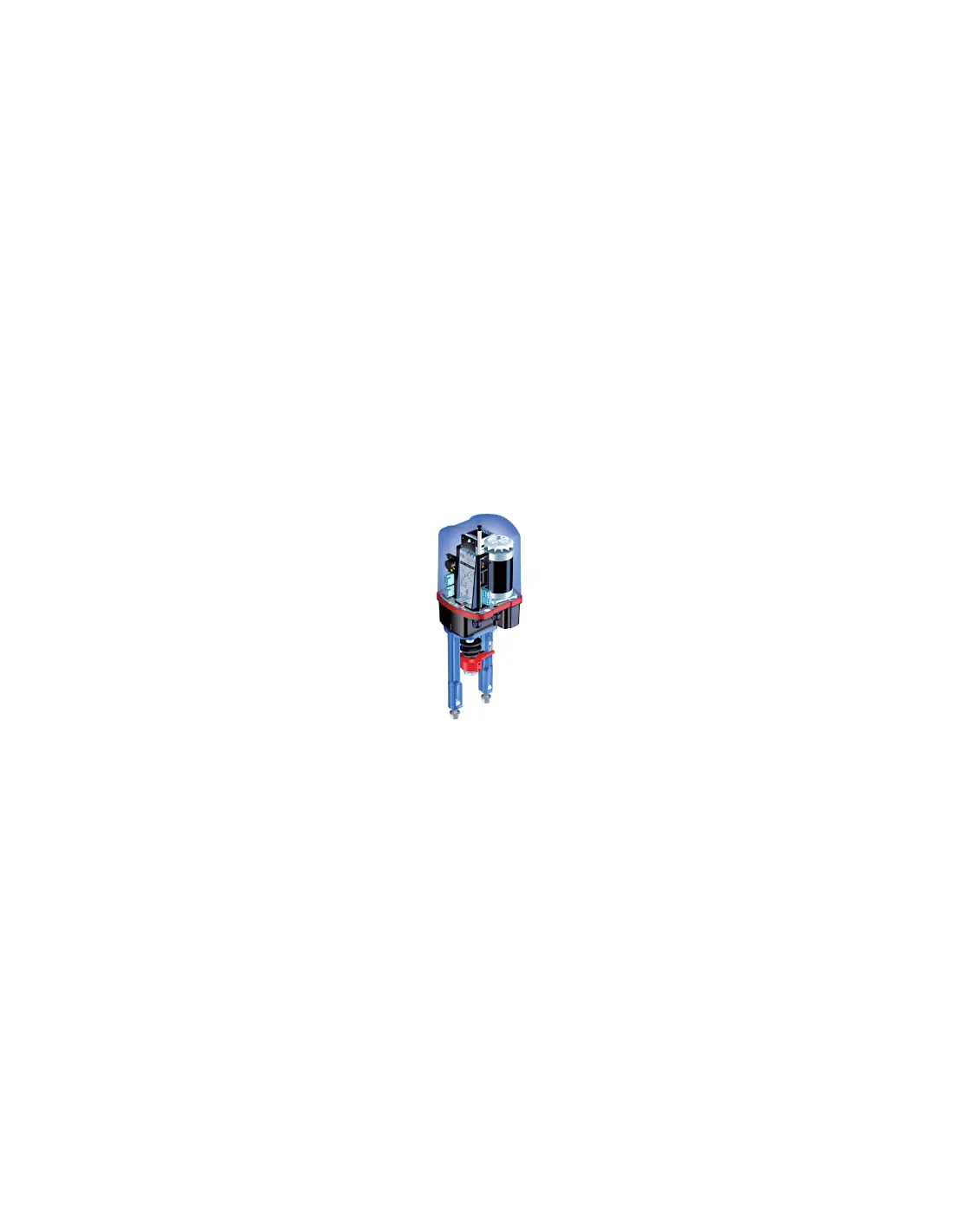

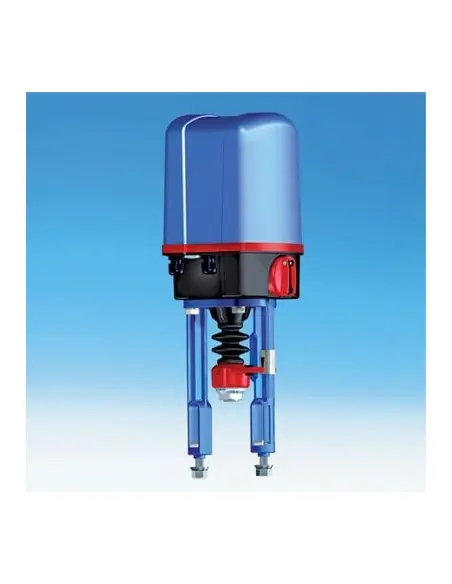

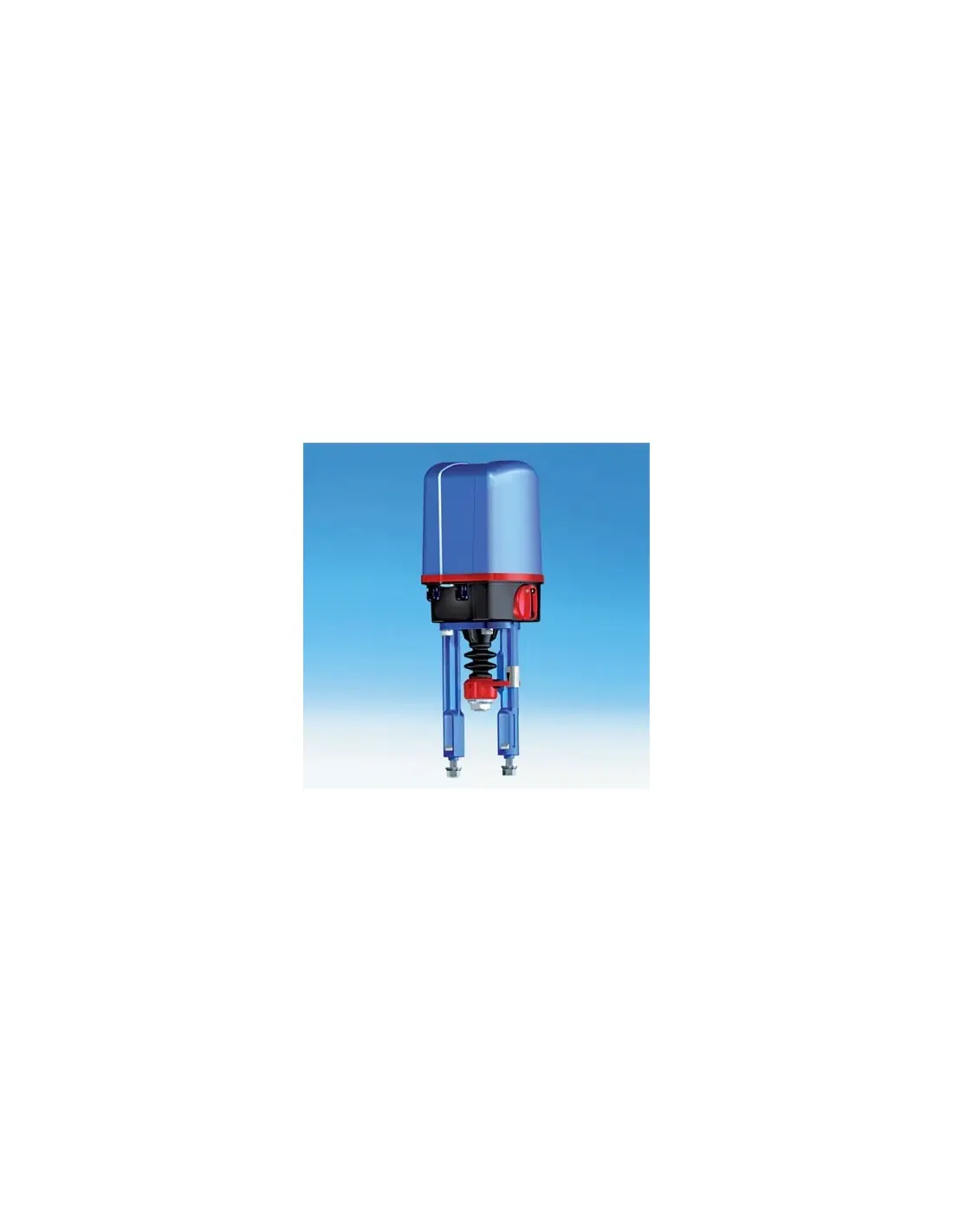

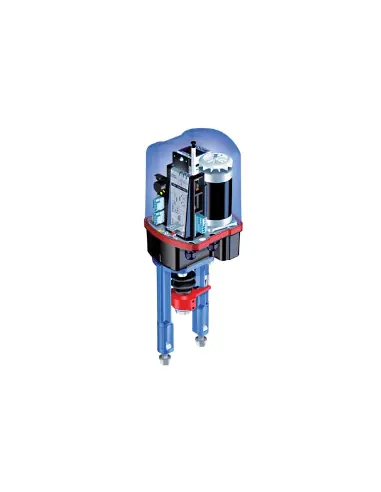

Electric actuator - PREMIO | ARI

Models:

1. ARI-PREMIO® 2.2 - 5 kN

   • Thrust Force: 2.2 kN to 5 kN.
   • Motor Type: Synchronous motor for 230 V AC, and BLDC motor for 24 V DC or 100-240 V AC.
   • Operating Speed: Adjustable, with a maximum travel speed of up to 1.0 mm/s.
   • Travel Distance: Maximum of 50 mm.
   • Supply Voltage: 230 V AC, 24 V DC (for BLDC).
   • Weight: 5.8 kg.

2. ARI-PREMIO® 12 - 25 kN

   • Thrust Force: 12 kN to 25 kN.
   • Motor Type: BLDC motor.
   • Operating Speed: Adjustable, with speeds of 0.20/0.31/0.38/0.79 mm/s.
   • Travel Distance: Maximum of 80 mm.
   • Supply Voltage: 24 V AC/DC.
   • Weight: 10.0 kg to 11.0 kg.

Key Features:

• Torque switches: Two switches for precise control.
• Handwheel: Manual control option available.
• Enclosure: IP 65, designed for protection against dust and water.
• Ambient Temperature: Operates between -20°C to +70°C (up to +60°C for UL/CSA versions).
• Safety: Designed with overvoltage protection and compliance with DIN EN 61010 for electrical safety.

Additional Features:

• Travel Indicator: For precise feedback of the actuator's position.
• Accessories: Available options include potentiometers, position controllers, and electronic position indicators (e.g., RI21 and RI32).
• Wiring Diagrams: Various wiring options available, including standard configurations and special options for external reversing contactors or process control integration.

Applications:

• The actuators are ideal for controlling valves in various industrial systems, where precise thrust and position control are required. They can be used for processes requiring accurate movement of valves in response to varying system conditions.

Technical Data:

• Power Consumption: Varies between models, from 21 VA for lower thrust models to 130 VA for higher thrust models.
• Current Consumption: Up to 2.5 A for smaller actuators, and 5 A for larger ones.
• Max. Storage Temperature: -40°C to +85°C.

Mounting and Positioning:

• The actuators can be installed in any position, except for cases where the motor is not hanging downwards.
• Lubrication: Gear lubricant Klübersynth G34 - 130.

Control and Feedback:

• Available with 3-point control or analog signals (0-10 V or 4-20 mA) for integration with control systems.
• Electronic Position Indicators for feedback on the actuator's position.
