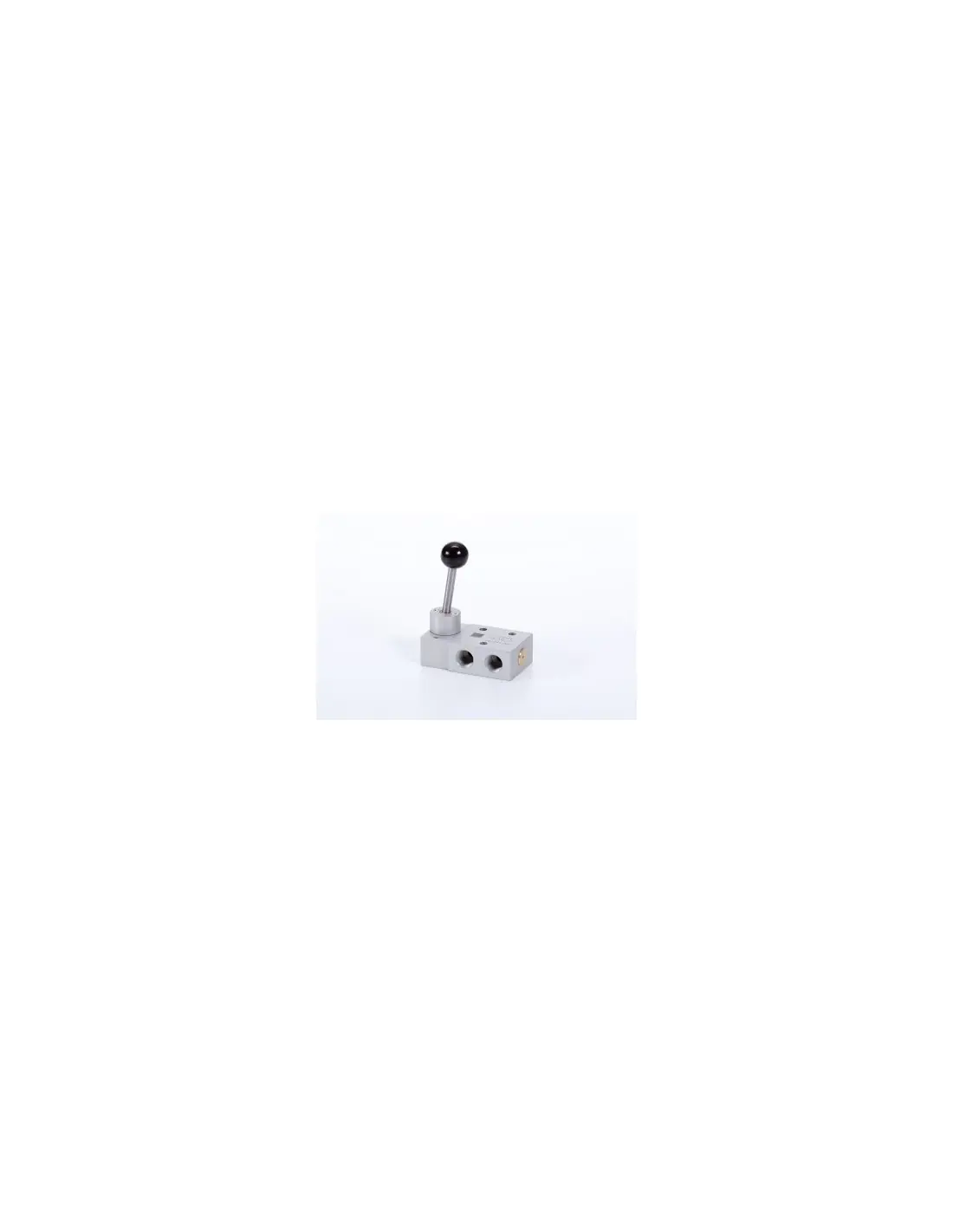

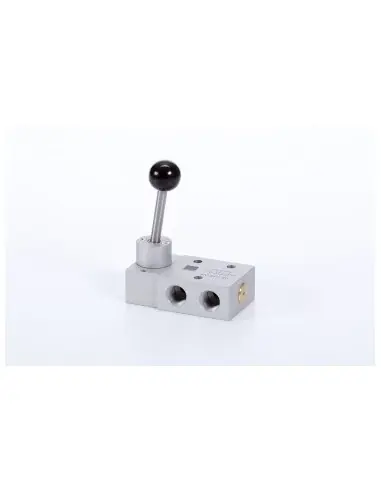

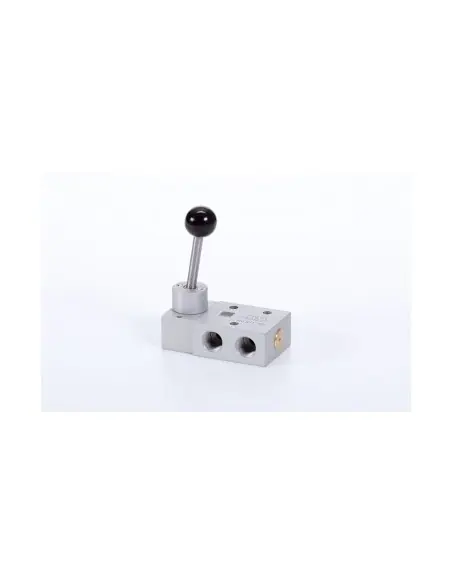

Hand lever valve | monostable | mechanical spring return
| Type number | Port size | Air flow | Operating pressure | Actuating force | Function |
|---|---|---|---|---|---|
| HV 511 501 | G 1/8 | 650 l/min | 1...10 bar | 20 N | spring return | NC/NO |
| HV 511 701 | G 1/4 | 1250 l/min | 1...10 bar | 20 N | spring return | NC/NO |
| HV 511 801 | G 1/4" | 1450 l/min | 1...10 bar | 25 N | spring return | NC/NO |
| HV 511 101 | G 3/8 | 2250 l/min | 1...10 bar | 25 N | spring return | NC/NO |
| HV 511 121 | G 1/2" | 3000 l/min | 1...10 bar | 32 N | spring return | NC/NO |
| HV 511 181 | G 3/4 | 6000 l/min | 1...10 bar | 40 N | spring return | NC/NO |
Hand lever valve | bistable
| Type number | Port size | Air flow | Operating pressure | Actuating force | Function |
|---|---|---|---|---|---|
| HVR 520 501 | G 1/8" | 650 l/min | 1...10 bar | 20 N | two positions |
| HVR 520 701 | G 1/4" | 1250 l/min | 1...10 bar | 20 N | two positions |
| HVR 520 801 | G 1/4" | 1450 l/min | 1...10 bar | 25 N | two positions |
| HVR 520 101 | G 3/8" | 2250 l/min | 1...10 bar | 25 N | two positions |
| HVR 520 121 | G 1/2" | 3000 l/min | 1...10 bar | 32 N | two positions |
| HVR 520 181 | G 3/4" | 6000 l/min | 1...10 bar | 40 N | two positions |
