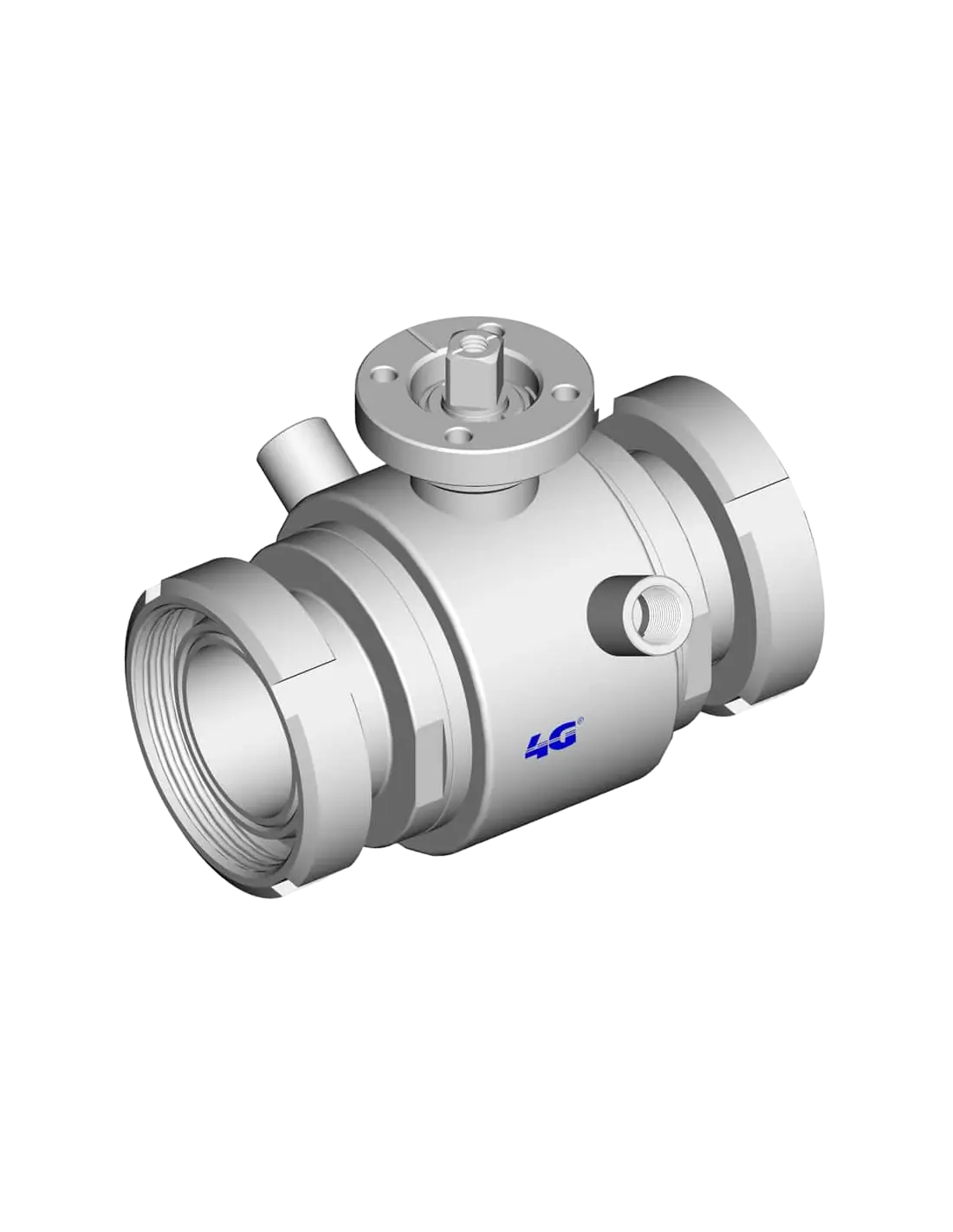

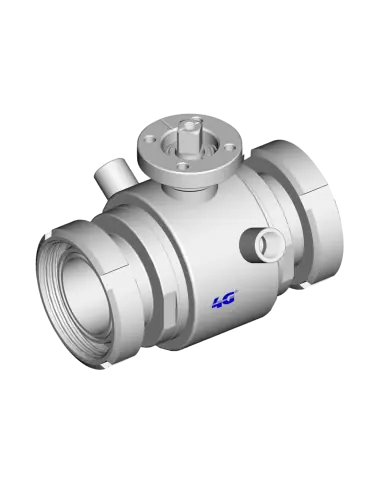

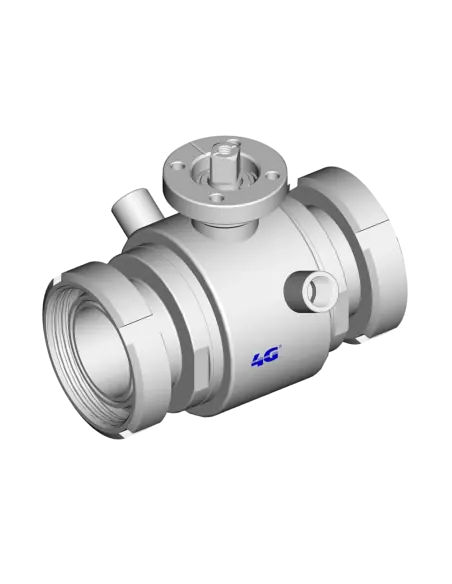

The Ball Valve with Heating Jacket by 4G Ghidini, model 103027C, is a two-way valve designed for efficient fluid control in various industrial applications. It features a heating jacket to maintain optimal temperature conditions and is equipped with standard seals. The valve is compatible with actuators via an ISO 5211 – DIN 3337 flange and connects using a DIN 11851 male/male fitting. It offers full flow and is constructed from durable Aisi 304L and Aisi 316L stainless steel, available in sizes ranging from DN25 to DN100. The seals are made from modified virgin PTFE, suitable for operating temperatures between -20°C and +170°C. The valve's outer finish is polished, and it includes screws for actuator mounting. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN25 to DN 100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
