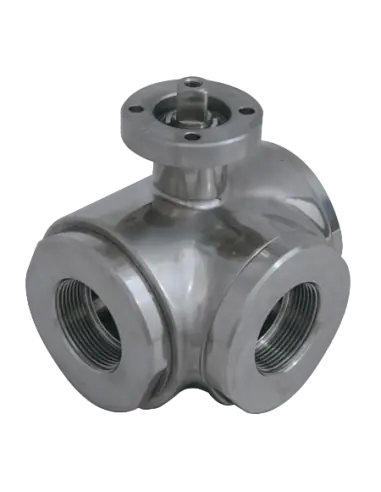

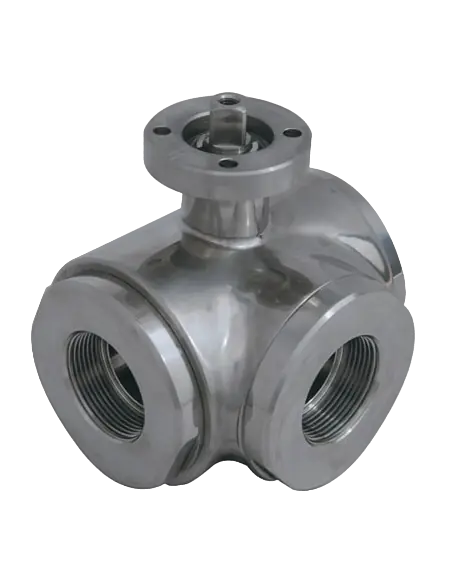

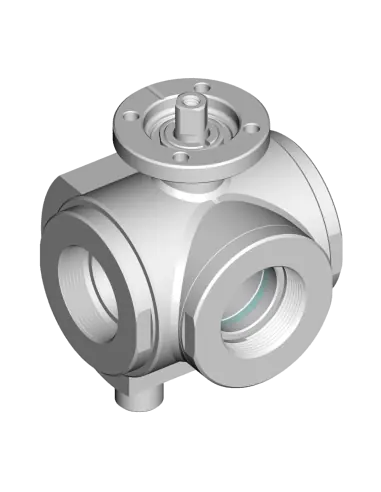

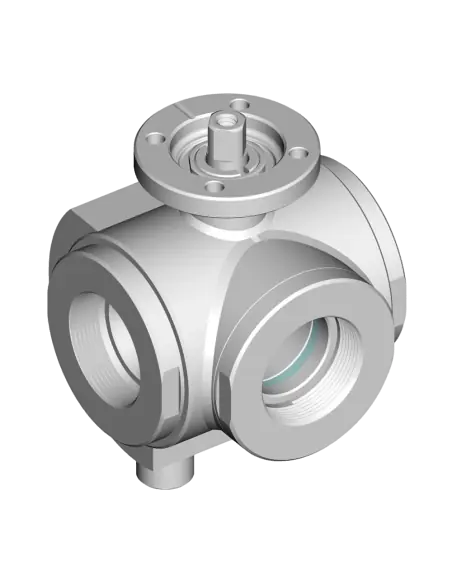

The 3 Way (T) Ball Valve by 4G Ghidini, model 303001C, is a versatile valve designed for efficient fluid control. It features a "T" port configuration with four standard seals and a heating jacket, making it suitable for various industrial applications. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator compatibility and has ISO 228 female threads for easy connection. It offers full flow and is constructed from durable Aisi 304L and Aisi 316L stainless steel, available in sizes ranging from 1/4” to 4”. The seals are made from modified virgin P.T.F.E., ensuring reliable performance within an operating temperature range of -20°C to +170°C. The valve's polished outer finish enhances its durability and appearance. Optional features include an antistatic device compliant with ATEX standards and seals made from various materials like PTFE with glass, carbographite, inox, or UHMW polyethylene, catering to specific temperature and application needs.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port / THREE-way ball valve 4 seals with “T” port with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
