CLASS SIZE FIG. N°
600 2" - 16" P82
900 2" - 16" P83
1500 2" - 12" P84
2500 2" - 12" P85

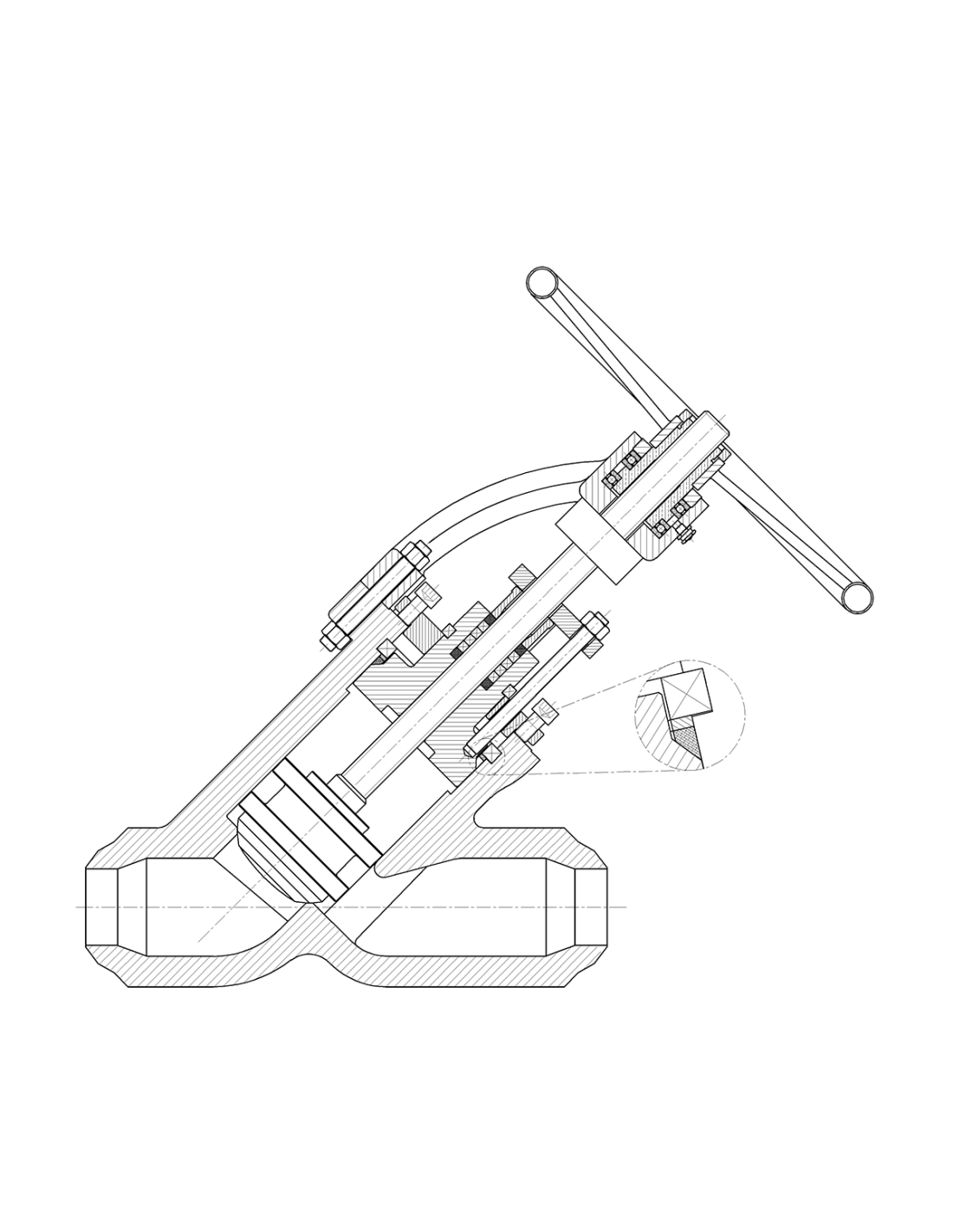

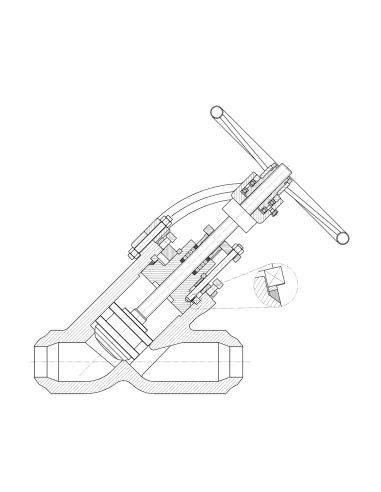

Globe Valve Y-Type Pressure Seal - ASME | Valvosider
The Globe Valve Y-Type Pressure Seal by Valvosider is designed according to ASME standards and is available in various pressure classes and sizes. It features a Y-type configuration for efficient flow control and a pressure seal bonnet for enhanced sealing performance under high-pressure conditions. The valve is available in the following configurations: Class 600 for sizes 2" to 16" (Fig. No. P82), Class 900 for sizes 2" to 16" (Fig. No. P83), Class 1500 for sizes 2" to 12" (Fig. No. P84), and Class 2500 for sizes 2" to 12" (Fig. No. P85). This range of options makes it suitable for various industrial applications requiring reliable pressure management.
Datasheet and documents
Description
Certifications
