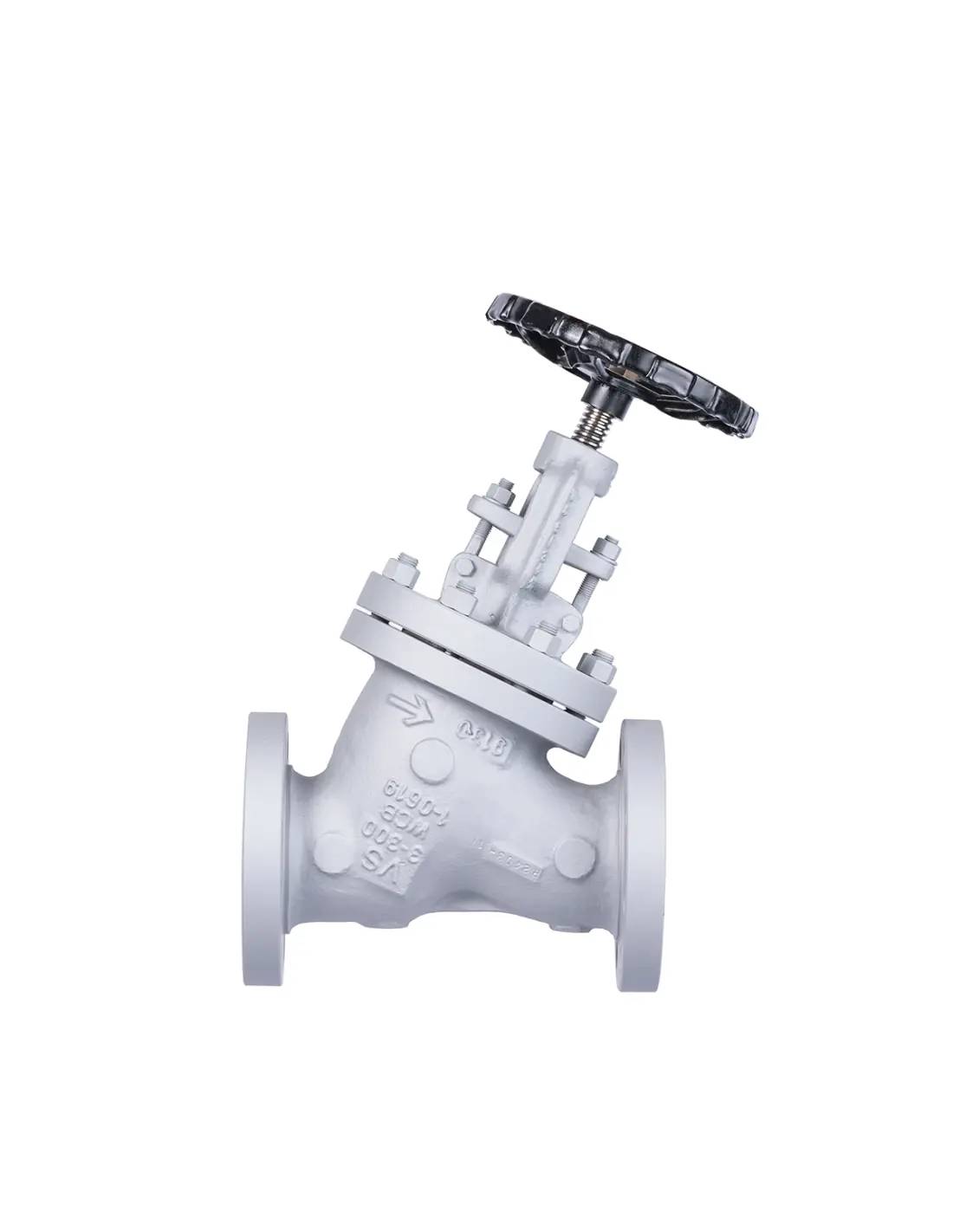

Globe Valve Y-Type Bolted Bonnet - ASME | Valvosider
Globe Valve Y-Type Bolted Bonnet - ASME | Valvosider

Globe Valve Y-Type Bolted Bonnet - ASME | Valvosider

API 623 | BS 1873 with heavy-duty design for petroleum refinery and related applications. “Y” pattern for turbulence reduction.

Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A216 WCB
  • ASTM A217 WC6
  • ASTM A217 Grade C5
  • ASTM A217 Grade C12
  • ASTM A351 CF8
  • ASTM A351 CF8C
  • ASTM A351 CF3M
  • ASTM A351 CF8M
  • ASTM A352 LCB
Pressure Rating (Options)
  • 150 lbs
  • 300 lbs
  • 600 lbs
  • 900 lbs
  • 1500 lbs
Pattern (Options)
  • Y


CLASS SIZES FIG. N°

150 2" - 16" 460Y

300 2" - 16" 461Y

600 2" - 16" 462Y

900 2" - 12" 463Y

1500 2" - 12" 464Y
