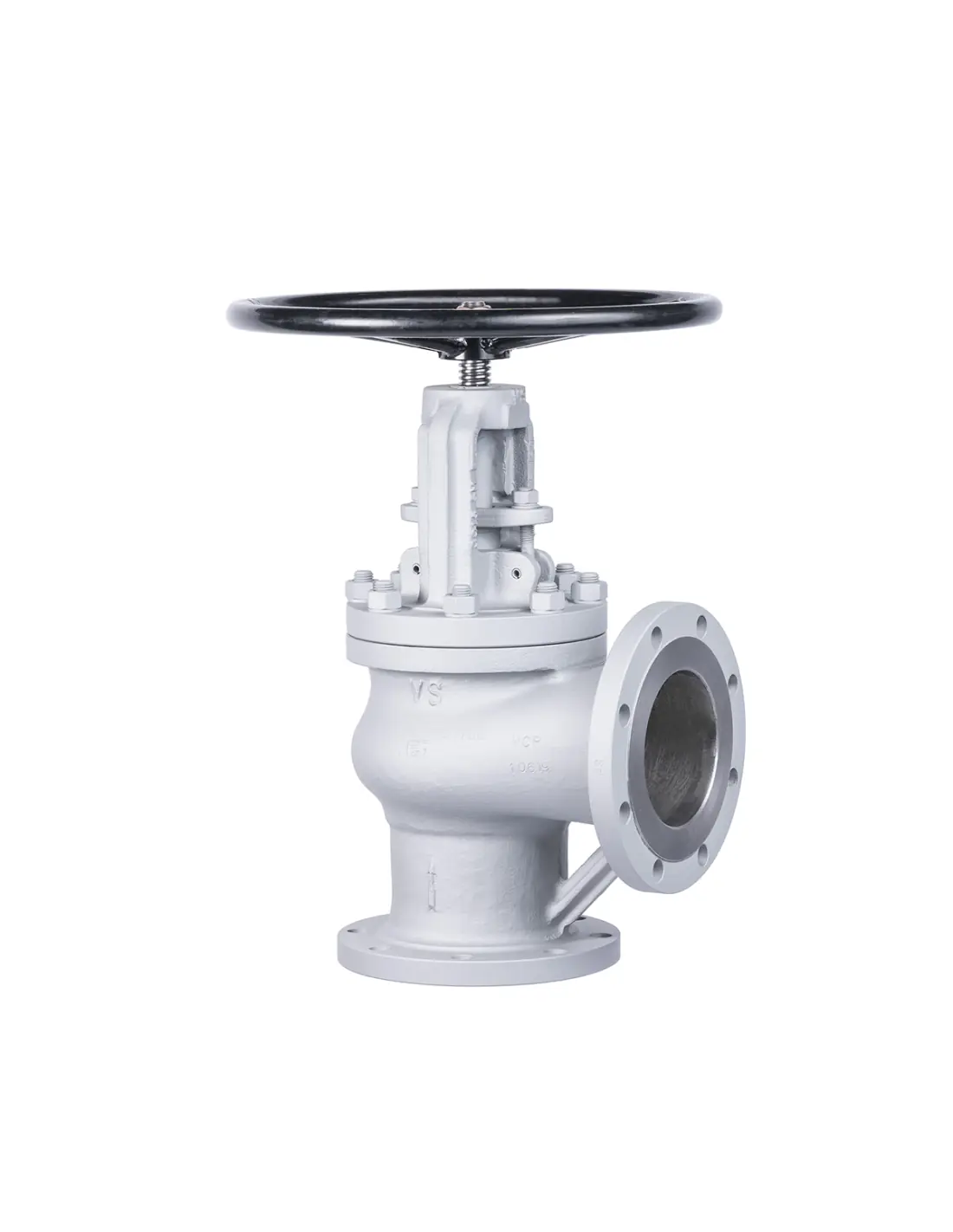

The Globe Valve Angle Bolted Bonnet by Valvosider is a robust and versatile valve designed according to DIN standards. It is available in various pressure ratings, including PN 10/16, PN 25/40, PN 63, and PN 100, accommodating a wide range of applications. The valve sizes range from DN 15 to DN 600 for most pressure classes, with the PN 100 class available up to DN 300. Each pressure class is associated with a specific figure number: 1410 for PN 10/16, 1440 for PN 25/40, 1560A for PN 63, and 1570A for PN 100. This valve is suitable for controlling fluid flow in various industrial settings.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
  • 1.4581
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 63
  • PN 100
Pattern (Options)
  • Angle

Datasheet and documents

Description

CLASS SIZES FIG. N°

PN 10/16 DN 15 - DN 600 1410

PN 25/40 DN 15 - DN 600 1440

PN 63 DN 15 - DN 600 1560A

PN 100 DN 15 - DN 300 1570A

Certifications

ISO 9001 (PDF)

ISO 14001 (PDF)

ISO 45001 (PDF)

API 600 (PDF)

API 6D (PDF)

API 594 (PDF)

API 6A (PDF)

ATEX (PDF)

API 591 (PDF)

TA-LUFT (PDF)
