stainless steel, floor mounted

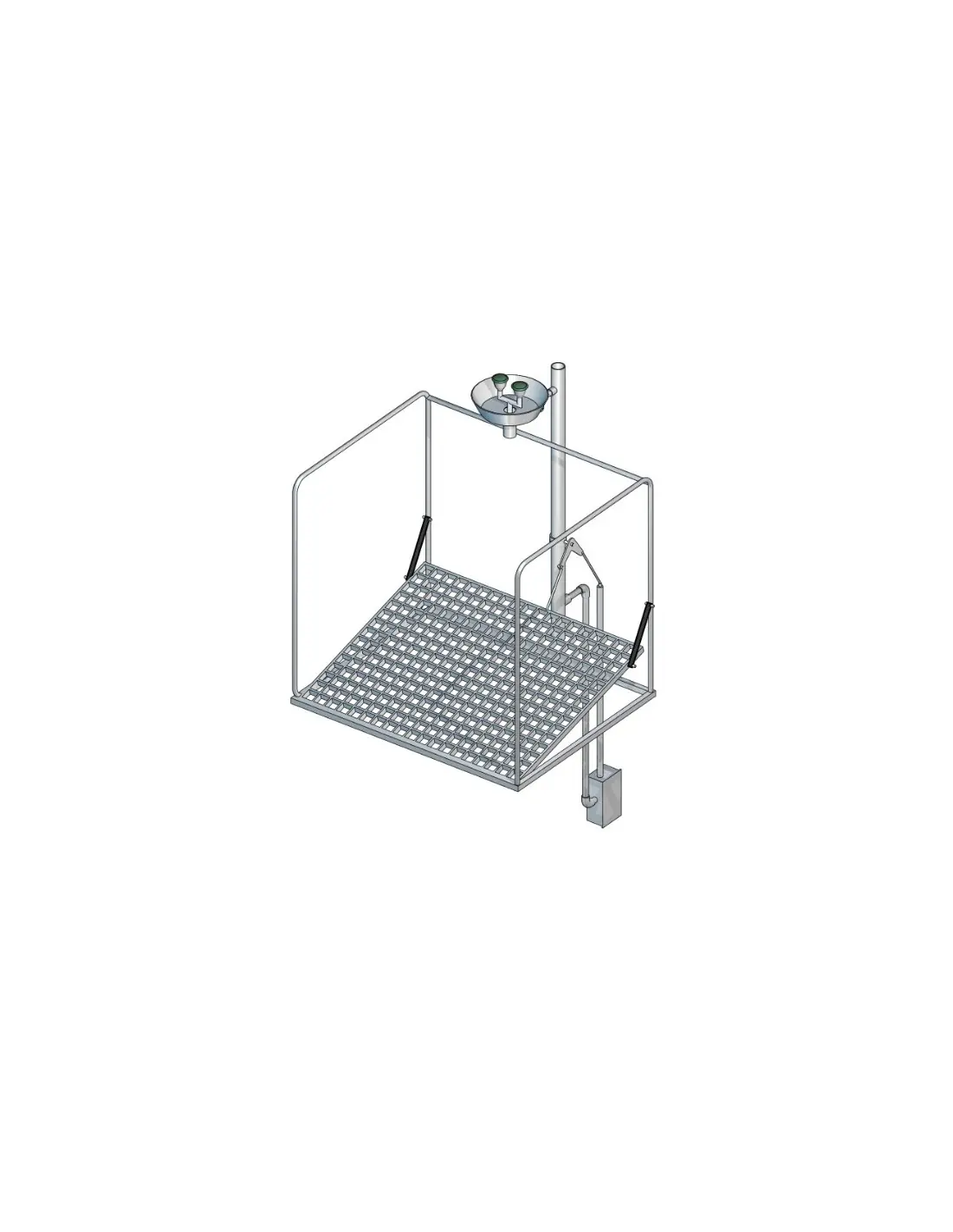

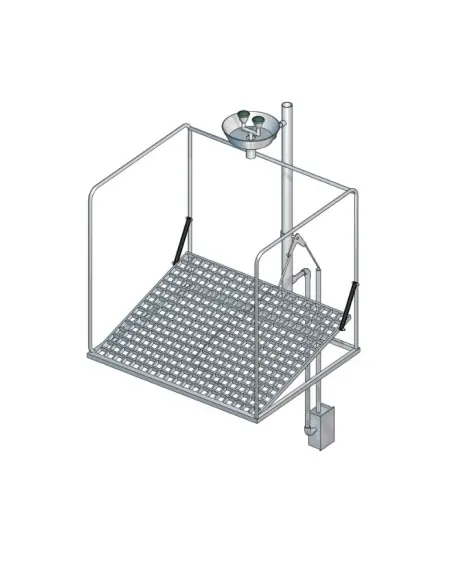

PremiumLine frostprotected self-draining eye shower station with surrounding protection cage, with underfloor actuation

Article-No.: BR 887 395

Emergency shower stations are first aid stations with an emergency shower. They are well protected against damage by the surrounding protective cage and are also clearly visible from all sides. The large step grate acts as an actuator for the shower. All emergency shower stations have a self-draining design and are therefore also suitable for use in hot environments. As a special design, the showers are also available with an underfloor release and in this way frost-proof.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 1025 mm
  • Projection: 430 mm
  • Protection cage dimensions (H x W x D): 960 x 850 x 900 mm
  • Operating pressure: 2.5 to 5 bar
  • Flow rate: 14 litres / minute
  • Water inlet: ¾“ male

Norms / Approvals

  • EN 15154-2:2006
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The eye shower is equipped with two B-SAFETY high-performance spray heads, which not only meet the requirements of EN 15154-2:2006 and ANSI Z358.1-2014, but also ensure that the water is distributed over a large area. This also takes care of the regions around the eyes and eyes can be positioned in the water jet without problems. The restricted, even and, most important of all, soft water jet has been optimized for rinsing chemicals out of the eye.

Technical Description

  • frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
  • platform actuation for eye shower made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
  • angle diversion made of stainless steel, with stainless steel attachment to the standpipe
  • ball valve made of stainless steel as underfloor actuation, mounted in stainless steel cabinet, with pull rod activation 1000 mm, DIN-DVGW tested and certificated, with automatic self-draining in 1000 mm depth
  • base plate with 4 mounting holes of stainless steel, polished, dimensions 200 x 200 mm
  • stand pipe 1 ¼” of stainless steel, polished, with bottom water inlet 1 ¼” female, total height 1025 mm
  • integrated PremiumLine safety eye shower with stainless steel bowl, mounting height 970 mm
  • connection pipe of stainless steel for easy installation and alignment of the shower, polished
  • bowl made of stainless steel, diameter 275 mm, polished, water outlet 1 ¼” male
  • high-performance spray heads made of stainless steel for large-scale dispersion of water, with plastic spray plate, largely free of calcification, with rubber sleeves and sealed dust caps with folding mechanism, mounted over distributor fork
  • integrated flow regulation 14 litre / minute for a standard-compliant jet pattern at a specified working range of 2.5 to 5 bar flow pressure
  • sign for eye shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 100 x 100 mm, viewing distance 10 metre
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014 and EN 15154-2:2006
  • DIN-DVGW tested and certificated
