floor mounted

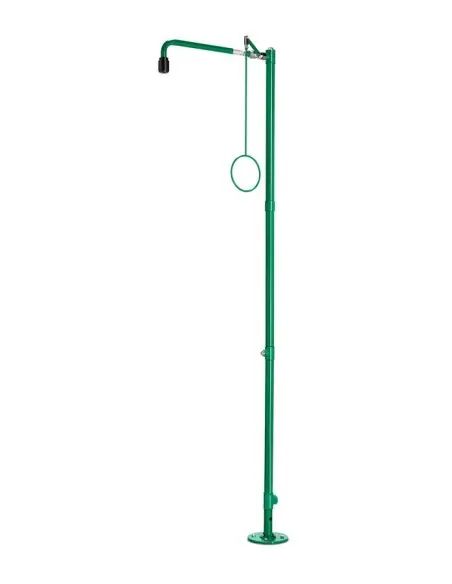

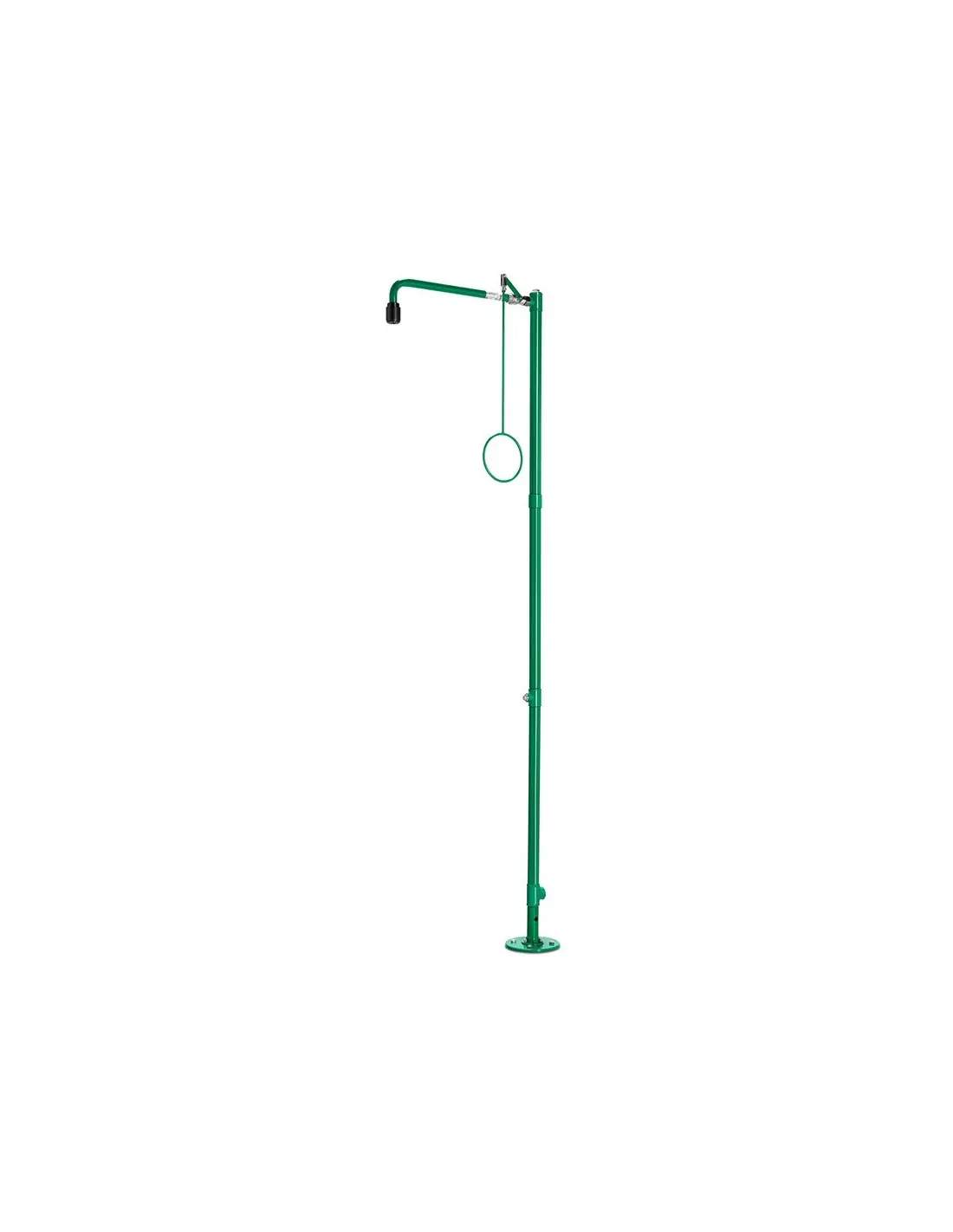

ClassicLine body safety shower

Article-No.: BR 830 085

The freestanding industrial safety showers are always used when wall mounting of the shower is not possible or when a central point of contact for first aid is to be created. It also makes sense to use them in large halls and production facilities. A big advantage is the good visibility of the shower from all sides. The freestanding safety showers can be optionally adapted to the requirements on site with a wide range of options.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel, plastic
  • Color: green, black
  • Total height: 2300 mm
  • Projection: 630 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: 1 ¼” female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the ClassicLine series are made of high-quality materials and are just as suitable for use in laboratories and research as they are for rough use in industry. B-SAFETY’s green chemical-resistant polyester powder coating has proven itself in many aggressive environments and is resistant to many acids and alkalis.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcificationand maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

Technical Description

  • including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
  • base plate with 4 mounting holes of stainless steel, chemical resistant green powder coated, diameter 200 mm
  • stand pipe 1 ¼” of stainless steel three-part, chemical resistant green powder coated, with top and bottom water inlet 1 ¼” female, total height 2300 mm
  • connection piece of stainless steel, for easy installation and alignment of the shower
  • ball valve ¾” made of dezincification-resistant brass, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, chemical resistant green powder coated, length 700 mm
  • wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 630 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
