Valve for small to high flow rates

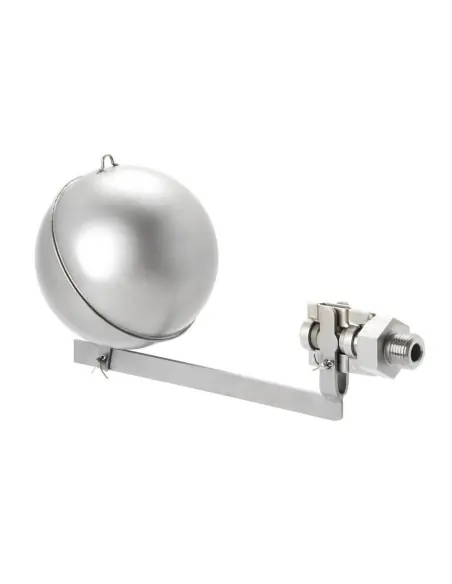

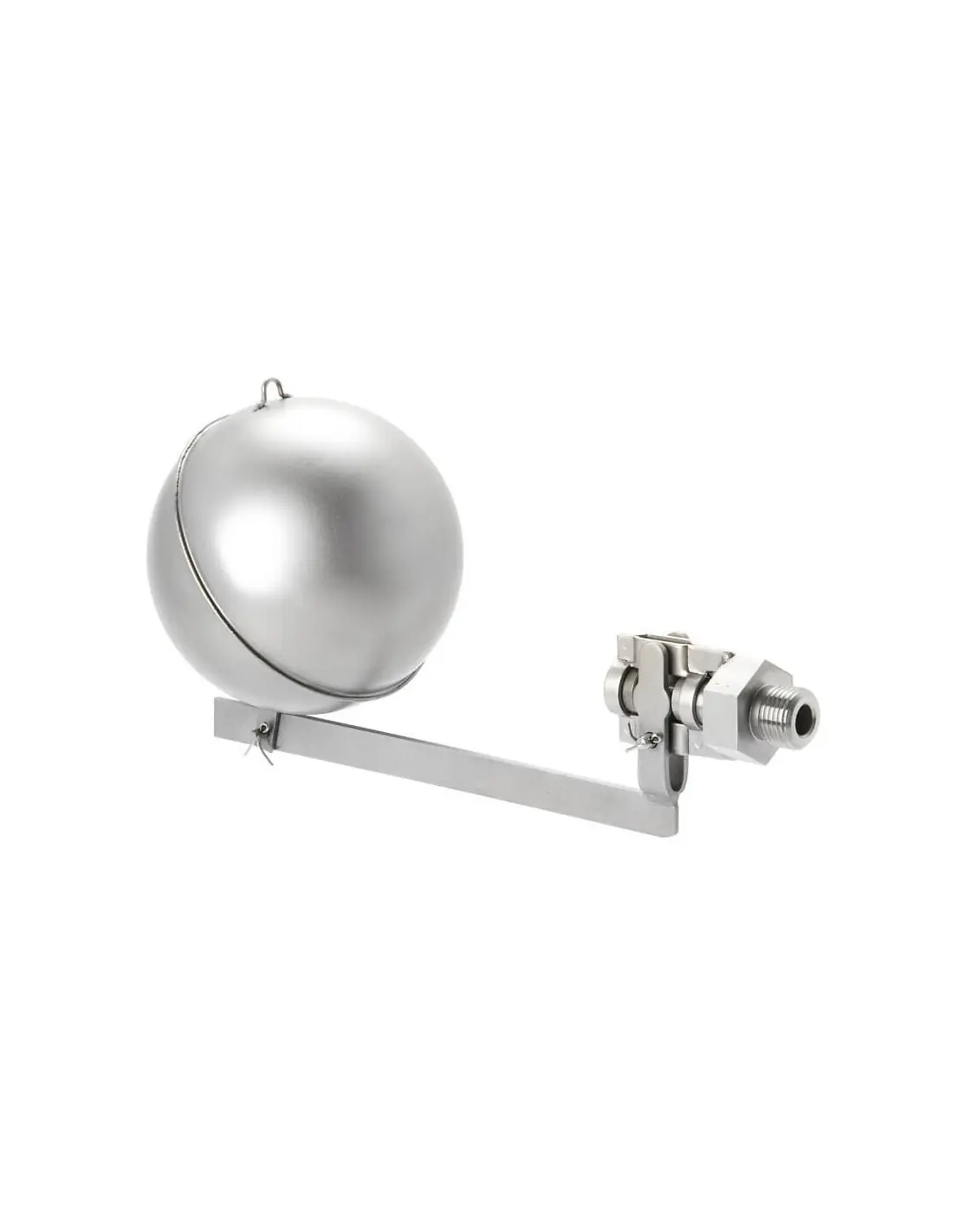

The float valve NV 94 is a valve for horizontal or vertical installation inside a tank as inlet or outlet valve. This valve is made entirely of stainless steel featuring excellent corrosion resistance.

The valve cone can be fitted with a soft seal (up to 130 °C) or a metallic seal (up to 300 °C).

Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

Product features

Float valves automatically control liquid levels in sealed or open (non-pressurised) tanks and vessels without requiring external energy.

The float registers the liquid level and directly controls the valve via a lever.

A change in the liquid level immediately results in a changed flow volume.

Standard

  • All stainless steel construction
  • Soft or metallic seal
  • SC 3 ball float stainless steel

Options

  • Float adjustment to the density of the medium
  • Elastomers as per FDA and USP Class VI
  • NPT connection

Technical data

G
3/8A - 1 1/2A
PN
16
p
0 - 8 bar
Kvs
0.5 - 21 m3/h
T
300 °C


Liquids up to 300 °C, also suitable for aggressive media | soft or metallic seal | completely made of stainless steel

Advantages

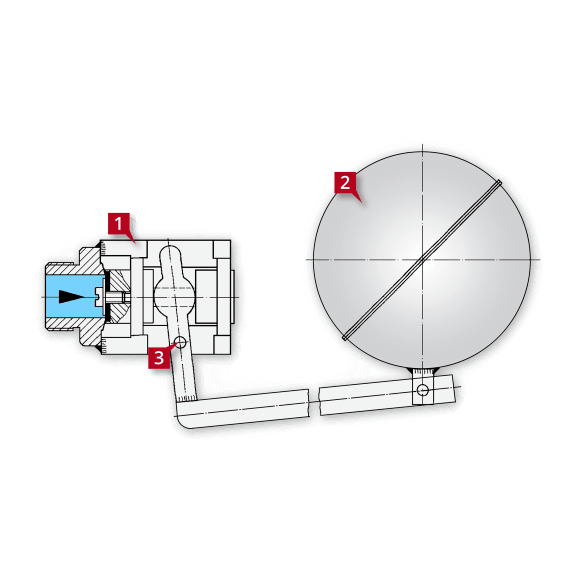

1

Completely made of stainless steel (1.4404 / 316L)

Long operational lifespan, corrosion-resistant

2

Float resistant to pressure, made of stainless steel (1.4404 / 316L)

Corrosion resistant, useable for closed tanks

3

Sturdy and simple valve mechanism

Reliable function, easy-to-maintain, can be disassembled without any specialist knowledge
