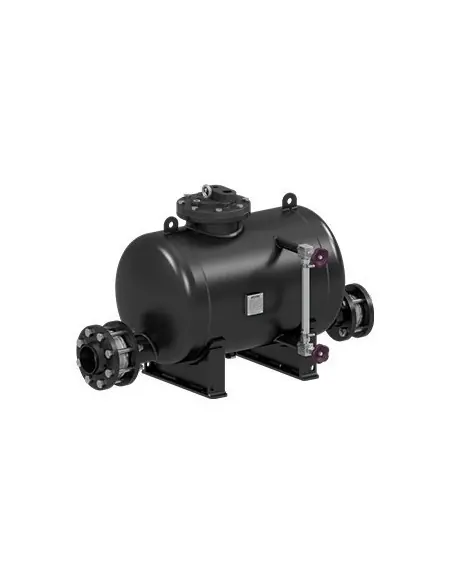

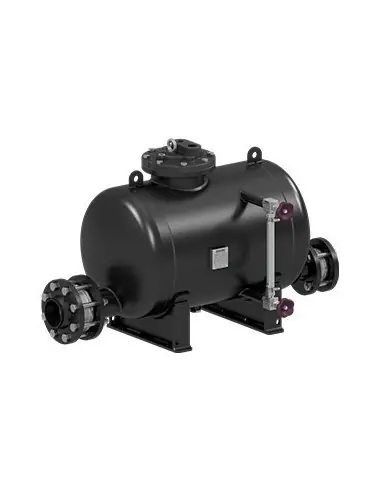

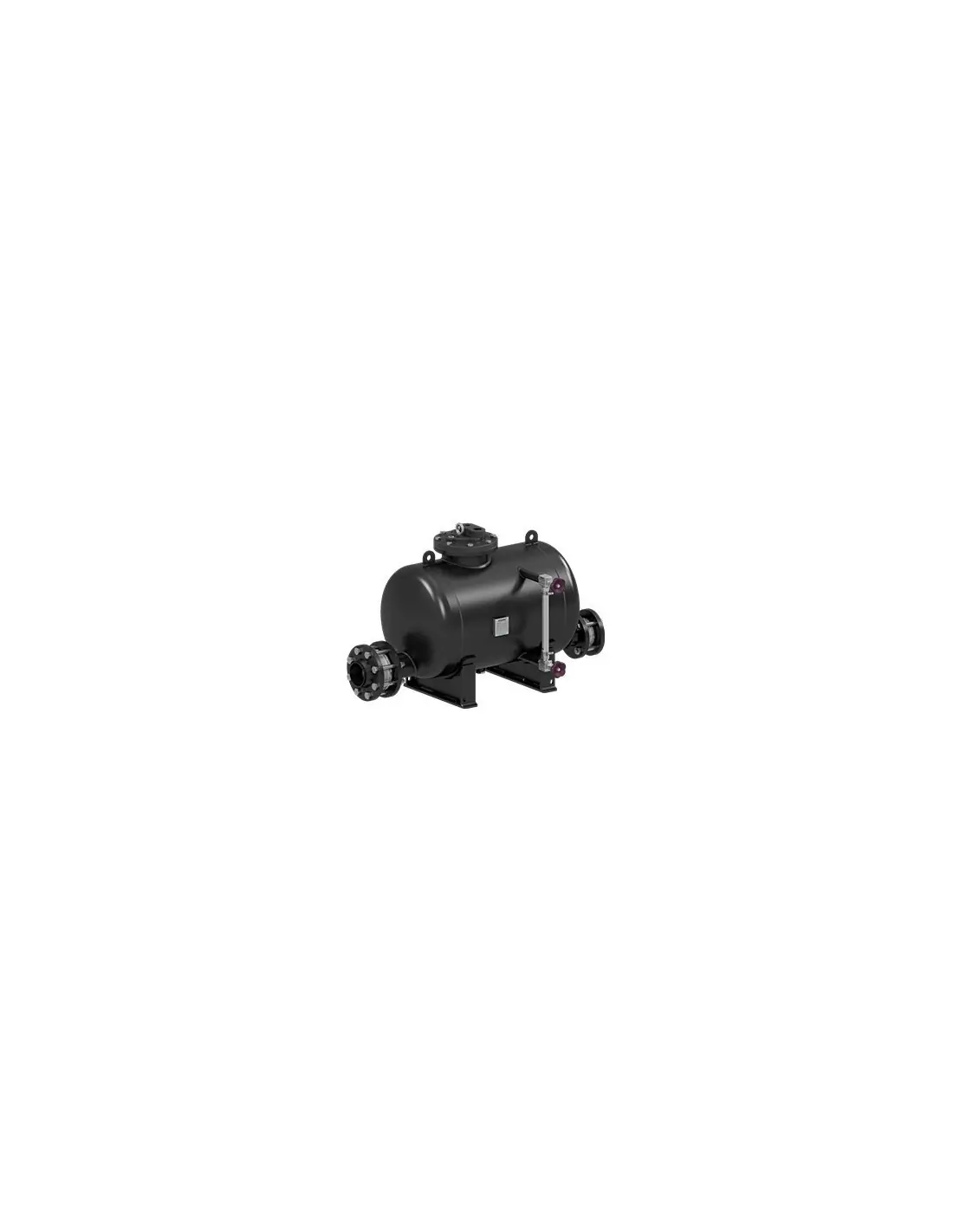

The Pump Trap PPA312 by ADCA is a robust and efficient solution designed for steam and condensate systems. Constructed from durable carbon steel, it offers versatile connection options, including Flanged EN 1092-1 PN 16, Flanged ASME B16.5 Class 150, and Female threaded ISO 7 Rp. The pump trap can handle a maximum motive pressure of 10 bar and operates effectively at temperatures up to 185 ºC. With a flow rate capacity of up to 7540 kg/h, the PPA312 is suitable for high-demand applications, ensuring reliable performance in various industrial settings.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Carbon Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

MATERIAL

Carbon steel

CONNECTIONS

Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Female threaded ISO 7 Rp

MAX. MOTIVE PRESSURE

10 bar

MAX. OPERATING TEMPERATURE

185 ºC

FLOW RATE CAPACITY

Up to 7540 kg/h
