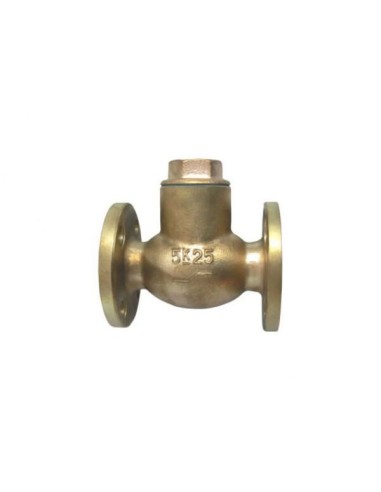

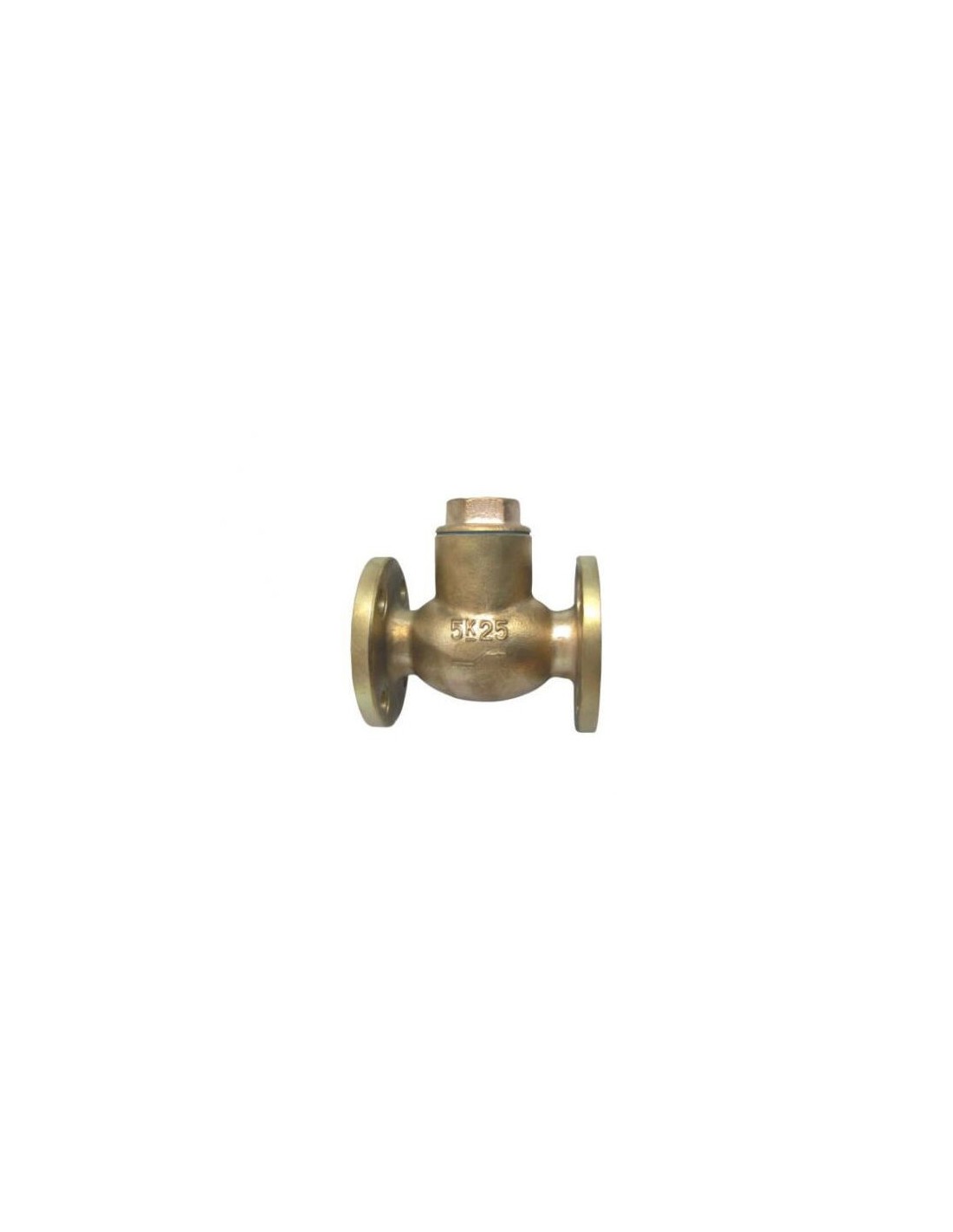

Marine - JIS F 7356 Bronze 5K lift check valves
Marine - JIS F 7356 Bronze 5K lift check valves

Marine - JIS F 7356 Bronze 5K lift check valves

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:5K,10K,16K

Size:DN15-DN300

Material:cast iron,cast steel,forged steel,brass,bronze

Type:globe valve,angle valve,

Media: Water,Oil,Steam

Description

Description

DESIGN STANDARDJIS F 7356-1996
TESTJIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPABODY1.05
SEAT0.77-0.4

Specification

4GASKETNON-ASBESTES

Qingdao I-Flow Co., Ltd

3DISCBC6
2BONNETBC6
1BODYBC6
NO.NAME OF PARTMATERIAL
BRONZE 5K LIFT CHECK VALVE

Dimensions data(mm)

DNdLDCNO.htH
252512095754121077
3232140115904151281
4040160120954151291
