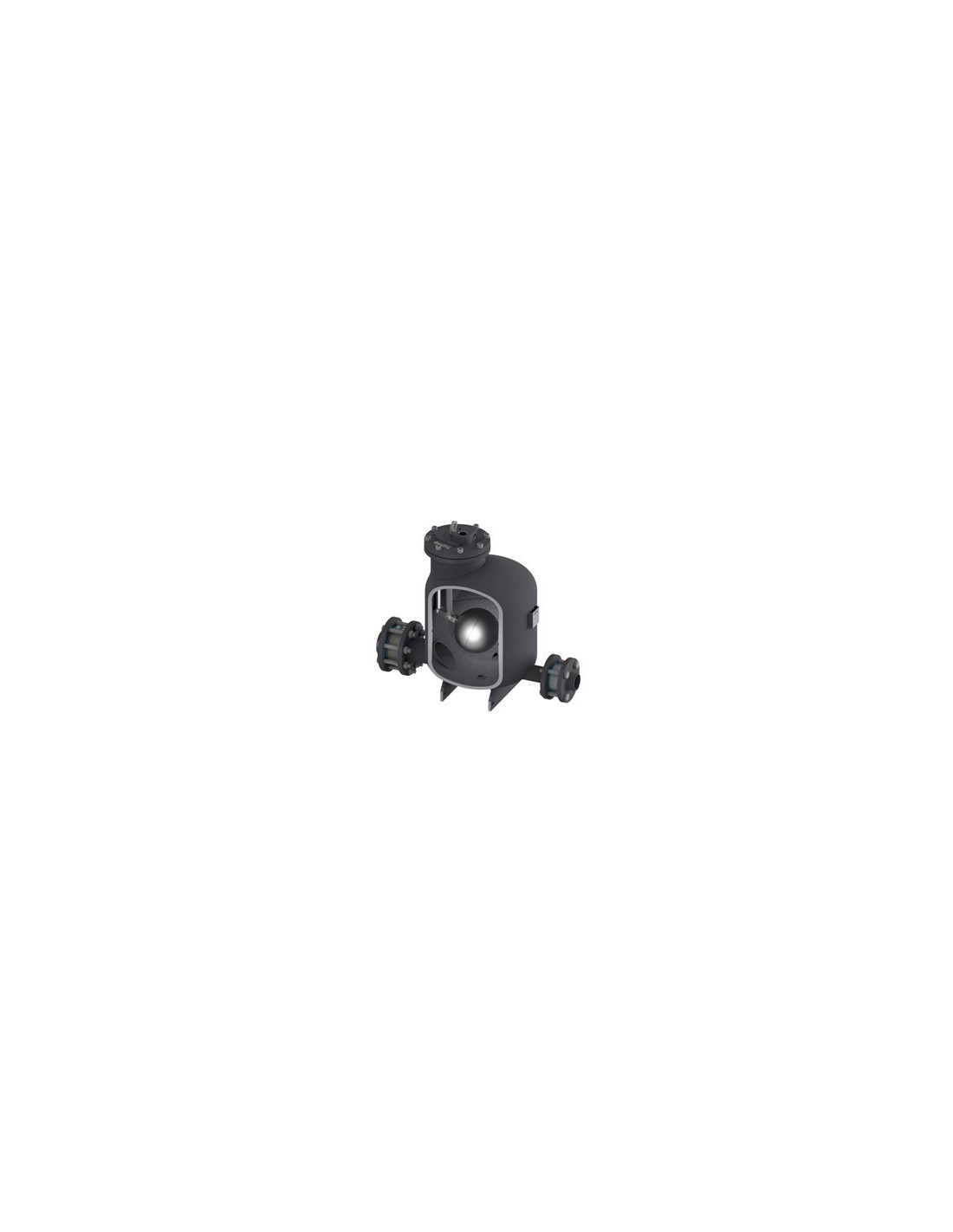

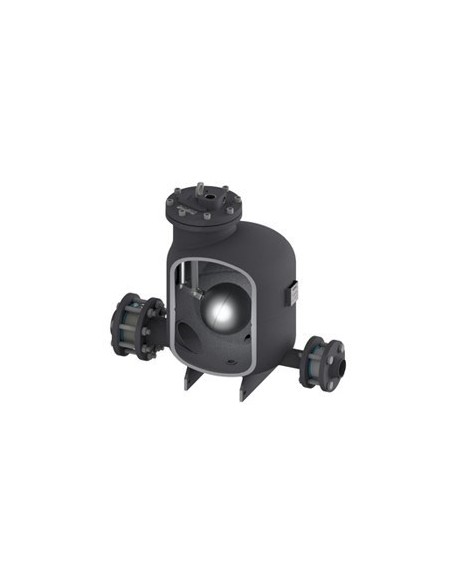

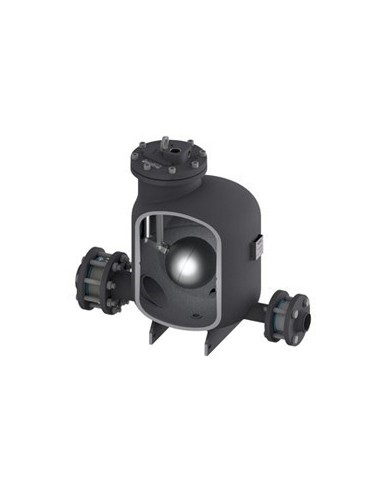

The ADCAMat POP DN 25-80 is a pressure-operated pump trap designed for the efficient transfer of steam condensate, oils, and other non-hazardous liquids to higher elevations or pressures. It is capable of draining closed vessels under vacuum or pressure conditions. The pump can be powered by steam, compressed air, or other gases and is available in carbon steel or stainless steel. It comes in sizes ranging from 1'' x 1'' to 3" x 2" (DN 25 x 25 to DN 80 x 50) and offers various connection options, including flanged EN 1092-1 PN 16, flanged ASME B16.5 Class 150, and female threaded ISO 7 Rp. The pump can handle a maximum motive pressure of 10 bar, operate at temperatures up to 185 ºC, and has a flow rate capacity of up to 6080 kg/h.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • Carbon Steel
  • Stainless Steel
Pressure Rating (Options)
  • PN 16

Datasheet and documents

Description

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

MATERIAL
Carbon steel or stainless steel
SIZES
1'' x 1'' a 3" x 2"DN 25 x 25 a DN 80 x 50
CONNECTIONS
Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Female threaded ISO 7 Rp
MAX. MOTIVE PRESSURE
10 bar
MAX. OPERATING TEMPERATURE
185 ºC
FLOW RATE CAPACITY
Up to 6080 kg/h
