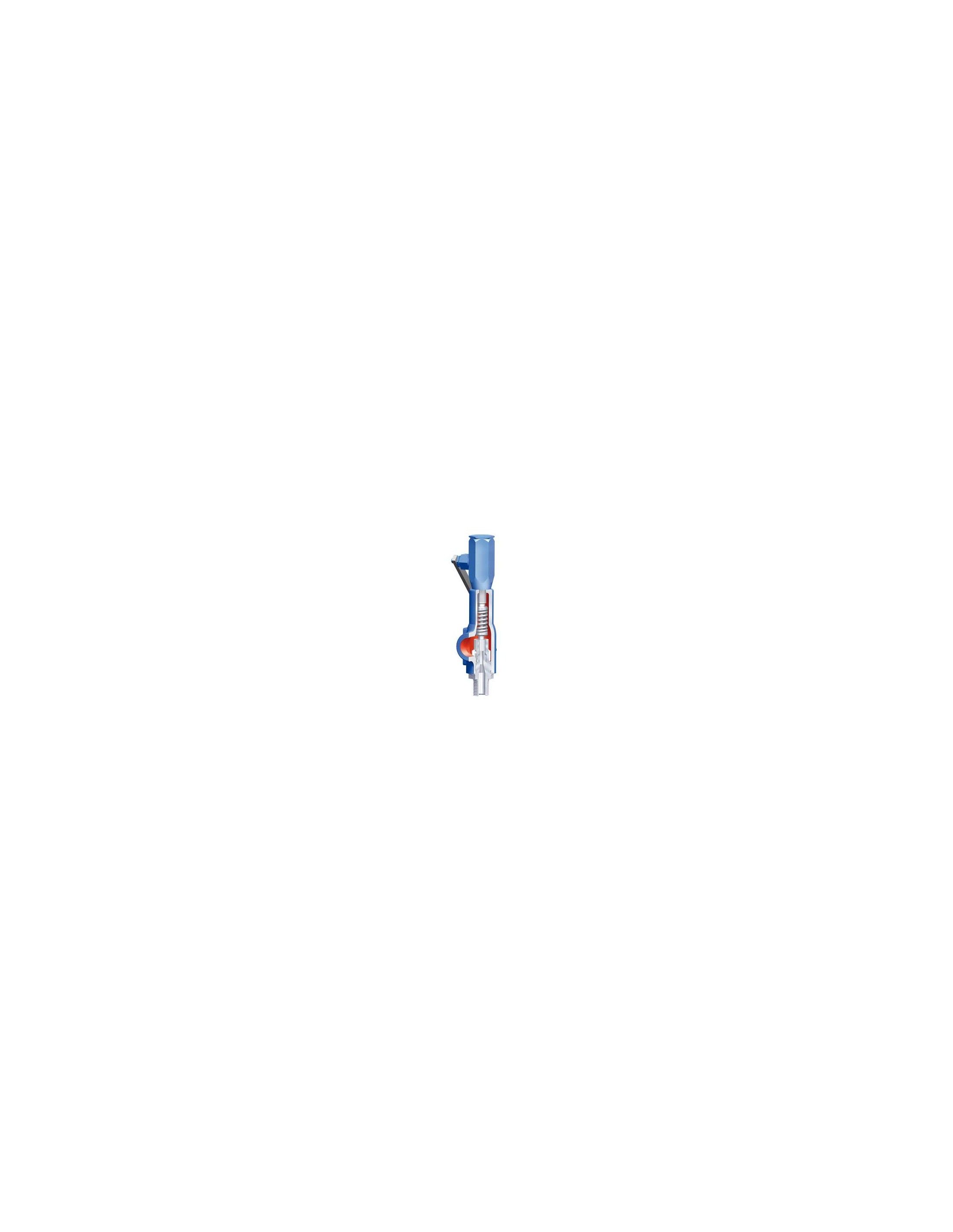

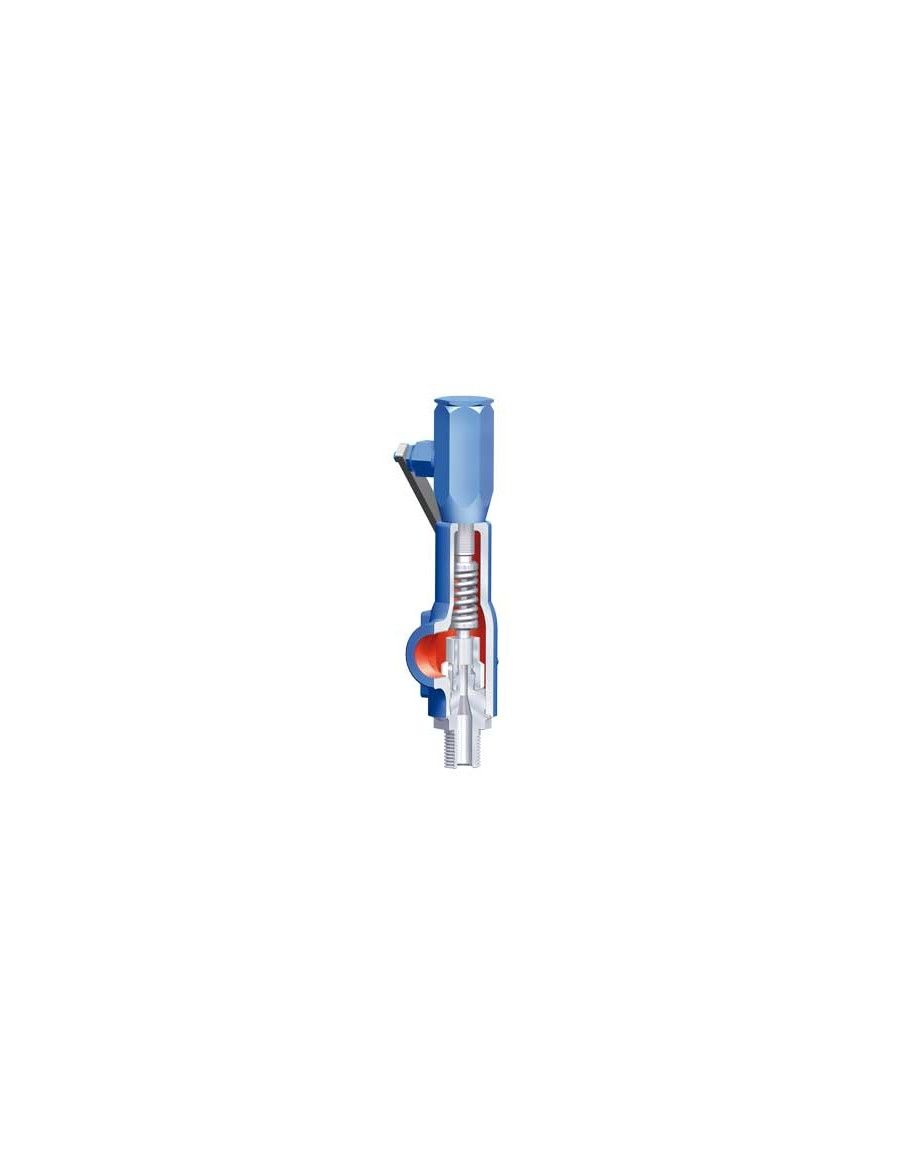

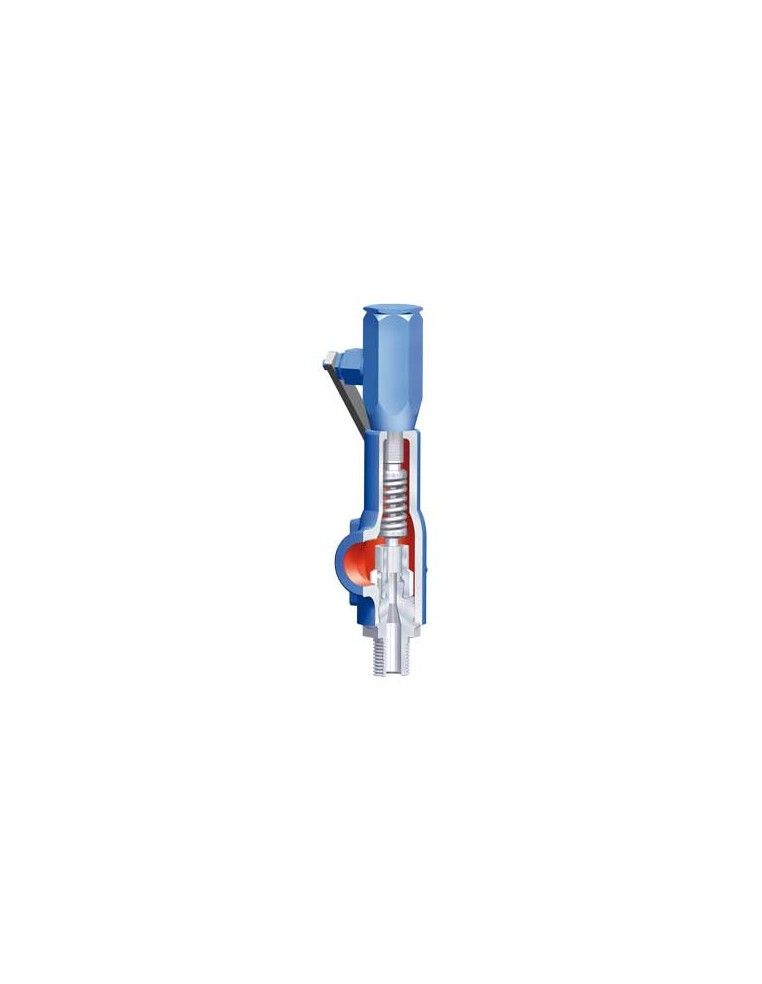

The Safety Valves API526 - SAFE REYCO RL Series by ARI are designed for high-performance pressure relief applications. Key features include a direct-loaded spring design with a wear-resistant seat/disc and precision disc alignment. These valves are available in various materials, such as SA216WCC, SA351CF8M, and Chrom-Vanadium for the spring, with Inconel options for high-temperature applications. They support a wide range of pressure classes, including ANSI 1500, 300, 600, 900, and 1500, and can handle temperatures up to 750°F for Inconel springs and 650°F for chromium vanadium springs. The valves come in different orifice sizes, ranging from 0.078 in² to 0.563 in², and are available in sizes from 1/2" x 1" to 2" x 2". They offer various inlet and outlet connection types, including NPT threads, socket weld, butt weld, and flanges. Suitable for gases, vapors, and liquids, these valves are ideal for industries requiring pressure relief in high-pressure environments, such as steam, air, and water systems. Capacity data is provided for air and gas, with charts detailing flow capacities for different valve sizes and set pressures, including 10% overpressure. Customization options include different connection types like NPT, flanges (ANSI B16.5), socket weld ends, and butt-weld ends. The document also outlines the necessary details for valve sizing, such as mass flow, temperature, set pressure, and back pressure for various mediums. Spring materials include Chrom-Vanadium for up to 650°F and Inconel for temperatures above 650°F.
Standard (Options)
  • ANSI
Connection (Options)
  • NPT
  • Flanged
  • Socket Weld
  • Butt Weld
Material (Options)
  • SA216WCC
  • SA351CF8M
Pressure Rating (Options)
  • 1500 lbs

Datasheet and documents

Description

Key Features:

  • Design: Direct-loaded spring, wear-resistant seat/disc, and precision disc alignment.
  • Materials: The valves are available in various materials such as SA216WCC, SA351CF8M, and Chrom-Vanadium for the spring, with options like Inconel for high temperatures.
  • Pressure and Temperature Range:
    • Available in various pressure classes, including ANSI 1500, ANSI 300, ANSI 600, ANSI 900, and ANSI 1500.
    • Temperature ranges up to 750°F for Inconel springs and 650°F for chromium vanadium springs.


Valve Sizes:

  • Orifice Sizes: The valves come with different orifice sizes: A (0.078 in²), D (0.122 in²), B (0.152 in²), C (0.235 in²), and G (0.563 in²).
  • Sizes Available: From 1/2" x 1" to 2" x 2", with various inlet and outlet connection types such as NPT threads, socket weld, butt weld, and flanges.


Applications:

  • The valves are designed for use with gases, vapors, and liquids and are suitable for a wide range of industries requiring pressure relief.
  • They are capable of handling high-pressure environments and are used in systems like steam, air, and water.


Capacity Data:

  • Capacity for Air and Gas: The document includes capacity charts for different valve sizes and set pressures, including 10% overpressure.
  • Examples: The flow capacities are detailed for a range of orifice sizes, from smaller sizes (e.g., 0.078 in²) to larger orifices (e.g., 0.563 in²) based on the set pressure.


Customization Options:

  • The valves are customizable with different connection types, such as NPT, flanges (ANSI B16.5), socket weld ends, and butt-weld ends.


Sizing and Selection:

  • The document specifies the required details for valve sizing, such as mass flow, temperature, set pressure, and back pressure for different mediums (gases or liquids).


Spring Materials and Options:

  • Chrom-Vanadium Springs for up to 650°F and Inconel Springs for temperatures above 650°F.
