Regulation balancing Valve - T15 | Brandoni

Regulation balancing Valve - T15 | Brandoni

Name: Regulation balancing Valve - T15 | Brandoni
Brand: Brandoni Valves
SKU: Regulation balancing Valve - T15 | Brandoni

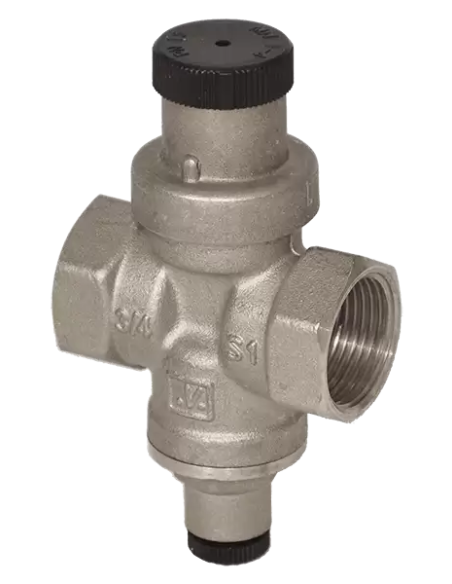

The Regulation Balancing Valve - T15 by Brandoni is a direct-acting, pressure-reducing valve designed for efficient pressure control in various systems. Constructed from sandblasted or nickel-plated brass, this valve is available in multiple versions to accommodate different pressure needs: the T15 B (PN15) with a gauge connection for sizes 3/8" to 3/4", the T15 C (PN25) with two gauge connections for sizes 1/2" to 4", and the T15 C.2W0, an ADZ version that is WRAS certified, available in sizes 1/2" to 2". Suitable for use with water and compressed air, these valves are ideal for installation in water plants, boiler supply systems, and hydraulic plants with direct supply from the main water system. They can be installed in either horizontal or vertical orientations, offering flexibility for various applications.

Standard (Options)

Connection (Options)

ISO 228-1

Material (Options)

Brass CW 617N
Brass DZR

Pressure Rating (Options)

PN 15
PN 25

Seat (Options)

Datasheet and documents

Description

DIRECT ACTING, PRESSURE REDUCING VALVE,WITH PISTON, F/F THREADED END

The series T15 F/F threaded-end pressure reducing valves are suitable for reducing and controlling the pressure.

They are made of sandblasted or nickel-plated brass, and are available in 2 versions: T15 B > PN15 with gauge connection, sizes 3/8" - 3/4" T15 C > PN25 with 2 gauge connections, sizes 1/2" - 4" T15 C.2W0 > ADZ version WRAS certified, sizes 1/2 "- 2".

Suitable for water and compressed air.

YES: for installation in water plants for single user units, boiler supplying plants, hydraulic plants with direct supply from main water system.

They can be installed in a horizontal or vertical position.
