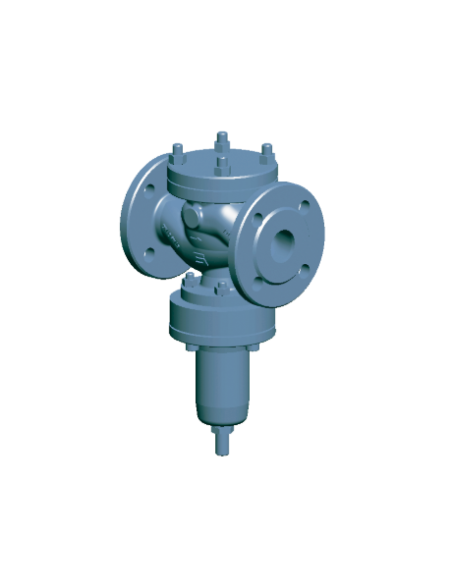

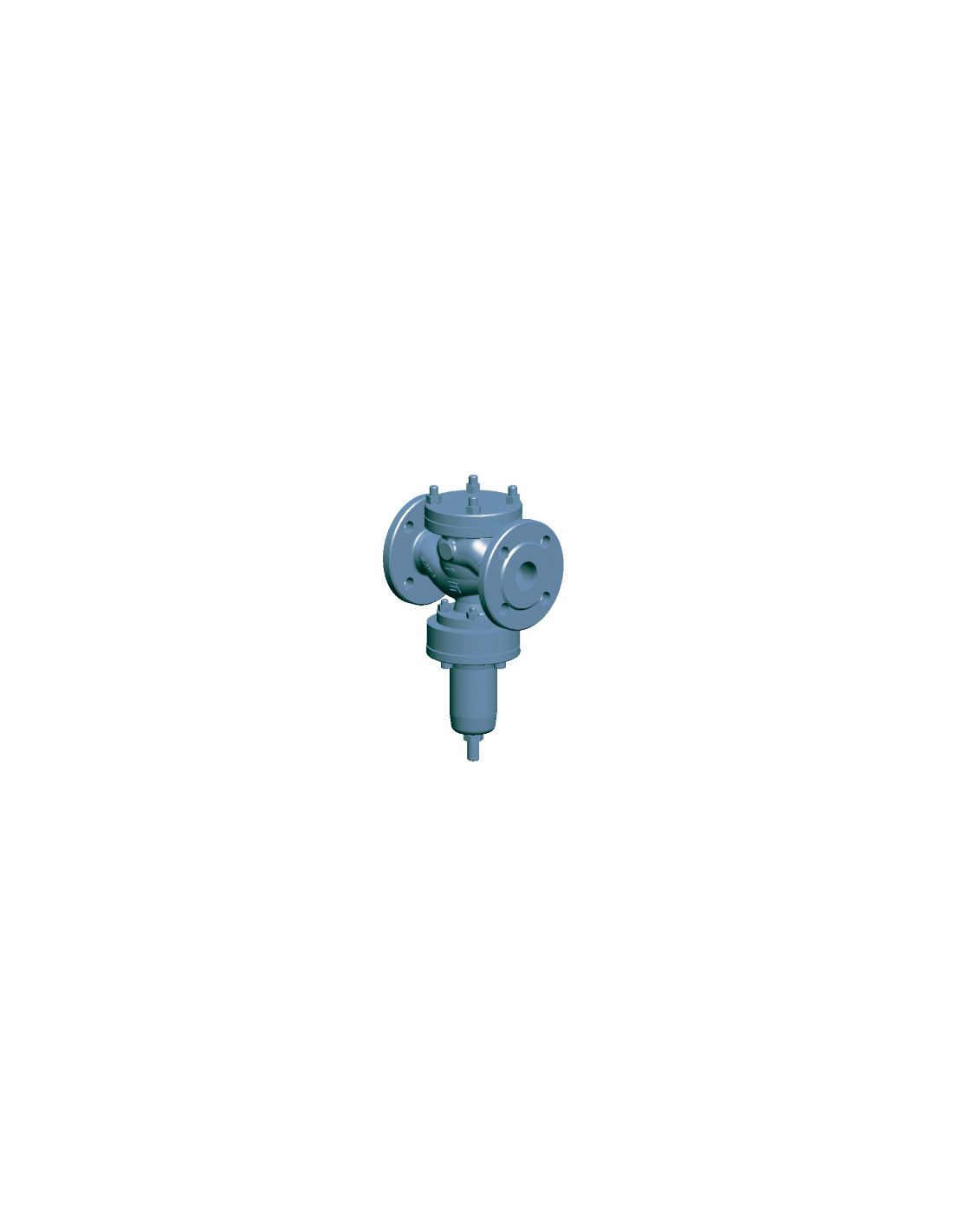

The REAH20-M by Miyawaki is a direct-acting pressure reducing valve designed for use with both liquids and gases. This valve is engineered to automatically reduce a higher inlet pressure to a stable, lower outlet pressure, ensuring optimal performance and safety in various applications. Its robust construction and precise control make it suitable for a wide range of industrial settings, providing reliable pressure regulation and enhancing system efficiency.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.7357
  • Cast Steel
  • GS 17 CrMo 55
Pressure Rating (Options)
  • PN 63
  • PN 100

Description

Features

Self-acting pressure reducing valves for liquids and gases

The model REA20 is a direct acting pressure reducinfgvalve designed for compressible media, such as air and various gasses and for incompressible media such as water, oil and others. The valve is self acting and does not require external energy.

Superb durability

Highly durable and carefully selected components, a 360° free rotating, conical plug and the lack of a sensitive diaphragm ensure outstanding lifetime of this valve.

Diaphram free design

The valve operates with an O-ring sealing and a piston design. Due to this design, no daiphragm and no external sensing line is required.

Wide range of pressure reduction

Due to careffully selected springs an outstanding reduction ratio of 25:1 is achieved.

Operating features of direct acting pressure reducing valves

Pressure changes on the downstream side are detected in the detection chamber, and the degree of opening of the valve is directly adjusted to keep the pressure on the downstream side at set pressure.

Options available

- additional pressure gauges

- tailored connections for special applications

- softsealing for leakage class VI

Typical applications

Ideally installed in any fluid system or technical gases, such as lube oil lines, pre-heater units, natural gas lines, pressurized air lines, LNG or gasoline tank systems. Fits perfectly for other technical gases such as Atzetylene, Ammonia, Carbondioxide.

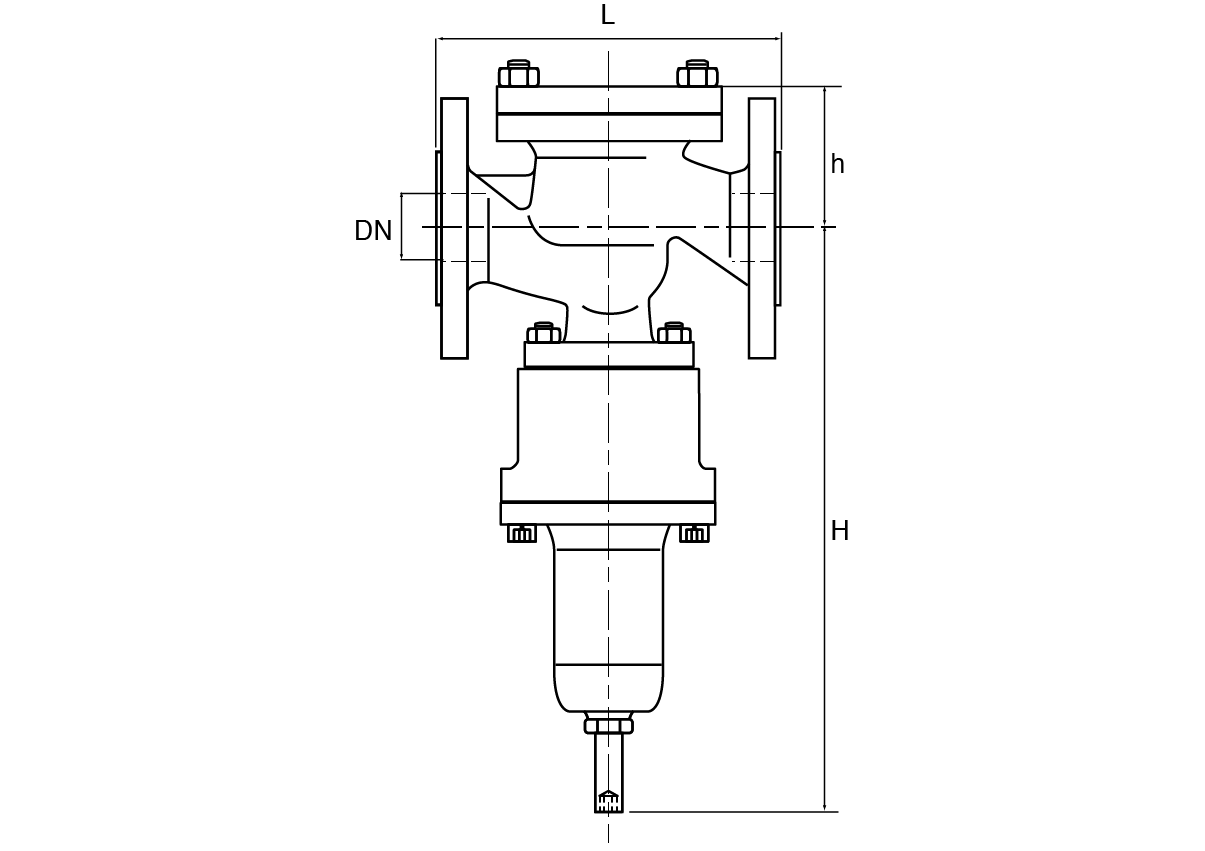

Dimensions/Weight

Size

(DN)

Dimension (mm)

Kvs ValueKvs ValueKvs

Value

LHh
PN63-100
15210289821,8
20230663,2
25230665,0
32260817,9
402608313,0
5030041610020,0
6534044511334,0
8038055314051,0
10043058215480,0

Specifications

Body Material

Cast steel

G17CrMo 5-5

(1.7357)

Body design conditions

 PN63PN100
Max. design pressure (MPa)           PMA6,310,0
Max. design temperature (℃)        TMA530530
Max. operating pressure (MPa)     PMO6,310,0
Max. operating temperature (℃)  TMO530530

Pressure - Temperature rating

PNTemperature ℃
-10・・・+50-10・・・+50-10・・・+50100150200250300350400450500530
Pressure MPa
636,36,36,36,36,25,75,35,04,83,82,2
10010,010,010,010,09,89,18,48,07,66,13,5

Secondary pressure ranges

Secondary

pressure range

DN15-DN40DN50DN65DN80DN100DN125-DN200
MPaSpring number per size
0,05-0,1928273837On request
0,1-0,16827263736
0,16-0,25726253635
0,25-0,4625243534
0,4-0,63524233433
0,63-1,0423223332
1,0-1,6322213232

Secondary pressure ranges higher than 1,6 MPa and lower than 0,05 MPa on request available.

Capacity Chart
