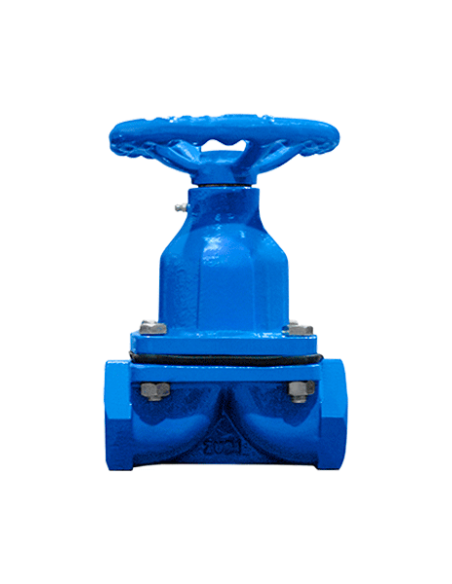

The Diaphragm Valve - T99 by Zubi is a high-performance valve designed for precise fluid control in various industrial applications. It features a robust construction with a flexible diaphragm that ensures a tight seal and prevents leakage. The T99 model is known for its durability, ease of maintenance, and suitability for handling corrosive or abrasive fluids. Its design allows for smooth operation and reliable performance, making it an ideal choice for industries such as chemical processing, water treatment, and pharmaceuticals.
Standard (Options)
  • DIN
Connection (Options)
  • BSP
  • NPT
Material (Options)
  • EN-GJS-500
  • AISI 316 (Stainless Steel)
Pressure Rating (Options)
  • PN 10

Description

Main Features

  • Monoblock body, one piece cast.
  • 100% leak tightness performance guaranteed.
  • The valve can be installed in any position.
  • High strength woven Diaphragm reinforced design.
  • Bolted bonnet design.
  • Easy maintenance: Three part design (Body, diaphragm and actuator) allows maintenance and actuator retrofitting without removing the valve body from the pipeline.
  • Bidirectional shut off design.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • Thread NPT
  • Thread BSP

*Other connections on request

SIZES & PRESSURES

  • Manual valves:
  • DN15 to DN80: 10 bar

For actuated valves, please refer to the appropriate datasheets.

TIGHTNESS

  • Watertight

MATERIALS

BODY  GGG50, CF8M (AISI316) Others on request.

DIAPHRAGM

  • Butyl (BU) Blue
  • Aliment butyl (BUA)
  • Reinforced butyl (BUR)
  • Natural rubber (BL) White
  • Natural aliment rubber (BLA)
  • EPDM (EP)
  • Hypalon (HY) Green
  • Neoprene (NE) Red
  • Nitrile (NI) Yellow
  • Silicone (SI)
  • PTFE (TE)
  • Viton (VI) Orange

*The abbreviations or the identification colours are in the flap of the diaphragm. *The pneumatic actuator diaphragm made in Natural rubber (BL).

BONNET GG25 Others on request.

ACTUATORS

Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box.

ACCESSORIES AND OPTIONS

Position indicators, switches, solenoid valves, padlocks, mechanical limit switches, positioner 4/20mA.
