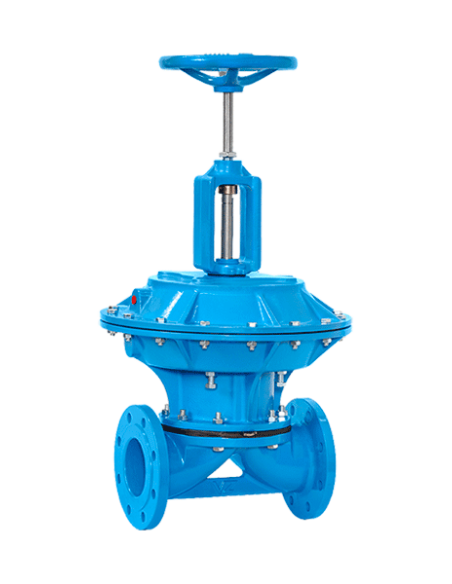

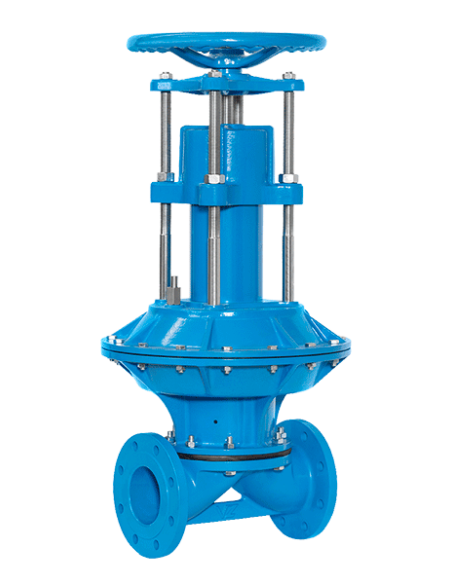

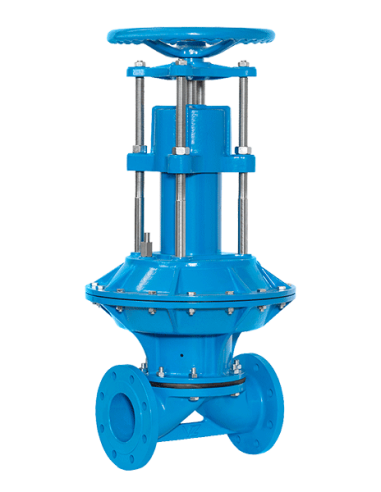

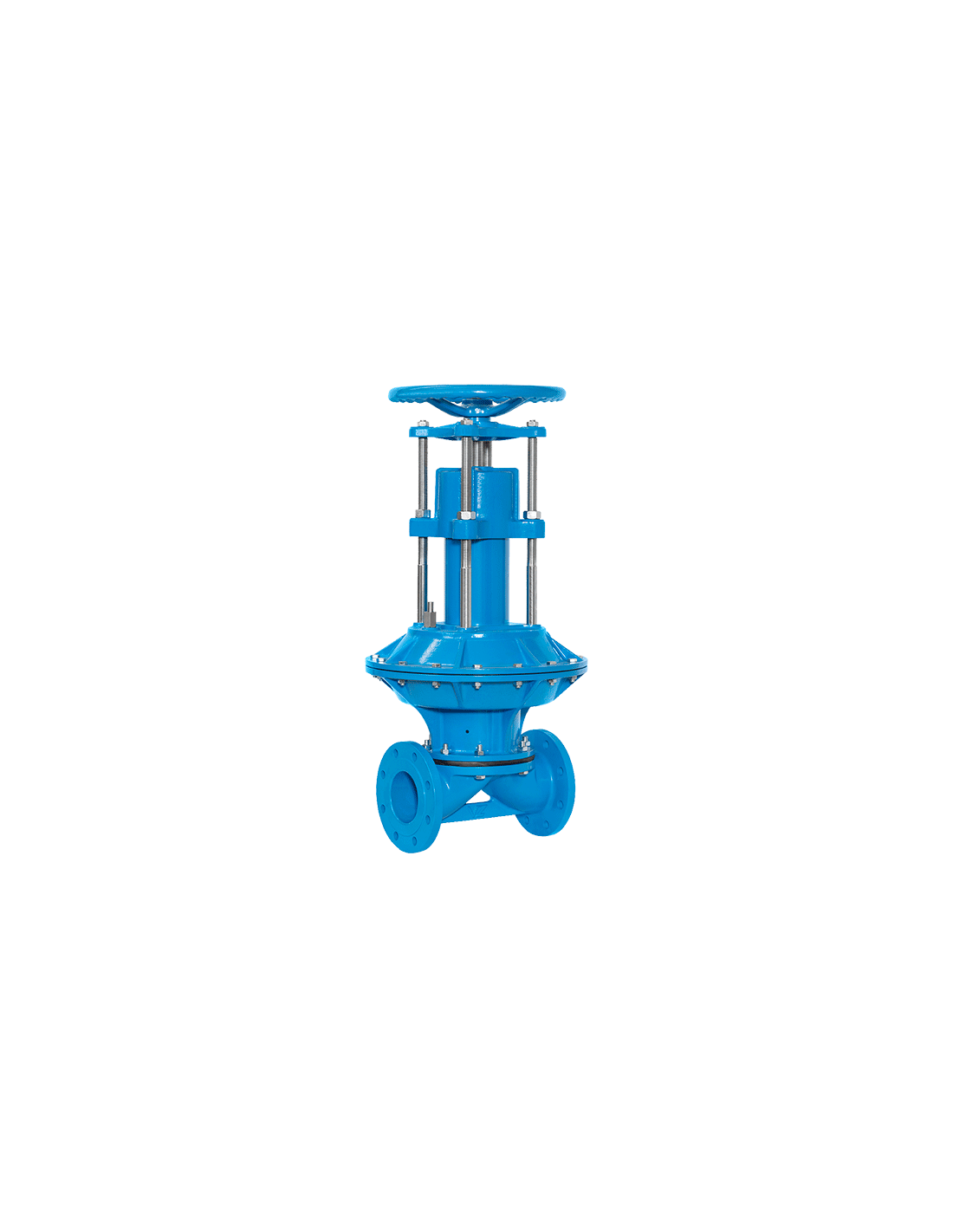

The Diaphragm Valve - T100 by Zubi is a high-performance valve designed for precise fluid control in various industrial applications. It features a robust construction with a flexible diaphragm that ensures a tight seal, minimizing the risk of leaks. The T100 model is known for its durability, ease of maintenance, and reliable operation under demanding conditions. Its design allows for smooth flow regulation, making it ideal for use in processes involving corrosive or viscous fluids. The valve is available in multiple sizes and materials to suit different system requirements.

Description

Main Features

  • Monoblock body, one piece cast.
  • 100% leak tightness performance guaranteed.
  • The valve can be installed in any position.
  • High strength woven Diaphragm reinforced design.
  • Bolted bonnet design.
  • Internal rubber and PTFE based lined and unlined options.
  • Easy maintenance: Three part design (Body, diaphragm and actuator) allows maintenance and actuator retrofitting without removing the valve body from the pipeline.
  • Bidirectional shut off design.

DIRECTIVAS

  • DIR 2006/42/CE (machinery)
  • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
  • DIR 2014/34/EU (ATEX) Area 2&22

Technical Data

FLANGE CONNECTION

  • PN6/PN10/PN16/PN25/PN40
  • ANSI125/150
  • BST E / BST D
  • JIS 5K JIS10K
  • AS-2129-D/E

Face to face as per EN558 serie 1 DIN-3202 and EN558 serie 7 BS-5156.

SIZES & PRESSURES

  • Manual valves:
  • DN15 to DN150: 10 bar
  • DN200 to DN300: 2 bar
  • DN350: 4 bar

For actuated valves, please refer to the appropriate datasheets.

TIGHTNESS

  • Watertight

MATERIALS

BODY  GG25, GGG50, A216 WCB, CF8 (AISI304), CF8M (AISI316), CF3M (AISI316L), CN7M (CARPENTER20),RG7 (BRONZE), 254SMO, 654SMO, AISI310, AISI904, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti.

LINING HARD RUBBER/EBONITE, ANTIABRASIVE NATURAL RUBBER, NEOPRENE, BUTYL, NITRILE (NBR), HYPALON, HALAR (ECTFE), RILSAN (POLIAMIDE).

DIAPHRAGM

  • Butyl (BU) Blue
  • Aliment butyl (BUA)
  • Reinforced butyl (BUR)
  • Natural rubber (BL) White
  • Natural aliment rubber (BLA)
  • EPDM (EP)
  • Hypalon (HY) Green
  • Neoprene (NE) Red
  • Nitrile (NI) Yellow
  • Silicone (SI)
  • PTFE (TE)
  • Viton (VI) Orange

*The abbreviations or the identification colours are in the flap of the diaphragm. *The pneumatic actuator diaphragm made in Natural rubber (BL).

BONNET GG25 Others on request.

ACTUATORS

Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box.

ACCESSORIES AND OPTIONS

Position indicators, switches, solenoid valves, padlocks, mechanical limit switches, positioner 4/20mA.
