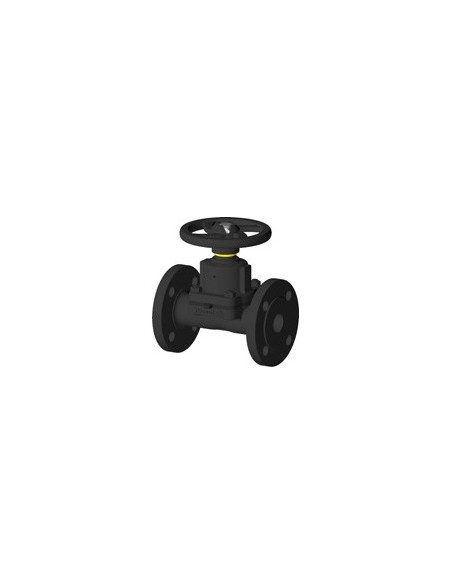

The DIAVAL® Fig. S diaphragm valve is a straight-through, bidirectional valve designed for controlling the flow of service fluids in abrasive applications, water treatment plants, and the process industry. It features a bolted bonnet and a seatless design, utilizing a diaphragm as the closure element, with a rising handwheel for operation. The valve is known for its easy and cost-effective maintenance, primarily through diaphragm replacement. It can be operated manually via a handwheel or with an actuator. The valve range offers diverse design combinations, including various materials for the body, linings, and diaphragms, and supports nominal sizes up to DN300 and design pressures up to PN16. It is suitable for applications involving water, process fluids, and abrasive media. The valve is certified with several declarations of conformity, including ATEX and EAC.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • EN-JS 1030 (GGG40) Ductile Iron
  • EN-JL 1040 (GG25) Cast iron
Pressure Rating (Options)
  • PN 10

Datasheet and documents

Description

Diaphragm valves straight through type DIAVAL® Fig. S

Diaphragm valves straight through type Fig. S

Fig. SStraight through type diaphragm valves, bidirectional, for stopping the flow of the service fluid in abrassive applications, water treatment plants or process industry. Valves are bolted bonnet, seatless design, with a diaphragm as closure element, with rising handwheel. Easy and inexpensive maintenance, by change of diaphragm. Operated by handwheel or actuator.

Specification of the range: Diverse design combinations by materials of construction of bodies, linings and diaphragms, nominal size range (up to DN300), design pressure range (up to PN16), as well as operation style and accessories.

Other typical denominations: Diaphragm valves straight through type

Applications: Water, process, abrasive media, etc.

Certifications: Diaphragm valves weir type straight through typedeclaration of conformity atex, Diaphragm valves weir type straight through type declaration of conformity, Eac declaration 010, Eac declaration 032
