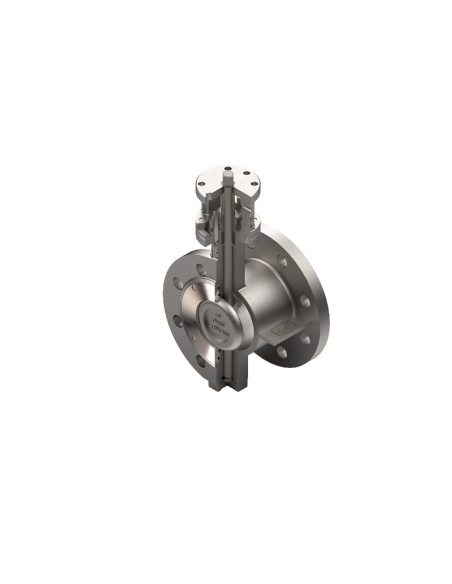

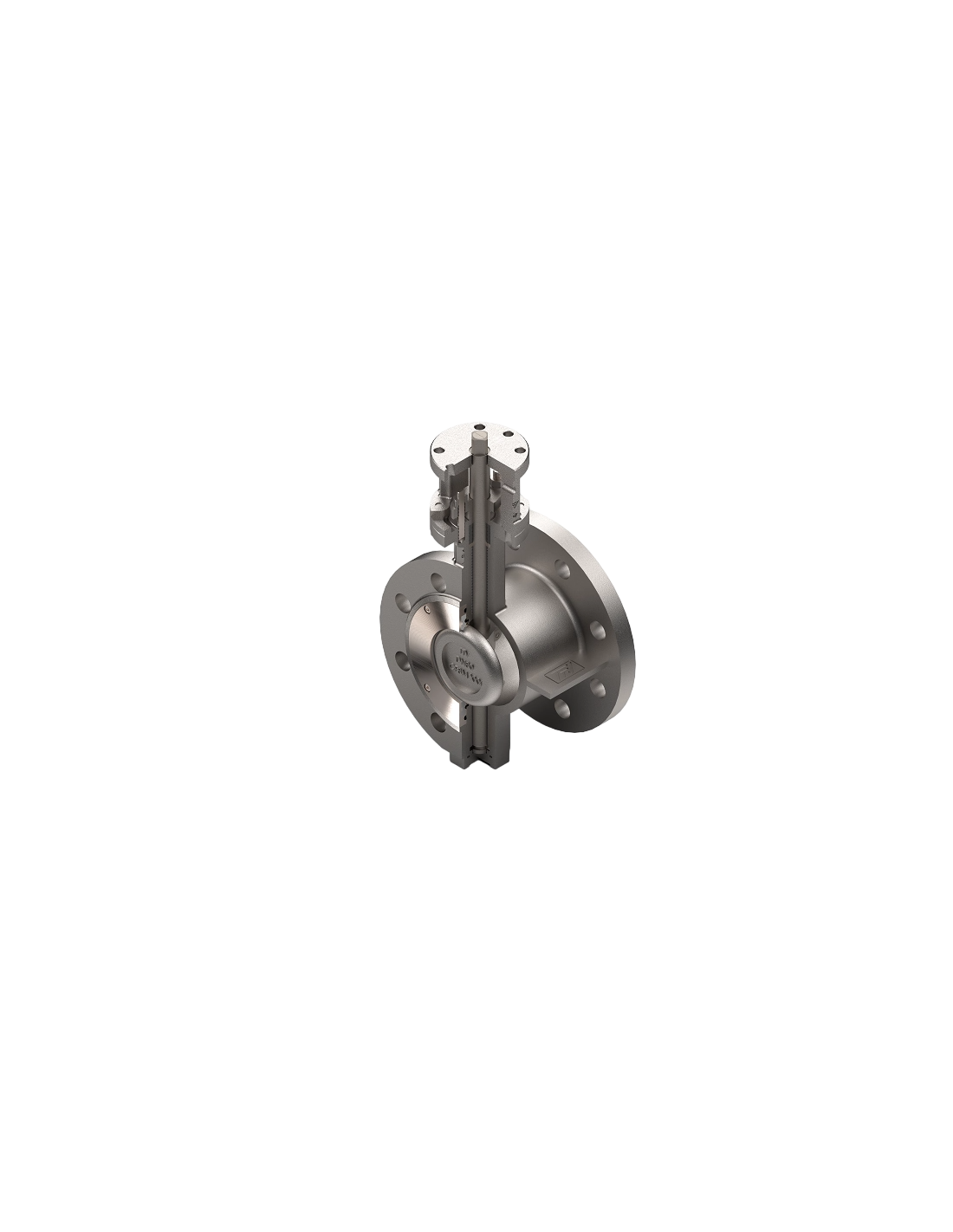

The Butterfly Valve High Performance - FIRE SAFE COLOSSUS by TTV Valves is a robust and versatile valve designed for a wide range of industrial applications. It is available in sizes ranging from DN32 to DN600 and is engineered to fit between flanges according to various international standards, including EN 558, ISO 5752, and API 609. The valve supports installation with PN10/16/25/40 and ANSI 150/300 Lbs. flanges, and features an ISO 5211 upper flange connection for easy integration with different control systems. This high-performance valve is constructed with a stainless steel coating and is capable of withstanding a maximum working pressure of 25 bar. It boasts a double axis displacement design, ensuring minimal friction and longer service life. The valve provides complete tightness with a Class VI - ISO 5208 (Rate A) self-sealing mechanism, allowing for low torque operation and easy seat replacement due to its offset axle. The FIRE SAFE COLOSSUS is lightweight and cost-effective, offering three types of seats: 100% PTFE / R-PTFE, INCONEL, and Fire Safe. It is equipped with a stainless steel butterfly and shaft, and is compatible with various actuators, including lever, pneumatic, electric, and hydraulic options. The valve is designed to meet rigorous standards such as TA-LUFT VD 2440 ISO 15848, PED 2014/68, ATEX 2014/34/EU, and SIL IFC 61508. Ideal for applications involving vacuum services, chemicals, petroleum products, LPG/LNG, steam, seawater, and more, the FIRE SAFE COLOSSUS is also suitable for use with corrosive liquids, thermal oil, and in fire installations, making it a reliable choice for demanding environments.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A216 WCB
  • ASTM A351 CF8M
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • 25% G.F. PTFE

Datasheet and documents

Description

Manufacturing range: DN32 - DN600

Distance between flanges: EN 558 Series 20, Serie 13 - ISO 5752 Series 20, Serie 13 - API 609, EN 593,  - BS 5155, MSS-SP-68

Installation between flanges: PN10/16/25/40 - ANSI150 Lbs./300 Lbs.

Flanges: ISO 7005, DIN 2501, BS-4504, ANSI Class 150: ANSI B16.5

Upper flange connection: ISO 5211

Tests: API 598, ANSI/ASME B16.34, BS1560, EN593

Coating: Stainless steel

Work Pressure: DN32 - DN600, Max. 25 bar.

Properties

  • Double axis displacement.
  • Longer useful life, minimal friction between the disc and the seat.
  • Complete tightness. Class VI - ISO 5208 (Rate A)
  • Self-sealing mechanism that guarantees a tight seal and low torque.
  • Offset axle allows for easy seat replacement.
  • Quick on-site maintenance.
  • High performance.
  • Low cost.
  • Light weight.
  • Same construction, three types of seat: 100% PTFE / R-PTFE, INCONEL, Fire Safe.
  • Stainless steel butterfly.
  • Stainless steel shaft.

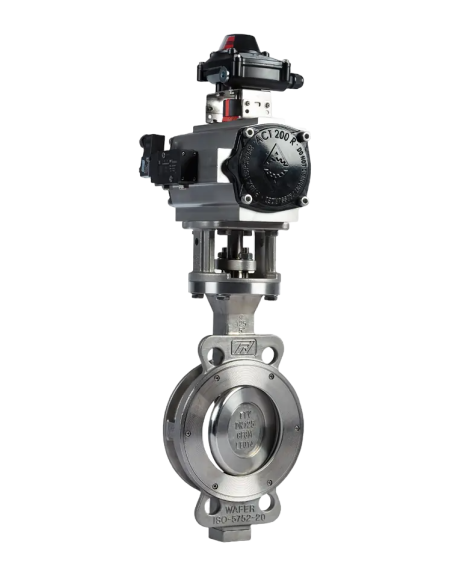

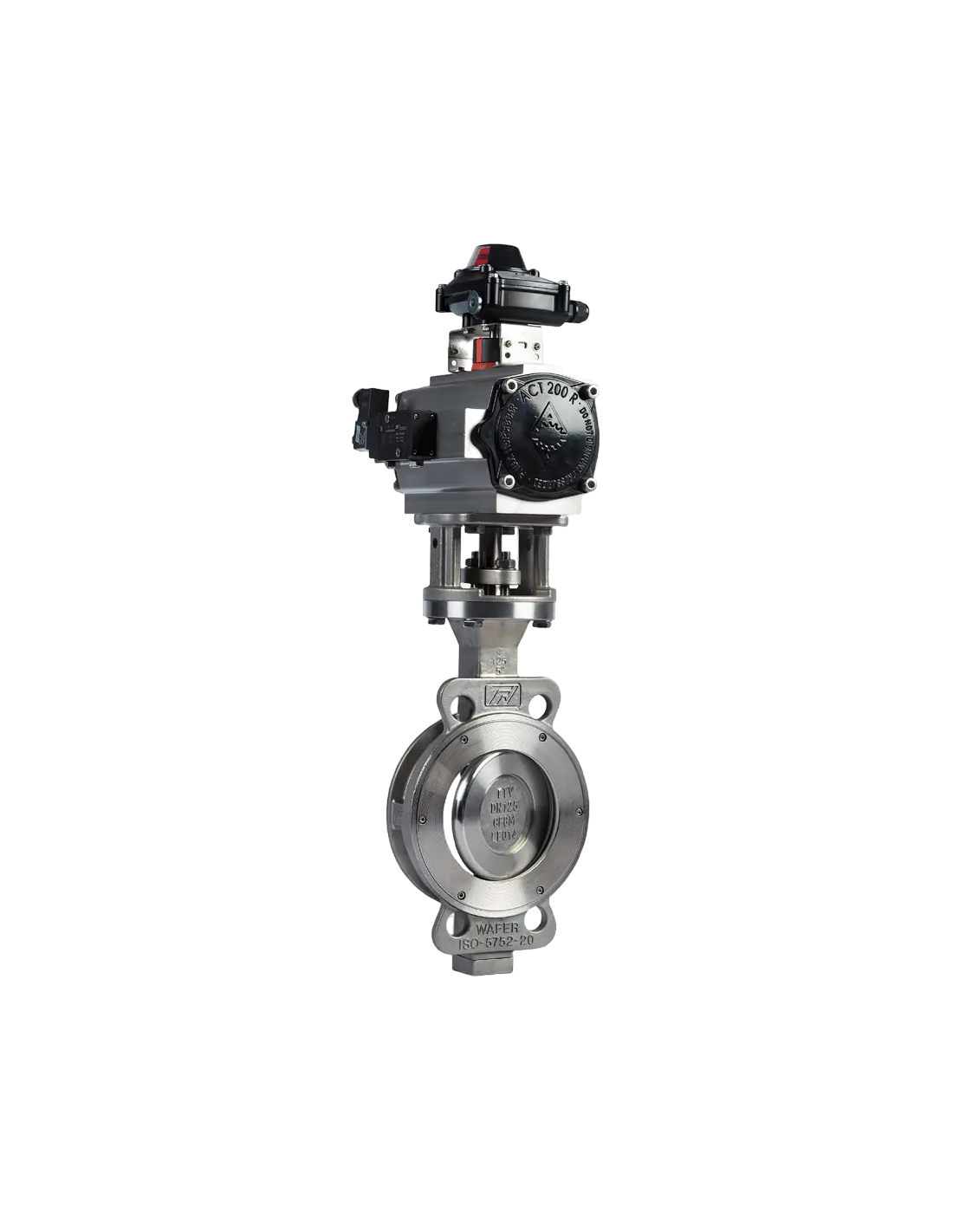

  • Possibility of operation with different controls (lever control, reducer, pneumatic, electric, hydraulic actuator...)
  • Standard and threaded retainer.
  • Valve construction with vacuum-safe R-PTFE seal.
  • TA-LUFT VD 2440 ISO 15848 design.
  • PED 2014/68.
  • ATEX 2014/34/EU - ATEX II 2GDc.
  • SIL IFC 61508.

General applications

  • Vacuum services
  • Chemicals
  • petroleum products
  • Ethylene
  • LPG/LNG
  • Hydrocarbon derivatives
  • Steam
  • Air
  • Seawater
  • saturated water
  • saturated steam
  • Heat-insulated gases
  • Bitumen / Asphalt
  • Corrosive liquids
  • thermal oil
  • Cogeneration
  • Fire installations
  • Abrasives
  • Sludge
