    KITO® detonation flame arresters

    If potentially explosive gas-air mixtures ignite in a section of pipeline, a deflagration can turn into a detonation under certain instances.

    Standard (Options)
    • DIN
    Connection (Options)
    • Flanged
    Material (Options)
    • 1.4571
    • Steel
    Pressure Rating (Options)
    • PN 16
    • PN 40

    Datasheet and documents

    Description

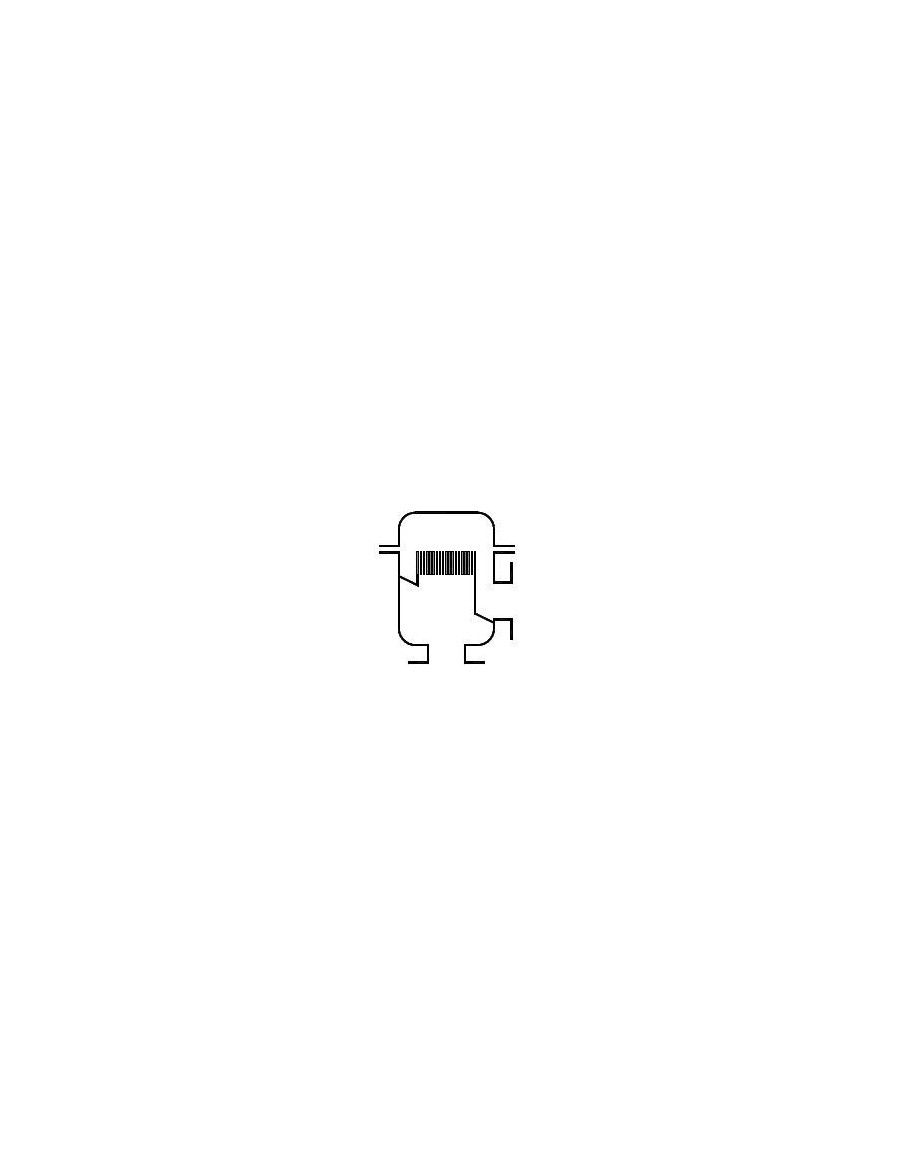

    KITO® FD4-Det4-IIB3-…-1.2

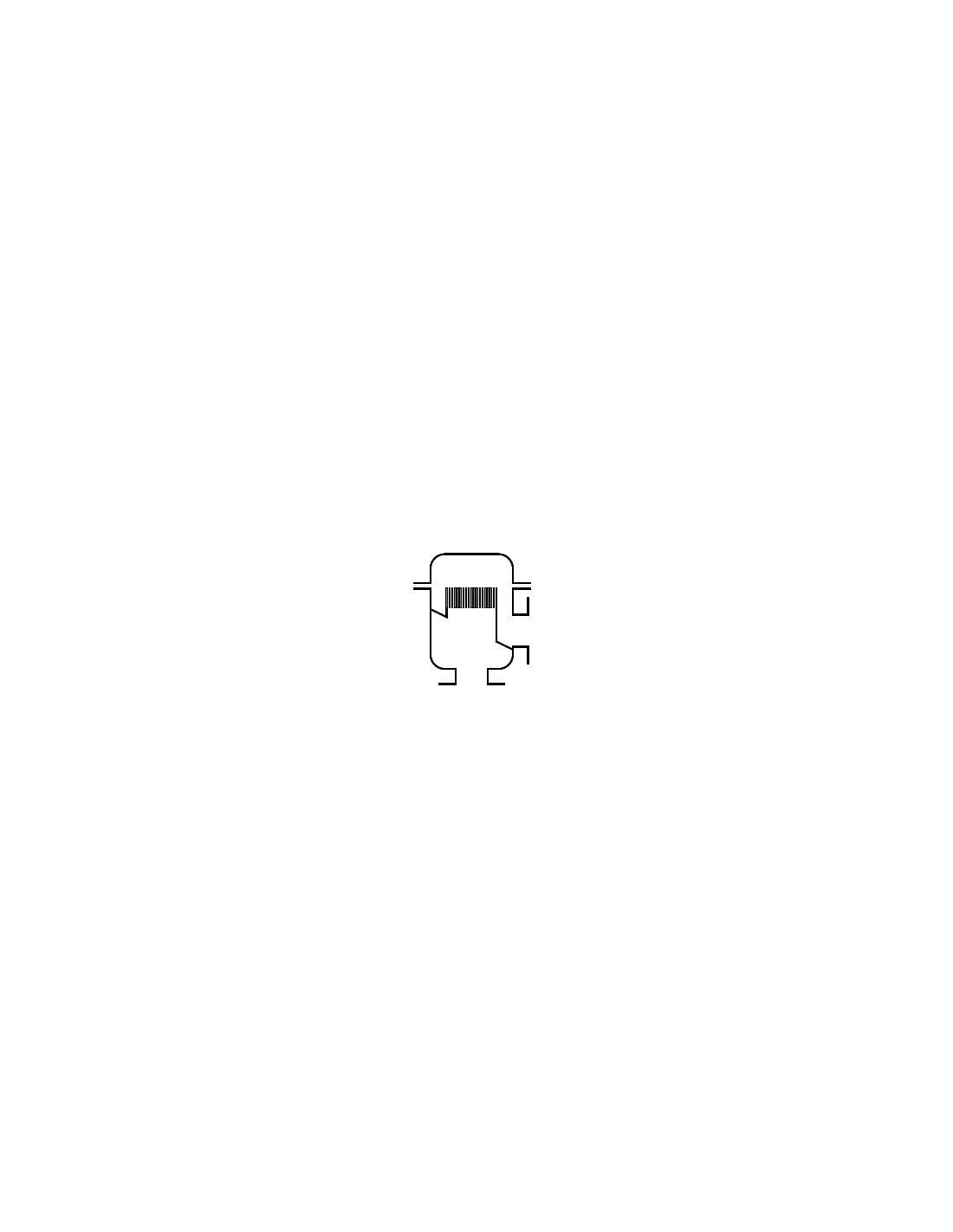

    KITO® FD4-Det4-IIB3-…-1.2-T

    • For installation into pipes to protect containers and components against stable detonation of flammable liquids and gases.
    • Tested and approved as detonation flame arrester type 4.
    • Approved for all substances of explosion groups IIA1 to IIB3 with a maximum experimental safe gap (MESG) ≥ 0.65 mm.
    • Working unidirectional in pipes, whereby an operating pressure of 1.2 bar abs. and an maximum operating temperature of 60 °C must not be exceeded.
    • Provided with one temperature sensor (PT 100) the armature is certified against short time burning from one side.
    • The installation is not dependent on the position and both directions of flow are possible.
    • During installation, please observe the direction of detonation and the indication „protected side“.
