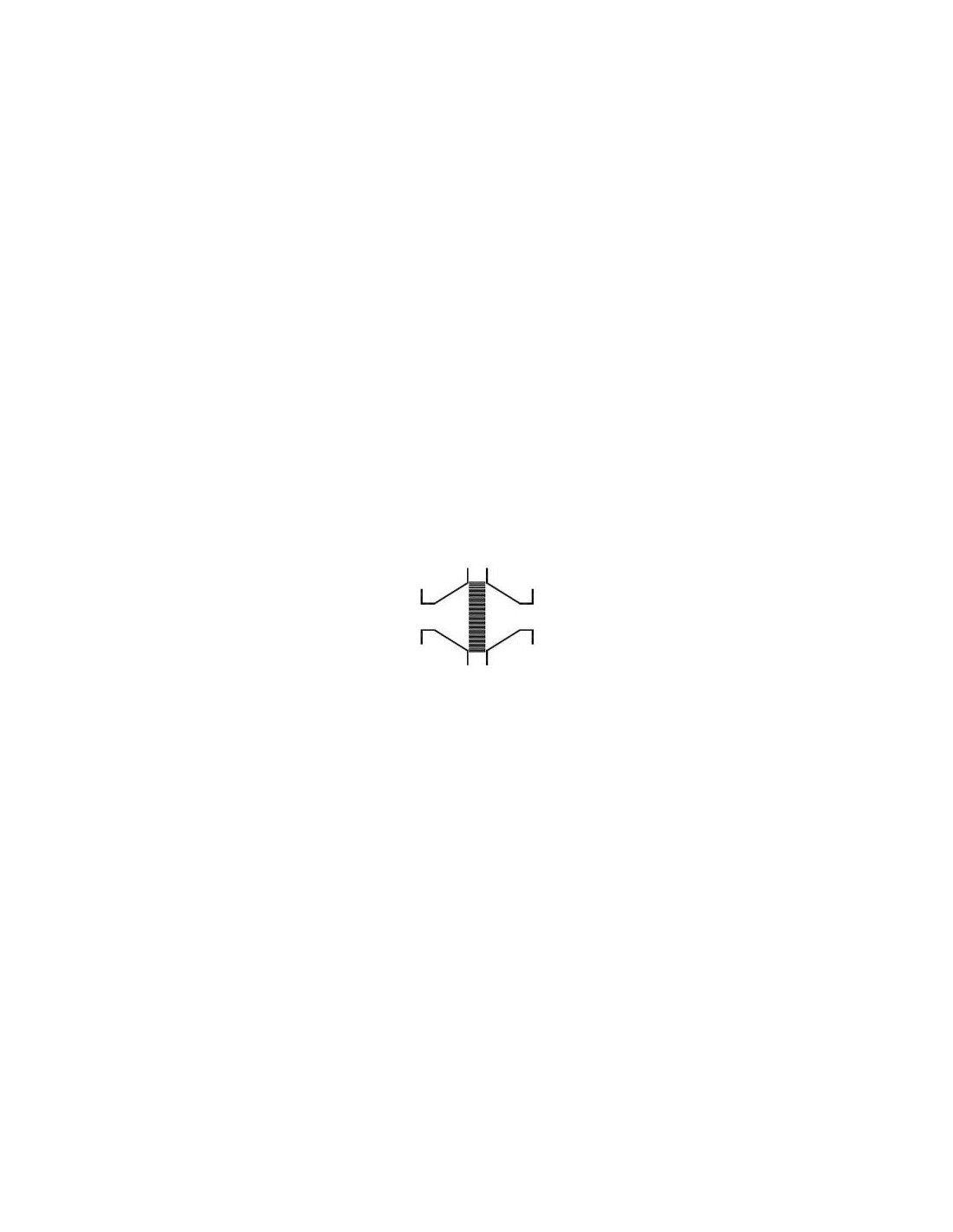

    KITO® deflagration flame arrester

    If potentially explosive gas-air mixtures ignite in a section of pipeline, the explosion starts out as a deflagration propagating at relatively low pressures and flame speed below speed of sound.

    Standard (Options)
    • DIN
    Connection (Options)
    • Flanged
    Material (Options)
    • 1.0619
    • 1.4408
    Pressure Rating (Options)
    • PN 10
    • PN 16

    Datasheet and documents

    Description

    KITO® INE-I-…/…-1.5

    KITO® INE-I-…/…-1.5-T (-TT)

    • For installation into pipes to the protection of vessels and components against deflagration of flammable liquids and gases.
    • Approved for all substances of explosion group IIA1 (old: I) with a maximum experimental safe gap (MESG) ≥ 1.14 mm.
    • Bi-directionally working in pipes, whereby an operating pressure of 1.5 bar abs. and an operating temperature of 60 °C must not be exceeded.
    • The distance be-tween a potential ignition source and the flame arrester must not exceed 50 times the inner pipe diameter.
    • An installation into horizontal and vertical pipes is permissible.
    • To detect a thermal load on the KITO® flame arrester element in operation, a temperature sensor can be implemented as an option into the flame arrester body.
    • Proof against “stabilized burning” and withstand this up to a max. burn time BT = 1.0 min.
