    The Temperature Controller TEMPTROL - 775 by ARI is a versatile device designed for precise temperature regulation across various applications. It is suitable for use in industrial heating and ventilation systems, residential settings, marked warehouses, shipbuilding, and cooling systems. The controller is compatible with different mediums, including fluids, air, and steam, making it a flexible solution for diverse temperature control needs. With an eClass-No. of 37012290, the TEMPTROL - 775 is a reliable choice for maintaining optimal temperature conditions in a wide range of environments.

    Standard (Options)
    • DIN
    Connection (Options)
    • Flanged
    Material (Options)
    • EN-JL 1040 (GG25) Cast iron
    • EN-JS 1049
    • 1.0619+N
    • 1.4408
    Pressure Rating (Options)
    • PN 16
    • PN 25
    Flow (Options)
    • Straight Way

    Datasheet and documents

    Description

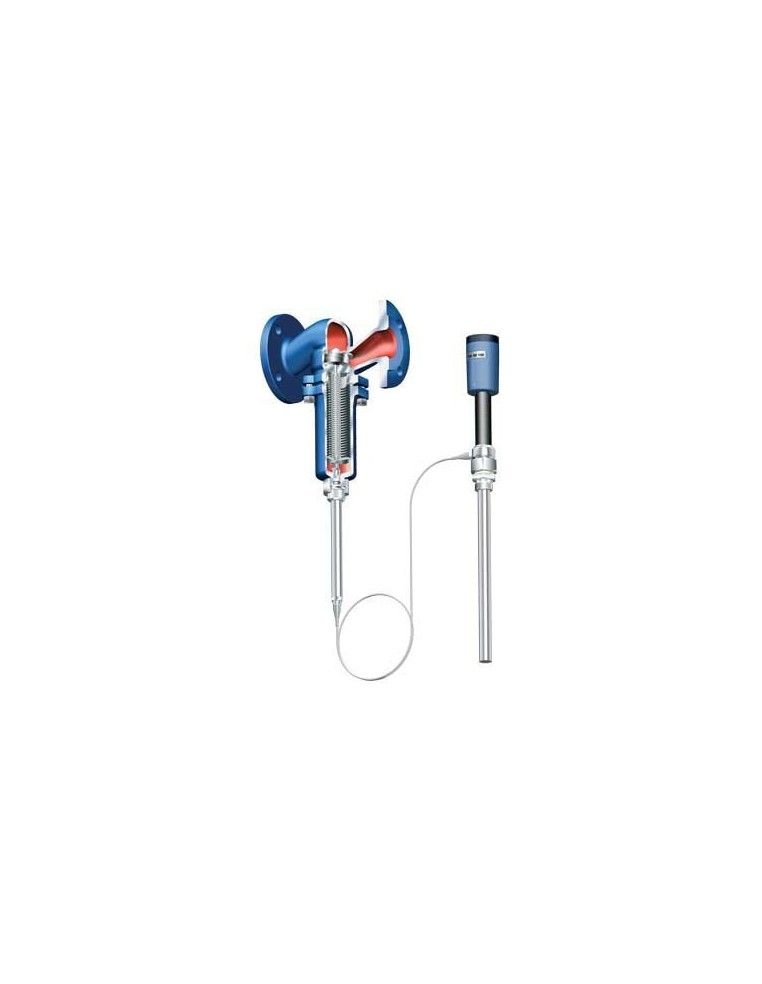

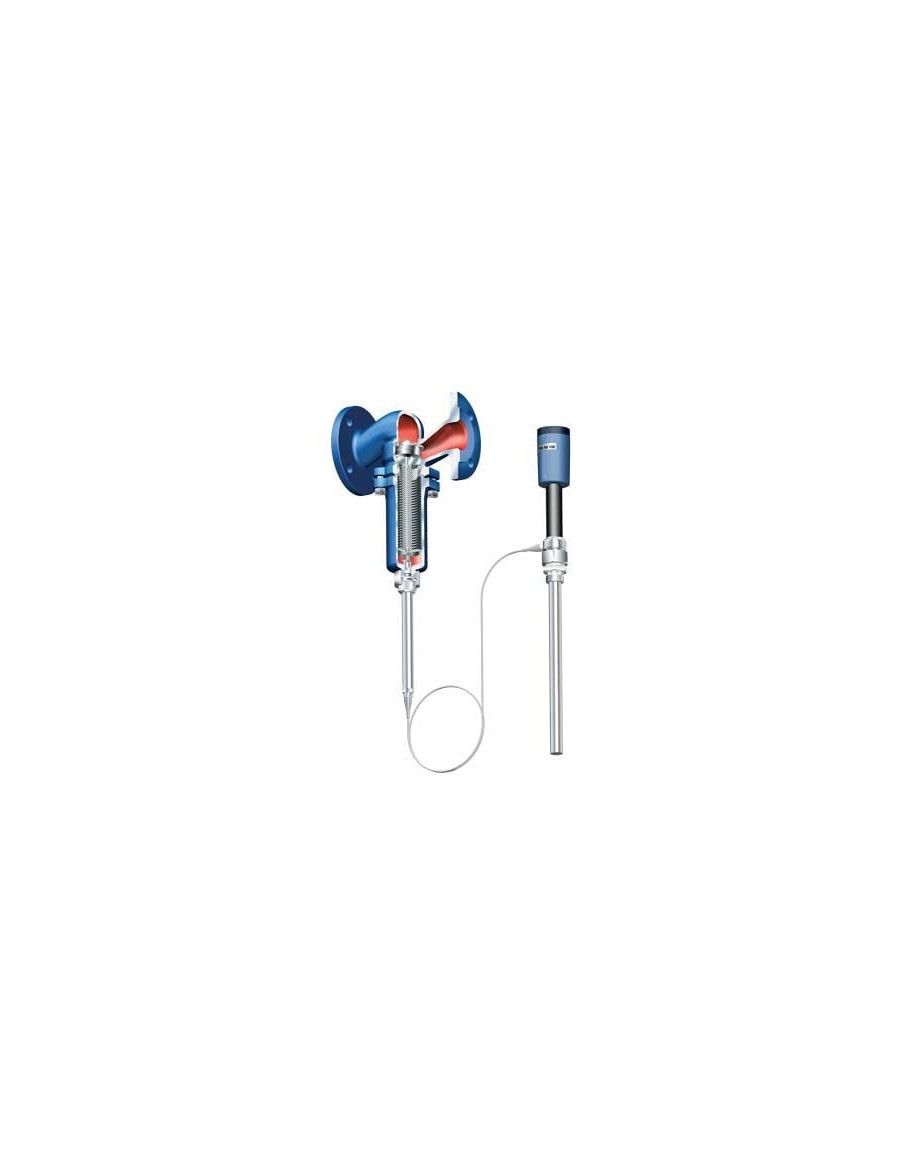

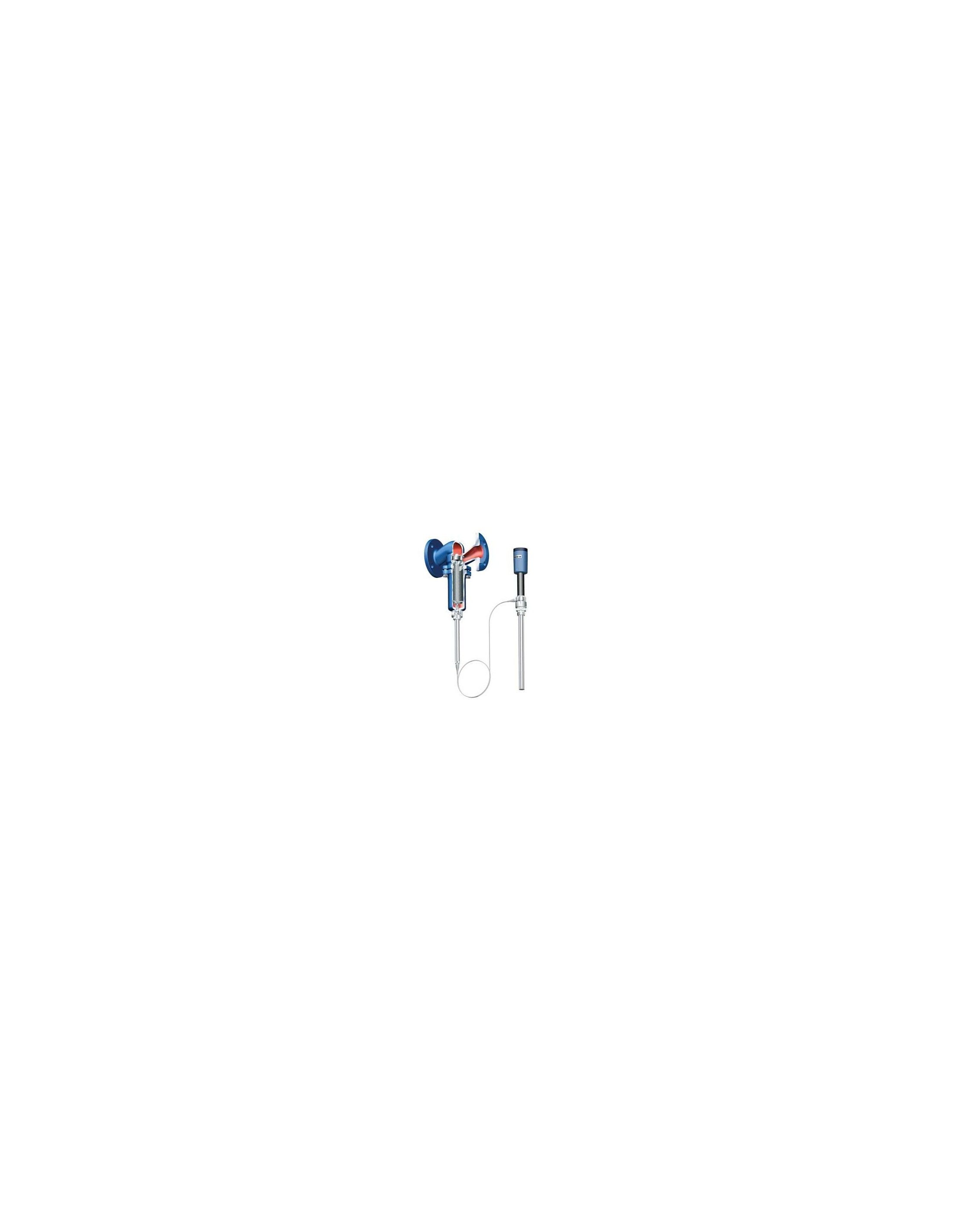

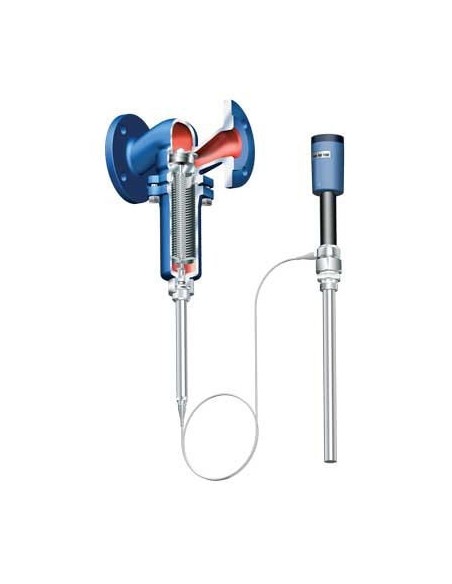

    Thermal Opening Valve (Straight-through with Flanges)

    • Nominal Pressure Ratings: PN16, PN25, PN40
    • Material:
      • Body: EN-JL1040, EN-JS1049, 1.0619+N, 1.4408
      • Seat: X6CrNiTi18-10, 1.4541
    • Nominal Diameter: DN15-DN100
    • Kvs Values: From 4.0 m³/h to 80.0 m³/h
    • Max Differential Pressure: 9 to 12 bar
    • Leakage Rate: Class IV (≤ 0.01% from the nominal flow)
    • Travel: 7.5 mm to 15 mm


    General Features:

    • Thermal Control Operation: These valves are self-operating and do not require external power.
    • Over-temperature Safety: Safety features are included to prevent overloading the thermal controller.
    • Temperature Sensors: Various sensors with different time constants are available for optimal adjustment.
    • Installation: Available with flanges


    Materials and Components    :

    • Body: Various materials like SG iron, cast steel, stainless steel.
    • Sealing Materials: Graphite, EPDM, FPM seals.
    • Bonnet: Stainless steel or other resistant materials.


    Application    :

    These valves are designed for temperature regulation in industrial heating and ventilation systems, residential applications, shipbuilding, and cooling systems. They are ideal for controlling fluid, air, or steam temperatures in a range of applications.

    Tests and Certification

    DGRL 2014/68/EU (PED Pressure Equipment Directive)
    GL - Germanischer Lloyd
    TÜV-certified acc. to DIN 3440 Reg.-No. TR910/TW911
    Firesafe
