Applications
- compressed air
- cooling
- demi Water
- heating
- solar energy
- steam
Art. No. | Description | Size | Item weight | PN | Type of connection |
|---|---|---|---|---|---|

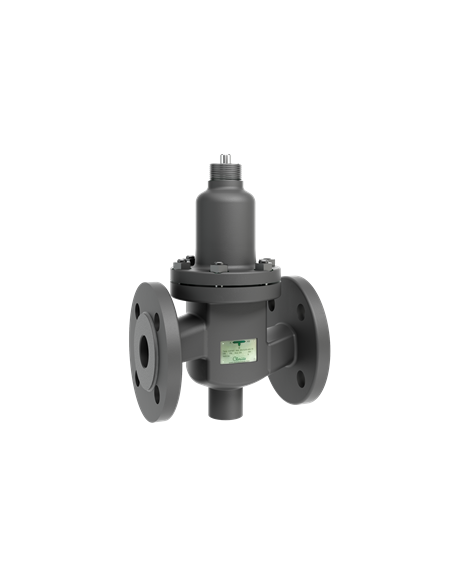

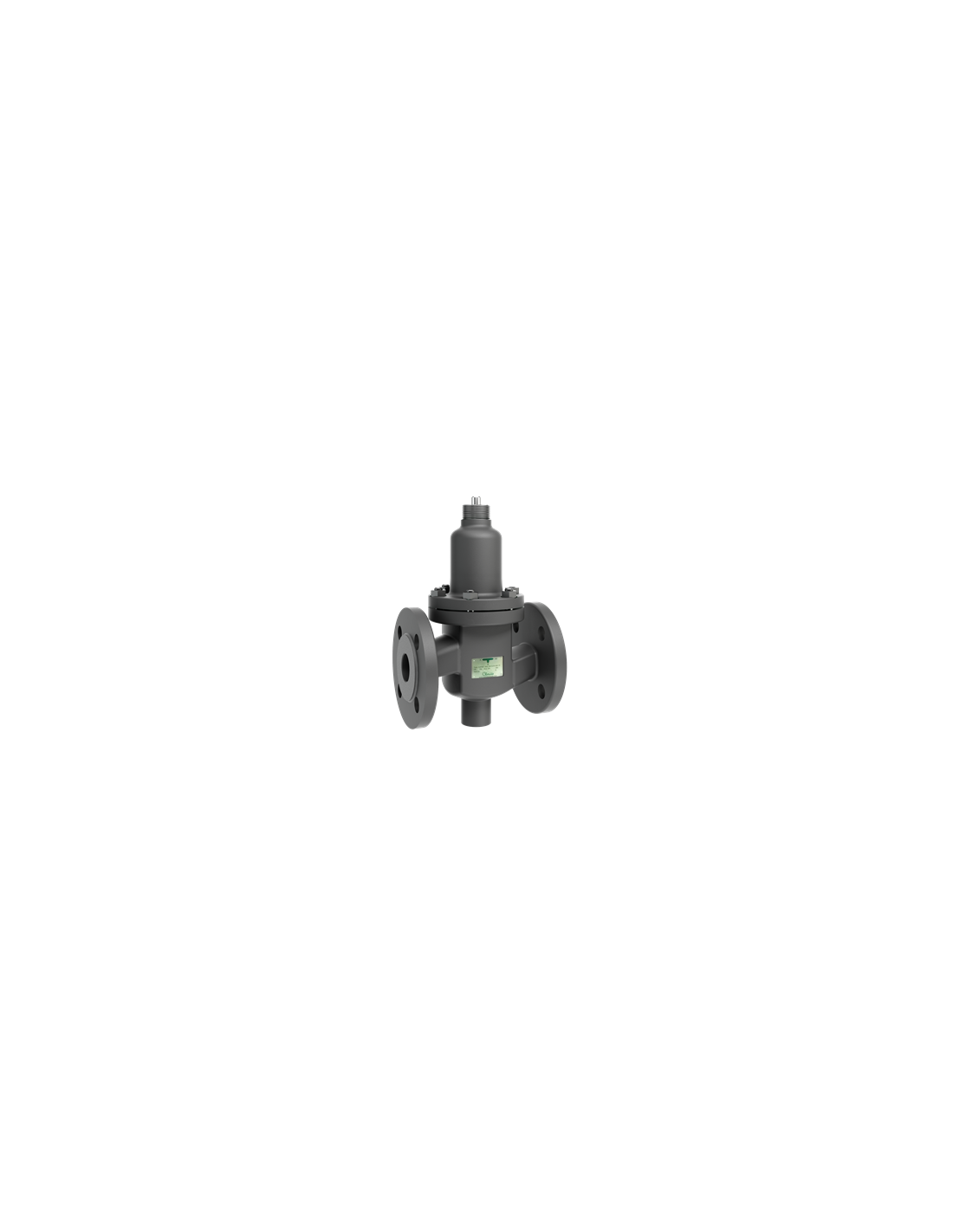

| 1-2410535 | VALVE G1FB DN25, EN FLANGES | DN25 | 6.0 KGM | PN 25 | Flange |
| 1-2410543 | VALVE G1FB DN32, EN FLANGES | DN32 | 9.0 KGM | PN 25 | Flange |
| 1-2410551 | VALVE G1FB DN40, EN FLANGES | DN40 | 13.0 KGM | PN 25 | Flange |
| 1-2410578 | VALVE G1FB DN50, EN FLANGES | DN50 | 16.0 KGM | PN 25 | Flange |
| 1-2410583 | VALVE G1FB DN65, EN FLANGES | DN65 | 23.0 KGM | PN 25 | Flange |
| 1-2410616 | VALVE G1FB DN25 FLANGES R13- V13 | 6.0 KGM | PN 25 | Flange | |
| 1-2410624 | VALVE G1FB DN32 ANSI 150 | 9.0 KGM | Class 150 | ANSI flange | |
| 1-2410651 | VALVE G1FB DN32 DIN 2512 FORM F | 8.0 KGM | PN 25 | Flange | |
| 1-2410655 | VALVE G1FB DN40 DIN 2512 FORM F | 12.0 KGM | PN 25 | Flange |
Art. No. | Size | d | L | H1 | H |
|---|---|---|---|---|---|
| 1-2410535 | DN25 | 1" (DN25) | 160.0 | 70.0 | 180.0 |
| 1-2410543 | DN32 | 1 1/4" (DN32) | 180.0 | 75.0 | 195.0 |
| 1-2410551 | DN40 | 1 1/2" (DN40) | 200.0 | 85.0 | 205.0 |
| 1-2410578 | DN50 | 2" (DN50) | 230.0 | 95.0 | 225.0 |
| 1-2410583 | DN65 | 2 1/2" (DN65) | 290.0 | 110.0 | 260.0 |
| 1-2410616 | 1" (DN25) | ||||
| 1-2410624 | 1 1/4" (DN32) | ||||
| 1-2410651 | 1 1/4" (DN32) | ||||
| 1-2410655 | 1 1/2" (DN40) |
Characteristics
| Manufacturer | 5705737000006 |
