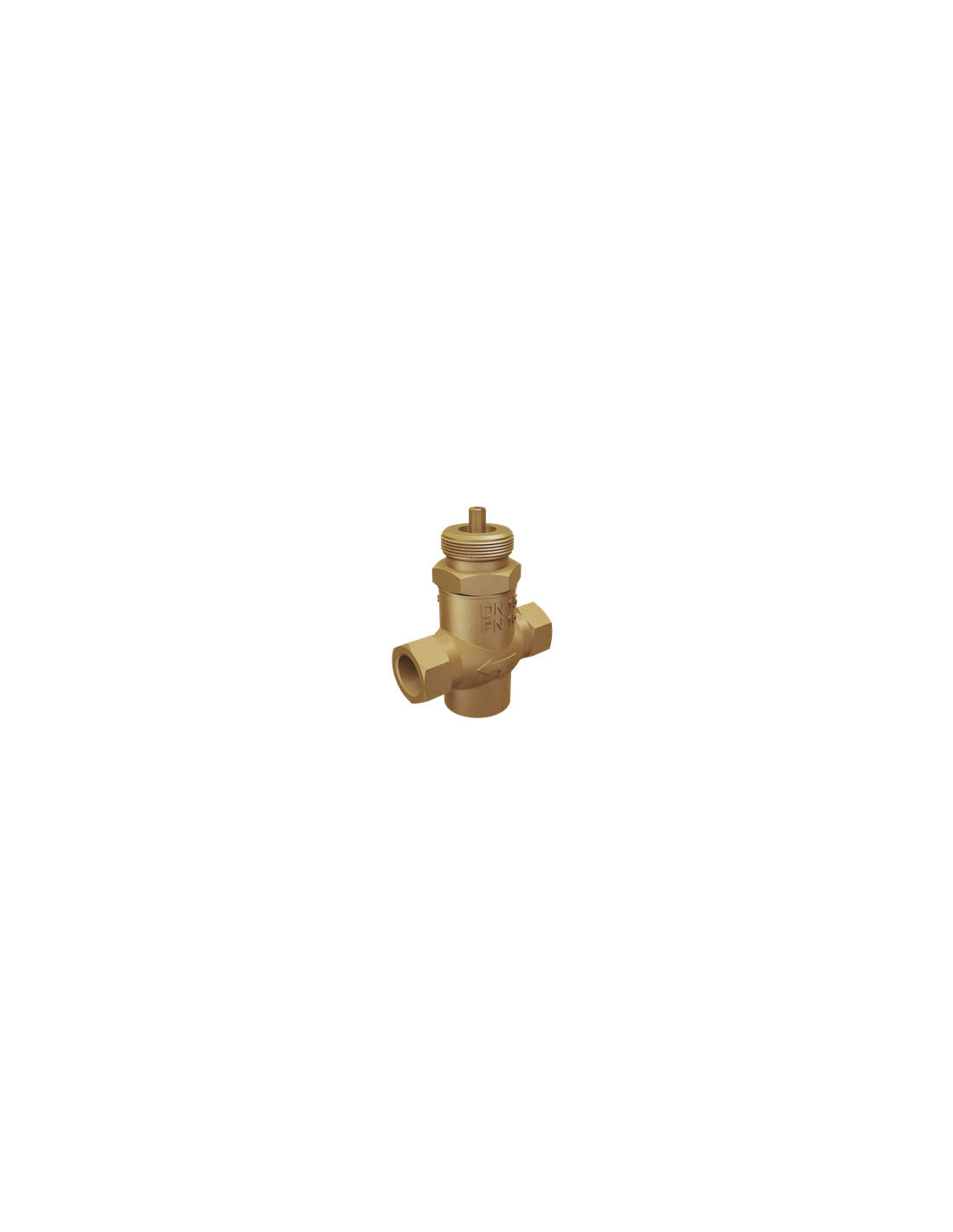

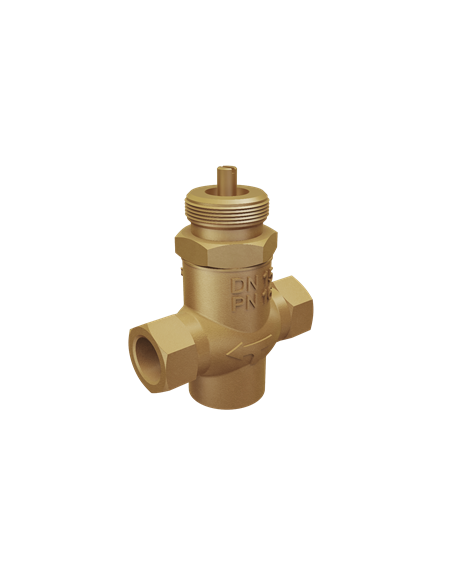

    The Control Valve 2 Way Linear DN 15/6-20mm by Clorius Controls is a versatile and durable valve made from gun metal, designed for precise flow regulation in various applications. It is suitable for use with compressed air, cooling systems, demineralized water, heating systems, solar energy setups, and steam applications. This valve ensures reliable performance and efficient control in diverse industrial and commercial environments.
    Standard (Options)
    • DIN
    Connection (Options)
    • BSP
    Material (Options)
    • Gun metal
    Pressure Rating (Options)
    • PN 16
    Flow (Options)
    • Straight Way

    Datasheet and documents

    Description

    Applications

    • compressed air
    • cooling
    • demi Water
    • heating
    • solar energy
    • steam

    Art. No.

    Description

    Size

    Item weight

    PN

    Type of connection

    1-2110516VALVE L1S DN15/6, BSP THREADINGDN15/60.7 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110524VALVE L1S DN15/9, BSP THREADINGDN15/90.7 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110528VALVE L1S DN15/12, BSP THREADINGDN15/120.7 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110532VALVE L1S DN15, BSP THREADINGDN150.7 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110553VALVE L1S DN20/9 KVS 0.95DN20/98.0 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110559VALVE L1S DN20, BSP THREADINGDN200.8 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110561VALVE L1S DN25/9 KVS 0.951.0 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110567VALVE L1S DN25 KVS 7.51.0 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110567GVALVE L1S DN251.0 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110571VALVE L1S DN20 WITH 3.1B CERTIFICATE8.0 KGMPN 16Rp - female thread cylindrical (BSPT)
    1-2110578VALVE L1S DN25 WITH 3.1B CERTIFICATE1.0 KGMPN 16Rp - female thread cylindrical (BSPT)

    Art. No.

    Size

    d

    L

    H1

    H

    1-2110516DN15/61/2" (DN15)85.020.065.0
    1-2110524DN15/9DN1585.020.065.0
    1-2110528DN15/12DN1585.020.065.0
    1-2110532DN151/2" (DN15)85.026.065.0
    1-2110553DN20/93/4" (DN20)
    1-2110559DN203/4" (DN20)95.032.067.0
    1-21105611" (DN25)
    1-21105671" (DN25)
    1-2110567G1" (DN25)
    1-21105713/4" (DN20)
    1-21105781" (DN25)

    Characteristics

    Manufacturer5705737000006
