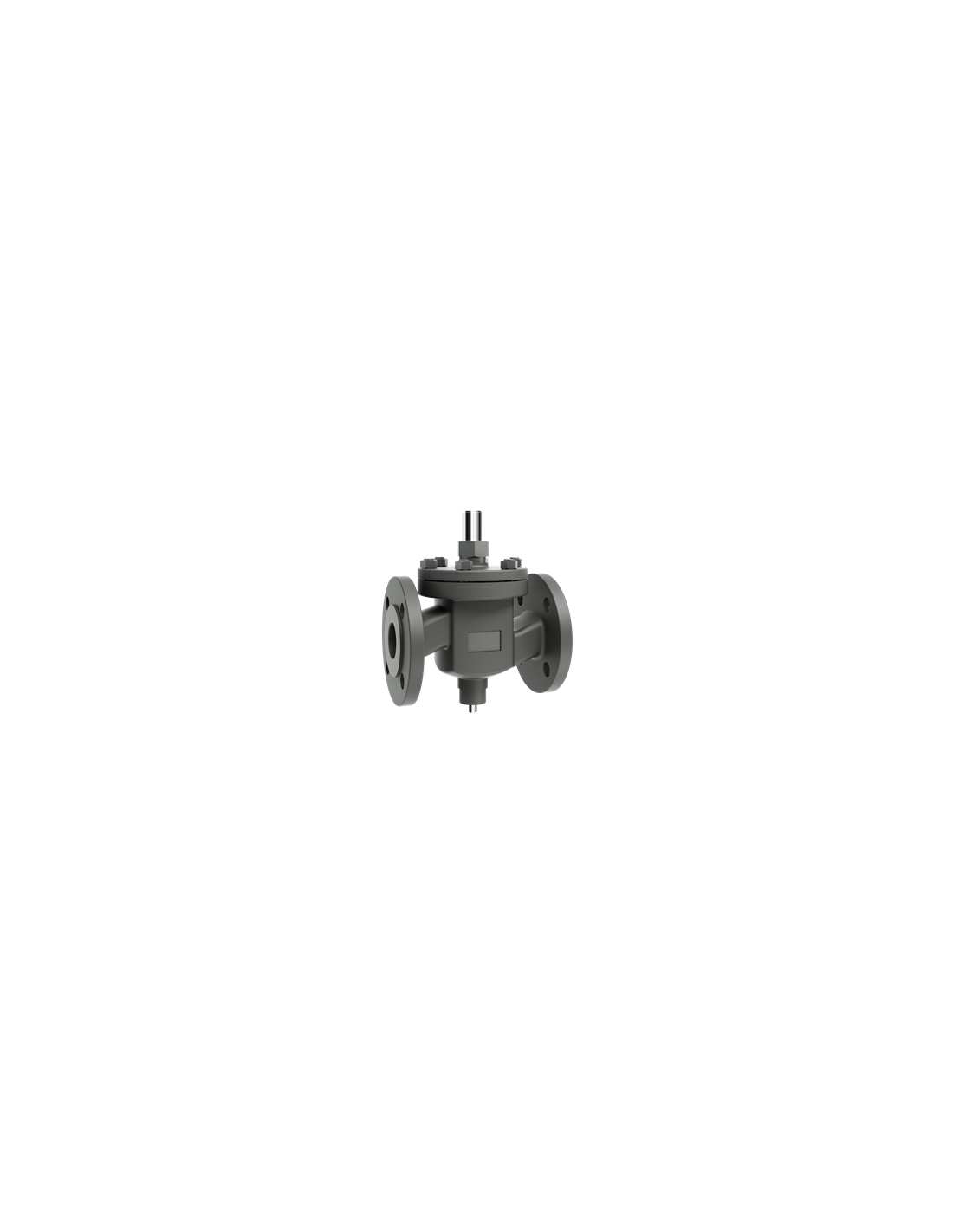

The Control Valve 2-way DN 20-80mm Reverse Acting by Clorius Controls is designed for efficient regulation in cooling applications. Constructed from durable cast steel, this valve is suitable for a variety of applications, including compressed air, cooling, demi water, heating, solar energy, and steam systems. Its reverse acting mechanism ensures precise control, making it an ideal choice for maintaining optimal performance in diverse industrial environments.
Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • 150 lbs
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

Art. No.

Description

Size

Item weight

PN

Type of connection

1-2320649VALVE H2FR DN20, EN FLANGESDN205.0 KGMPN 40Flange
1-2320650VALVE H2FR DN20, ANSI 150DN205.0 KGMClass 150ANSI flange
1-2320651VALVE H2FR DN20, JIS 10KDN205.0 KGM10KJIS flange
1-2320652VALVE H2FR DN20, JIS 5KDN205.0 KGM5KJIS flange
1-2320653VALVE H2FR DN20, JIS 16KDN205.0 KGM16KJIS flange
1-2320665VALVE H2FR DN25, EN FLANGESDN256.5 KGMPN 40Flange
1-2320665RVALVE H2FR DN2565.0 KGMPN 40Flange
1-2320667VALVE H2FR DN25, ANSI 150DN256.5 KGMClass 150ANSI flange
1-2320668VALVE H2FR DN25, JIS 10KDN256.5 KGM10KJIS flange
1-2320669DN256.5 KGM5KJIS flange
1-2320670VALVE H2FR DN25, JIS 16KDN256.5 KGM16KJIS flange
1-2320673RVALVE H2FR DN3289.0 KGMPN 40Flange
1-2320689VALVE H2FR DN32, EN FLANGESDN329.0 KGMPN 40Flange
1-2320690VALVE H2FR DN32, ANSI 150DN329.0 KGMClass 150ANSI flange
1-2320691VALVE H2FR DN32, JIS 10KDN329.0 KGM10KJIS flange
1-2320692VALVE H2FR DN32, JIS 5KDN329.0 KGM5KJIS flange
1-2320693VALVE H2FR DN32, JIS 16KDN329.0 KGM16KJIS flange
1-2320711VALVE H2FR DN40, EN FLANGESDN4011.0 KGMPN 40Flange
1-2320746VALVE H2FR DN50, EN FLANGESDN5016.0 KGMPN 40Flange
1-2320747VALVE H2FR DN50, JIS 5KDN5016.0 KGM5KJIS flange
1-2320748VALVE H2FR DN50, ANSI 150DN5016.0 KGMClass 150ANSI flange
1-2320749VALVE H2FR DN50, JIS 10KDN5016.0 KGM10KJIS flange
1-2320750VALVE H2FR DN50 ANSI30016.0 KGMClass 300ANSI flange
1-2320751VALVE H2FR DN50, JIS 16KDN5016.0 KGM16KJIS flange
1-2320797VALVE H2FR DN65, EN FLANGESDN6521.0 KGMPN 40Flange
1-2320798VALVE H2FR DN65, ANSI 150DN6521.0 KGMClass 150ANSI flange
1-2320799VALVE H2FR DN65, JIS 16KDN6521.0 KGM10KJIS flange
1-2320800VALVE H2FR DN65, JIS 5KDN6521.0 KGM5KJIS flange
1-2320801DN6521.0 KGM16KJIS flange
1-2320827VALVE H2FR DN80, EN FLANGESDN8038.0 KGMPN 40Flange
1-2320828VALVE H2FR DN80, ANSI 150DN8038.0 KGMClass 150ANSI flange
1-2320829VALVE H2FR DN80, JIS 10KDN8038.0 KGM10KJIS flange
1-2320830VALVE H2FR DN80, JIS 5KDN8038.0 KGM5KJIS flange
1-2320831VALVE H2FR DN80, JIS 16KDN8038.0 KGM16KJIS flange
1-2321107VALVE H2FR DN40, ANSI 150DN4011.0 KGMClass 150ANSI flange
1-2321108VALVE H2FR DN40, JIS 10KDN4011.0 KGM10KJIS flange
1-2321109VALVE H2FR DN40, JIS 5KDN4011.0 KGM5KJIS flange
1-2321110VALVE H2FR DN40, JIS 16KDN4011.0 KGM16KJIS flange

Art. No.

Size

d

L

H1

H

1-2320649DN203/4" (DN20)150.063.0
1-2320650DN203/4" (DN20)150.063.0
1-2320651DN203/4" (DN20)150.063.0
1-2320652DN203/4" (DN20)150.063.0
1-2320653DN203/4" (DN20)150.063.0
1-2320665DN251" (DN25)160.070.0
1-2320665R1" (DN25)
1-2320667DN251" (DN25)160.070.0
1-2320668DN251" (DN25)160.070.0
1-2320669DN251" (DN25)160.070.0
1-2320670DN251" (DN25)160.070.0
1-2320673R1 1/4" (DN32)
1-2320689DN321 1/4" (DN32)180.075.0
1-2320690DN321 1/4" (DN32)180.075.0
1-2320691DN321 1/4" (DN32)180.075.0
1-2320692DN321 1/4" (DN32)180.075.0
1-2320693DN321 1/4" (DN32)180.075.0
1-2320711DN401 1/2" (DN40)200.085.0
1-2320746DN502" (DN50)230.095.0
1-2320747DN502" (DN50)230.095.0
1-2320748DN502" (DN50)230.095.0
1-2320749DN502" (DN50)230.095.0
1-23207502" (DN50)
1-2320751DN502" (DN50)230.095.0
1-2320797DN652 1/2" (DN65)290.0110.0
1-2320798DN652 1/2" (DN65)290.0110.0
1-2320799DN652 1/2" (DN65)290.0110.0
1-2320800DN652 1/2" (DN65)290.0110.0
1-2320801DN652 1/2" (DN65)290.0110.0
1-2320827DN803" (DN80)310.0155.0
1-2320828DN803" (DN80)310.0155.0
1-2320829DN803" (DN80)310.0155.0
1-2320830DN803" (DN80)310.0155.0
1-2320831DN803" (DN80)310.0155.0
1-2321107DN401 1/2" (DN40)200.085.0
1-2321108DN401 1/2" (DN40)200.085.0
1-2321109DN401 1/2" (DN40)200.085.0
1-2321110DN401 1/2" (DN40)200.085.0

Characteristics

Manufacturer5705737000006
