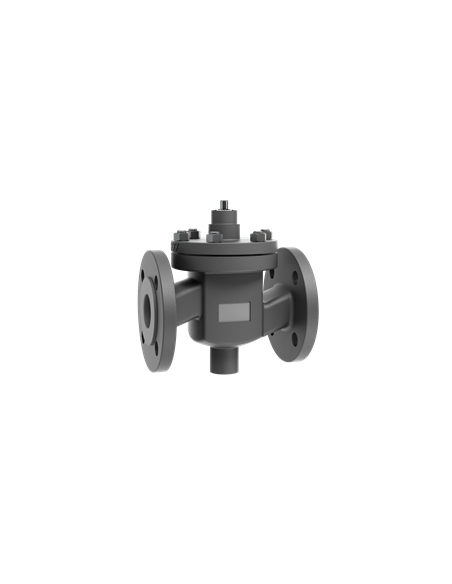

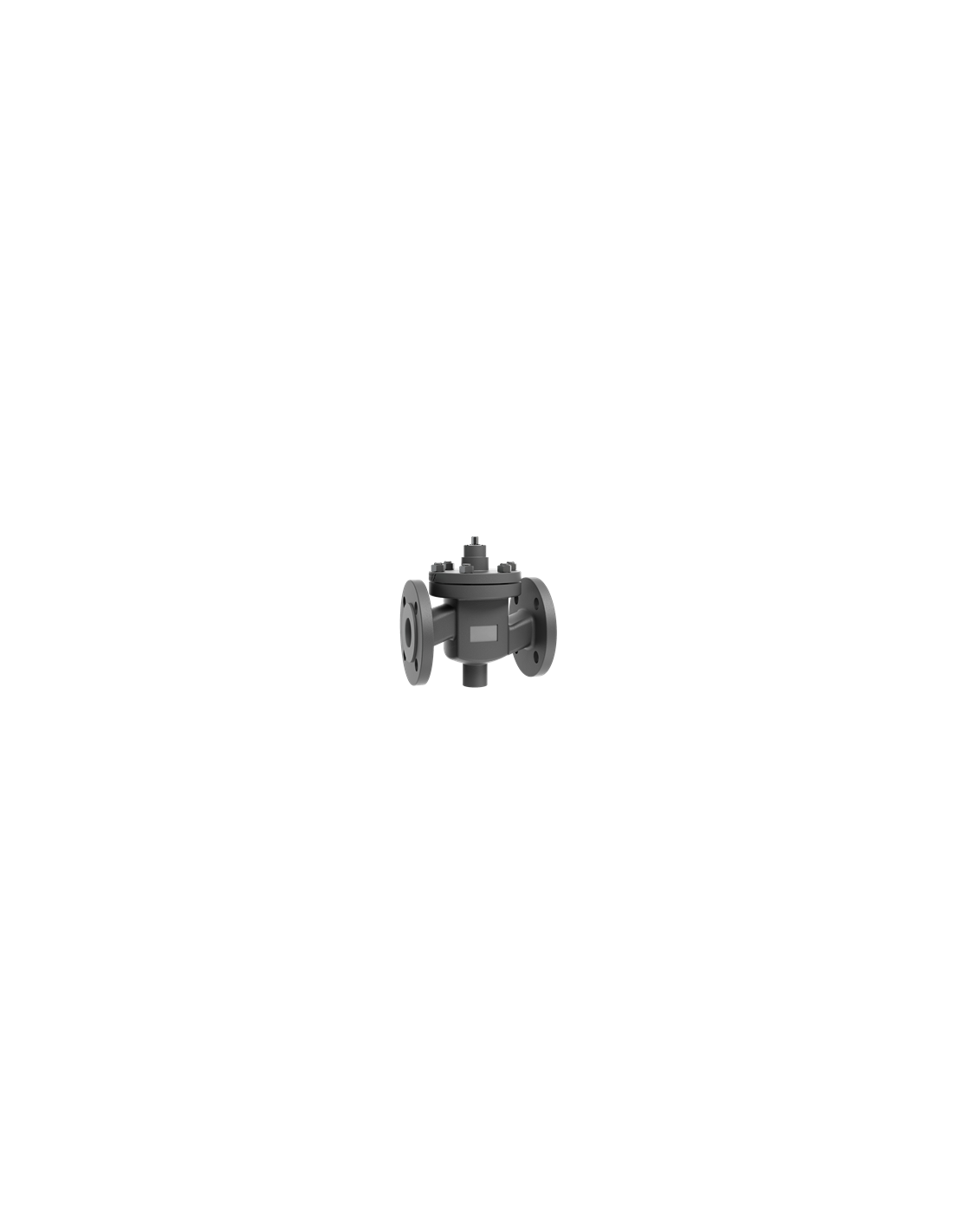

    The Control Valve 2-way DN 15/4-50mm from Clorius Controls is a versatile and durable valve made from cast iron, designed for efficient flow regulation in various applications. It is suitable for use with compressed air, cooling systems, demineralized water, heating, solar energy, and steam. This valve is ideal for industries requiring reliable control and management of fluid systems.
    Standard (Options)
    • DIN
    • ANSI
    • JIS
    Connection (Options)
    • Flanged
    Material (Options)
    • EN-GJS-400-15 (Nodular Cast Iron)
    Pressure Rating (Options)
    • PN 6
    • PN 16
    Flow (Options)
    • Straight Way

    Datasheet and documents

    Description

    Applications

    • compressed air
    • cooling
    • demi Water
    • heating
    • solar energy
    • steam

    Art. No.

    Description

    Size

    Item weight

    PN

    Type of connection

    1-2210339RVALVE M1F DN32/203.0 KGMPN 16Flange
    1-2210363RVALVE M1F DN25/2055.0 KGMPN 16Flange
    1-2210371RVALVE MIF DN20/642.0 KGMPN 16Flange
    1-2210398RVALVE M1F DN25/942.0 KGMPN 16Flange
    1-2210401VALVE M1F DN15/6, EN FLANGESDN15/63.0 KGMPN 16Flange
    1-2210401RVALVE M1F DN15/633.0 KGMPN 16Flange
    1-2210428VALVE M1F DN15/9, EN FLANGESDN15/93.1 KGMPN 16Flange
    1-2210428RVALVE M1F DN15/933.0 KGMPN 16Flange
    1-2210436VALVE M1F DN15, EN FLANGESDN153.1 KGMPN 16Flange
    1-2210436GVALVE M1F DN15 CUT-THROUGH57.0 KGMPN 16
    1-2210436RVALVE M1F DN1532.0 KGMPN 16Flange
    1-2210436RUVALVE M1F DN15 RUS32.0 KGMPN 16Flange
    1-2210444VALVE M1F DN25, EN FLANGESDN255.5 KGMPN 16Flange
    1-2210444RVALVE M1F DN2557.0 KGMPN 16Flange
    1-2210452VALVE M1F DN32, EN FLANGESDN328.1 KGMPN 16Flange
    1-2210452RVALVE M1F DN3283.0 KGMPN 16Flange
    1-2210479VALVE M1F DN40, EN FLANGESDN409.7 KGMPN 16Flange
    1-2210479RVALVE M1F DN40102.0 KGMPN 16Flange
    1-2210487VALVE M1F DN50, EN FLANGESDN5014.0 KGMPN 16Flange
    1-2210487RVALVE M1F DN50142.0 KGMPN 16Flange
    1-2210495VALVE M1F DN20, EN FLANGESDN204.2 KGMPN 16Flange
    1-2210495GVALVE M1F DN20 CUT-THROUGH44.0 KGMPN 16
    1-2210495RVALVE M1F DN2044.0 KGMPN 16Flange
    1-2210649VALVE M1F DN15/12, EN FLANGESDN15/123.1 KGMPN 16Flange
    1-2210649RVALVE M1F DN15/1233.0 KGMPN 16Flange
    1-2210657VALVE M1F DN20/1542.0 KGMPN 16Flange
    1-2210665VALVE M1F DN25/2057.0 KGMPN 16Flange
    1-2210673VALVE M1F DN32/2581.0 KGMPN 16Flange
    1-2210681VALVE M1F DN40/3297.0 KGMPN 16Flange
    1-2210703VALVE M1F DN50/40147.0 KGMPN 16Flange
    1-2211491VALVE M1F DN20/942.0 KGMPN 16Flange
    1-2211491RVALVE M1F DN20/942.0 KGMPN 16Flange
    1-2211505VALVE M1F DN15/4, EN FLANGESDN15/43.0 KGMPN 16Flange
    1-2211505RVALVE M1F DN15/433.0 KGMPN 16Flange
    1-2211734VALVE M1F DN15/4 JIS 10K3.0 KGM10KJIS flange
    1-2211742VALVE M1F DN15/12 STAINLESS STEELNUT31.0 KGMPN 16Flange
    1-2211769VALVE 20 M1F JIS 10K42.0 KGM10KJIS flange
    1-2211823VALVE M1F DN20 ANSI, CLASS 15042.0 KGMClass 150ANSI flange
    1-2211831VALVE M1F DN15/12 JIS 10K31.0 KGM10KJIS flange
    1-2211912VALVE M1F DN15/12 NO DRILL31.0 KGMPN 16Flange
    1-2211947VALVE M1F DN25 ANSI 150 STAINLESS STEEL55.0 KGMClass 150ANSI flange
    1-2211949VALVE M1F DN15/6 ANSI CLASS 30031.0 KGMClass 300ANSI flange
    1-2211955VALVE M1F DN15 ANSI CLASS 30031.0 KGMClass 300ANSI flange
    1-2211963VALVE M1F DN15/12 ANSI CLASS 30031.0 KGMClass 300ANSI flange
    1-2212007VALVE M1F DN15/4, JIS 16KDN15/43.0 KGM16KJIS flange
    1-2212008VALVE M1F DN15/6 JIS 16KDN15/63.0 KGM16KJIS flange
    1-2212009VALVE M1F DN15/9, JIS 16KDN15/93.1 KGM16KJIS flange
    1-2212010VALVE M1F DN15/12, JIS 16KDN15/123.1 KGM16KJIS flange
    1-2212011VALVE M1F DN15, JIS 16KDN153.1 KGM16KJIS flange
    1-2212012VALVE M1F DN15/4, JIS 5KDN15/43.0 KGM5KJIS flange
    1-2212013DN15/63.0 KGM5KJIS flange
    1-2212014VALVE M1F DN15/9, JIS 5KDN15/93.1 KGM5KJIS flange
    1-2212015VALVE DN15/2, JIS 5KDN15/123.1 KGM5KJIS flange
    1-2212016VALVE M1F DN15, JIS 5KDN153.1 KGM5KJIS flange
    1-2212017VALVE M1F DN15/4, ANSI 150DN15/43.0 KGMPN 16ANSI flange
    1-2212018VALVE M1F DN15/6, ANSI 150DN15/63.0 KGMPN 6ANSI flange
    1-2212019VALVE M1F DN15/6, JIS 10KDN15/63.0 KGM10KJIS flange
    1-2212020VALVE M1F DN15/9, JIS 10KDN15/93.1 KGM10KJIS flange
    1-2212021VALVE M1F DN15/9, ANSI 150DN15/93.1 KGMPN 16ANSI flange
    1-2212022VALVE M1F DN15/12, ANSI 150DN15/123.1 KGMPN 16ANSI flange
    1-2212023VALVE M1F DN15, ANSI 150DN153.1 KGMClass 150ANSI flange
    1-2212024VALVE M1F DN15, JIS 10KDN153.1 KGM10KJIS flange
    1-2212030VALVE M1F DN20, JIS 16KDN204.2 KGM16KJIS flange
    1-2212031VALVE M1F DN20, JIS 5KDN204.2 KGM5KJIS flange
    1-2212032VALVE M1F DN20, ANSI 150DN204.2 KGMClass 150ANSI flange
    1-2212038VALVE M1F DN25, JIS 16KDN255.5 KGM16KJIS flange
    1-2212039VALVE M1F DN25, JIS 5KDN255.5 KGM5KJIS flange
    1-2212040VALVE M1F DN25, JIS 10KDN255.5 KGM10KJIS flange
    1-2212041VALVE M1F DN25, ANSI 150DN255.5 KGMClass 150ANSI flange
    1-2212049VALVE M1F DN32, JIS 16KDN328.1 KGM16KJIS flange
    1-2212050VALVE M1F DN32, JIS 5KDN328.1 KGM5KJIS flange
    1-2212051VALVE M1F DN32, JIS 10KDN328.1 KGM10KJIS flange
    1-2212052VALVE M1F DN32, ANSI 150DN328.1 KGMClass 150ANSI flange
    1-2212060VALVE M1F DN40, JIS 16KDN409.7 KGM16KJIS flange
    1-2212061VALVE M1F DN40, JIS 5KDN409.7 KGM5KJIS flange
    1-2212062VALVE M1F DN40, JIS 10KDN409.7 KGM10KJIS flange
    1-2212063VALVE M1F DN40, ANSI 150DN409.7 KGMClass 150ANSI flange
    1-2212068VALVE M1F DN50, JIS 16KDN5014.0 KGM16KJIS flange
    1-2212069VALVE M1F DN50, JIS 5KDN5014.0 KGM5KJIS flange
    1-2212070VALVE M1F DN50, JIS 10KDN5014.0 KGM10KJIS flange
    1-2212071VALVE M1F DN50, ANSI 150DN5014.0 KGMClass 150ANSI flange
    1-2990024SPARE PART KIT FOR 15/6M1F NY3.0 KGMPN 16
    1-2990067SPARE PART KIT FOR 15/9M1F NY3.0 KGMPN 16

    Art. No.

    Size

    d

    L

    H1

    H

    1-2210339R1 1/4" (DN32)
    1-2210363R1" (DN25)
    1-2210371R3/4" (DN20)
    1-2210398R1" (DN25)
    1-2210401DN15/6DN15130.080.0
    1-2210401RDN15
    1-2210428DN15/9DN15130.080.0
    1-2210428RDN15
    1-2210436DN151/2" (DN15)130.080.0
    1-2210436GDN15
    1-2210436R1/2" (DN15)
    1-2210436RUDN15
    1-2210444DN251" (DN25)160.095.0
    1-2210444R1" (DN25)
    1-2210452DN321 1/4" (DN32)180.0105.0
    1-2210452R1 1/4" (DN32)
    1-2210479DN401 1/2" (DN40)200.0110.0
    1-2210479R1 1/2" (DN40)
    1-2210487DN502" (DN50)230.0125.0
    1-2210487RDN50
    1-2210495DN203/4" (DN20)150.085.0
    1-2210495GDN20
    1-2210495R3/4" (DN20)
    1-2210649DN15/12DN15130.080.0
    1-2210649RDN15
    1-22106573/4" (DN20)
    1-22106651" (DN25)
    1-22106731 1/4" (DN32)
    1-22106811 1/2" (DN40)
    1-22107032" (DN50)
    1-22114913/4" (DN20)
    1-2211491R3/4" (DN20)
    1-2211505DN15/4DN15130.080.0
    1-2211505RDN15
    1-2211734DN15
    1-2211742DN15
    1-22117693/4" (DN20)
    1-22118233/4" (DN20)
    1-2211831DN15
    1-2211912DN15
    1-22119471" (DN25)
    1-2211949DN15
    1-22119551/2" (DN15)
    1-2211963DN15
    1-2212007DN15/4DN15130.080.0
    1-2212008DN15/6DN15130.080.0
    1-2212009DN15/9DN15130.080.0
    1-2212010DN15/12DN15130.080.0
    1-2212011DN151/2" (DN15)130.080.0
    1-2212012DN15/4DN15130.080.0
    1-2212013DN15/6DN15130.080.0
    1-2212014DN15/9DN1580.0
    1-2212015DN15/12DN15130.080.0
    1-2212016DN151/2" (DN15)130.080.0
    1-2212017DN15/4DN15130.080.0
    1-2212018DN15/6DN15130.080.0
    1-2212019DN15/6DN15130.080.0
    1-2212020DN15/9DN15130.080.0
    1-2212021DN15/9DN15130.080.0
    1-2212022DN15/12DN15130.080.0
    1-2212023DN151/2" (DN15)130.080.0
    1-2212024DN151/2" (DN15)130.080.0
    1-2212030DN203/4" (DN20)150.085.0
    1-2212031DN203/4" (DN20)150.085.0
    1-2212032DN203/4" (DN20)150.085.0
    1-2212038DN251" (DN25)160.095.0
    1-2212039DN251" (DN25)160.095.0
    1-2212040DN251" (DN25)160.095.0
    1-2212041DN251" (DN25)160.095.0
    1-2212049DN321 1/4" (DN32)180.0105.0
    1-2212050DN321 1/4" (DN32)180.0105.0
    1-2212051DN321 1/4" (DN32)180.0105.0
    1-2212052DN321 1/4" (DN32)180.0105.0
    1-2212060DN401 1/2" (DN40)200.0110.0
    1-2212061DN401 1/2" (DN40)200.0110.0
    1-2212062DN401 1/2" (DN40)200.0110.0
    1-2212063DN401 1/2" (DN40)200.0110.0
    1-2212068DN502" (DN50)230.0125.0
    1-2212069DN502" (DN50)230.0125.0
    1-2212070DN502" (DN50)230.0125.0
    1-2212071DN502" (DN50)230.0125.0
    1-2990024
    1-2990067

    Characteristics

    Manufacturer5705737000006
