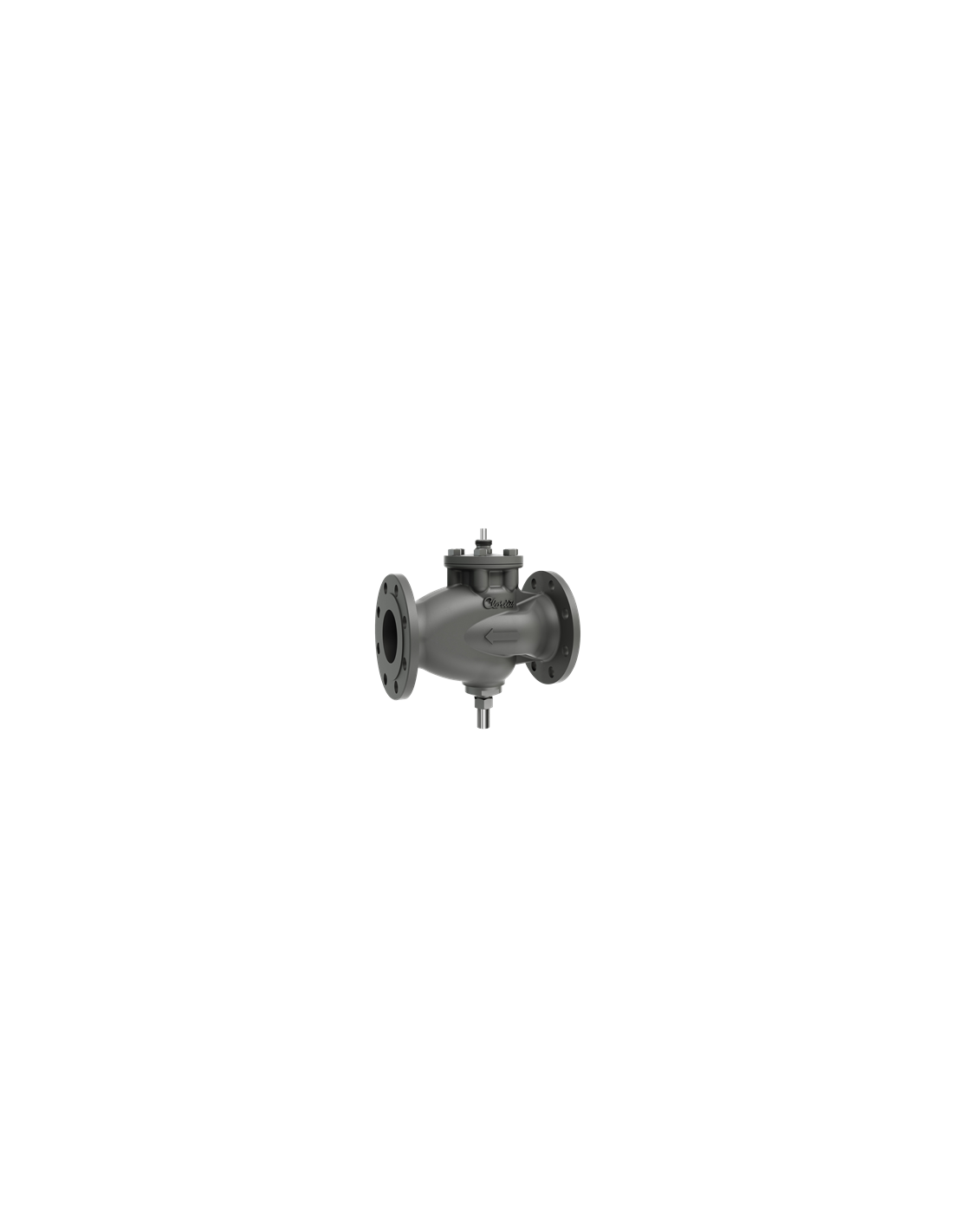

The Control Valve 2-way DN 100-150mm by Clorius Controls is a robust and versatile valve made from cast steel, designed for efficient flow regulation in various applications. It is suitable for use with compressed air, cooling systems, demineralized water, heating, solar energy, and steam. This valve is ideal for industrial and commercial settings where reliable control of fluid dynamics is essential.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Cast Steel
Pressure Rating (Options)
  • PN 16
  • PN 25
Flow (Options)
  • Straight Way

Datasheet and documents

Description

Applications

  • compressed air
  • cooling
  • demi Water
  • heating
  • solar energy
  • steam

t. No.

Description

Size

Item weight

PN

Type of connection

1-2320193RVALVE H2F DN10038.0 KGMPN 25Flange
1-2320363VALVE H2F DN100, EN FLANGESDN10038.0 KGMPN 25Flange
1-2320398VALVE H2F DN125, EN FLANGESDN12573.0 KGMPN 25Flange
1-2320428VALVE H2F DN150, EN FLANGESDN12576.0 KGMPN 16Flange
1-2320443VALVE H2F DN125 KVS 215 FLANGES PN1673.0 KGMPN 25Flange
1-2321041VALVE H2F DN125 KVS 215 KLINGER73.0 KGMPN 25Flange

rt. No.

Size

d

L

H1

H

1-2320193R4" (DN100)
1-2320363DN1004" (DN100)350.0185.0
1-2320398DN1255" (DN125)400.0240.0
1-2320428DN1256" (DN150)400.0240.0
1-23204435" (DN125)
1-23210415" (DN125)

Characteristics

Manufacturer5705737000006
