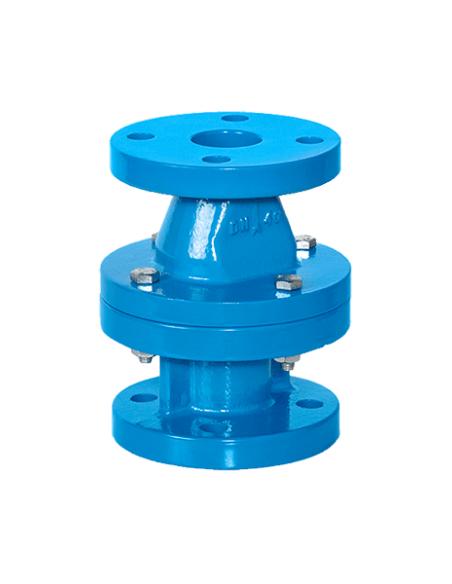

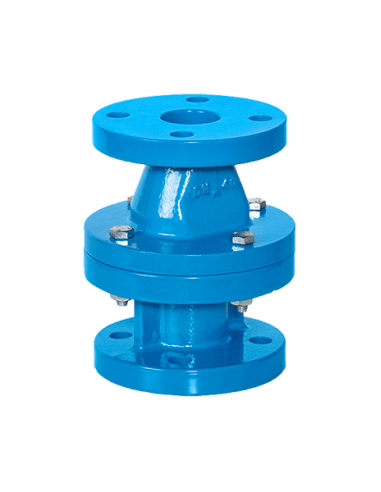

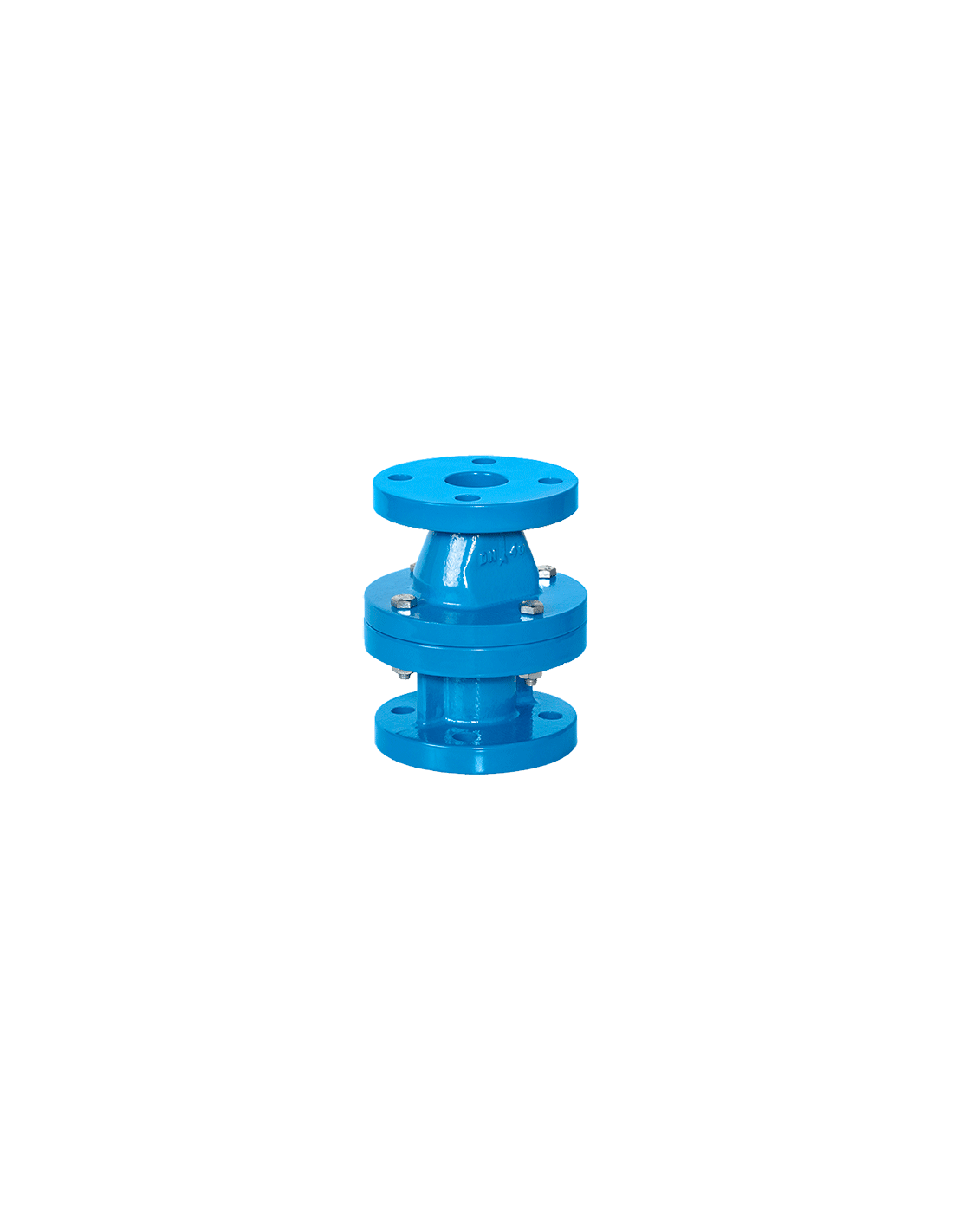

    The Swing Check Valve - T114AR by Zubi is a high-quality valve designed to prevent backflow in piping systems. It features a robust construction with a swinging disc mechanism that allows fluid to flow in one direction while automatically closing to prevent reverse flow. This valve is suitable for various applications, ensuring reliable performance and minimal maintenance. Its design facilitates easy installation and operation, making it an ideal choice for industries requiring efficient flow control solutions.
    Standard (Options)
    • DIN
    • ANSI
    Connection (Options)
    • Flanged
    Material (Options)
    • ASTM A216 WCB
    • Cast Iron
    • Ductile Iron
    • AISI 316 (Stainless Steel)
    • CF8 (AISI 304)
    Pressure Rating (Options)
    • PN 10
    • PN 16

    Description


    Main Features

    • Low maintenance (disk).
    • The valves can be assembled either horizontally or vertically, depending on the housing.
    • Resistant to water hammering.
    • Adaptable to different flows.
    • Low pressure and vacuum duties.
    • Unidirectional full flow design.
    • Corrosion and abrasion resistant linings.

    DIRECTIVAS

    • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
    • DIR 2014/34/EU (ATEX) Area 2&22

    Technical Data

    FLANGE CONNECTION

    • PN10/PN16
    • ANSI 125/150

    SIZES & PRESSURES

    • DN15 to DN125: 10 bar
    • DN150 to DN250: 6 bar
    • DN300 to DN400: 4 bar

    *Minimum opening pressure: 0.2 bar

    MATERIALS

    UPPER & LOWER BODY Carbon Steel (ASTM A216/WCB), Chrome at 30%, Cast Iron GG25, Ductil Iron GGG40, Ductil Iron GGG50, CF8M (AISI316), CF8 (AISI304). Special alloys under demand; bodies can be lined.

    DISK Butyl (BU), Natural Rubber (BL), EPDM (EP), Hypalon (HY), Neoprene (NE), Nitrile (NI), Viton (VI).

    LININGS Butyl, Antiabrasive soft natural rubber, HRL/Ebonite, Hypalon, Halar (ECTFE), Neoprene, Rilsan.
