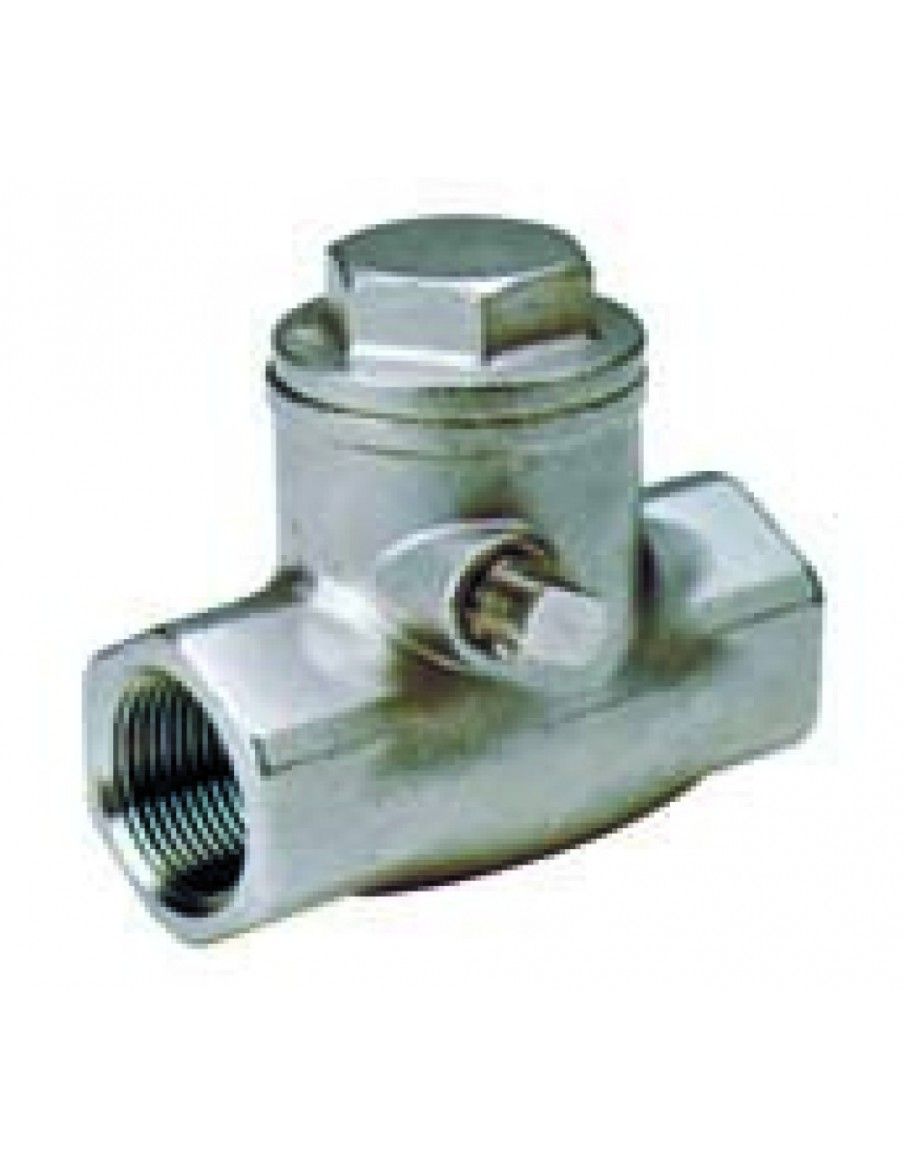

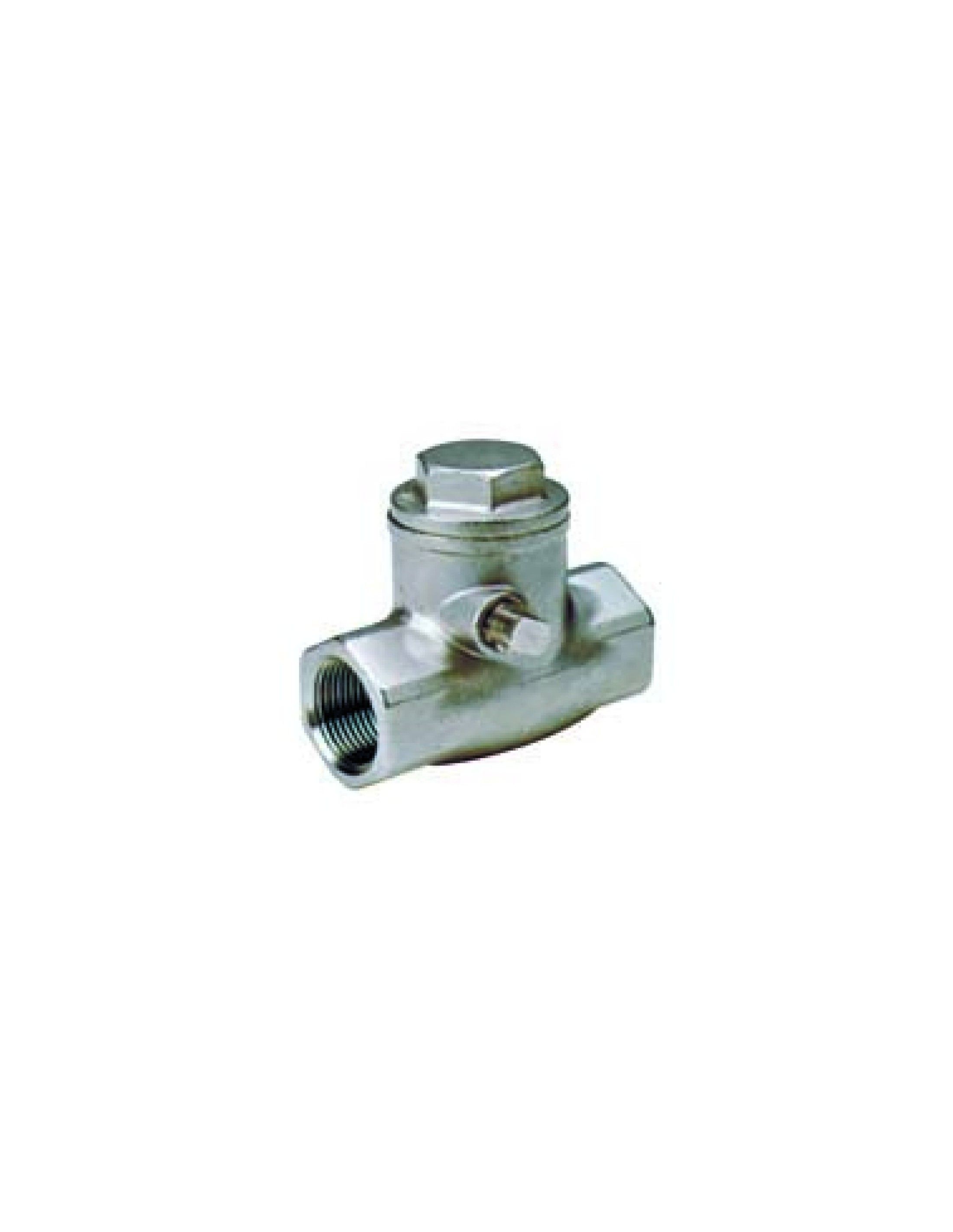

Swing Check Valve - 2430 | Genebre
    Swing Check Valve - 2430 | Genebre

    Swing Check Valve - 2430 | Genebre

    The Swing Check Valve - 2430 by Genebre is a high-quality valve designed to prevent backflow in piping systems. It features a robust construction with a swinging disc mechanism that allows fluid to flow in one direction while automatically closing to prevent reverse flow. This valve is suitable for various applications, offering reliable performance and durability. It is typically used in water supply systems, HVAC, and industrial processes. The design ensures minimal pressure drop and efficient sealing, making it an ideal choice for maintaining system integrity and efficiency.
    Standard (Options)
    • DIN
    Connection (Options)
    • BSP
    Material (Options)
    • 1.4408
    Pressure Rating (Options)
    • PN 16

    Datasheet and documents

    Description

    Constr. stainless steel CF8M (316) investment casting.

    Seals: PTFE: gas threaded ends ISO 7-1.

    Max. pressure: 16 kg/cm2 at 120ºC - 10 kg/cm2 at 180ºC.

    Min. temp.: -30ºC.

    Reference: 2430

    ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
    2430 04SWING CHECK VALVE 1/2"10.32710/80
    2430 05SWING CHECK VALVE 3/4"10.5336/48
    2430 06SWING CHECK VALVE 1"10.7584/32
    2430 07SWING CHECK VALVE 1 1/4"11.063/24
    2430 08SWING CHECK VALVE 1 1/2"11.6321/8
    2430 09SWING CHECK VALVE 2"12.3351/10

    Product Details

    Genebre - Swing Check Valve - 2430

    Certificates

    GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

    This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

    In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

    In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY
