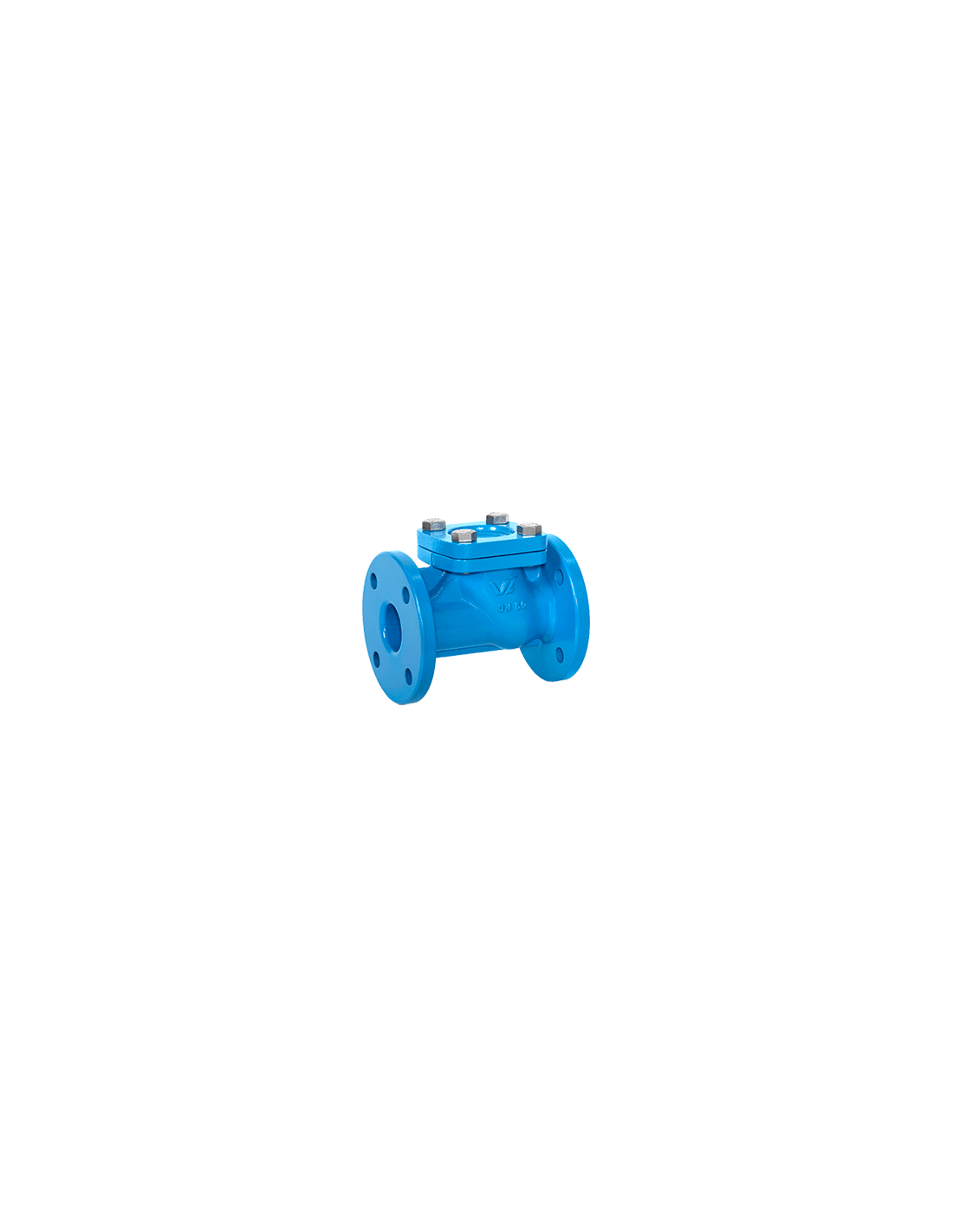

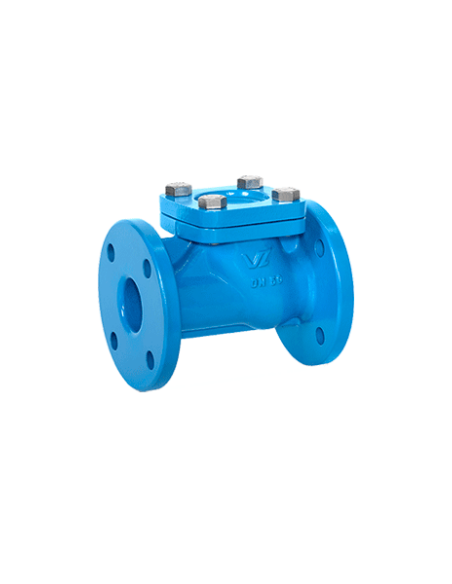

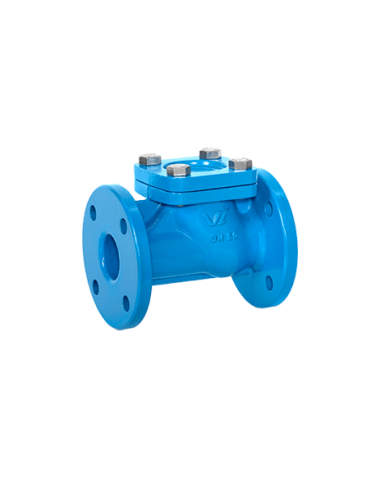

    The Ball Check Valve - T115AR by Zubi is a reliable and efficient valve designed for preventing backflow in piping systems. It features a robust construction with a spherical ball that seals against a seat to allow unidirectional flow while automatically blocking reverse flow. This valve is suitable for various applications, including water, wastewater, and industrial processes, offering low maintenance and long-lasting performance. Its design ensures minimal pressure drop and easy installation, making it an ideal choice for ensuring system integrity and efficiency.
    Standard (Options)
    • DIN
    • ANSI
    Connection (Options)
    • Flanged
    Material (Options)
    • Cast Iron
    • Ductile Iron
    • AISI 316 (Stainless Steel)
    • CF8 (AISI 304)
    Pressure Rating (Options)
    • PN 10
    • PN 16

    Description

    Main Features

    • Pressure/flow Directional arrow in the body showing the correct mounting position.
    • Horizontal, vertical or in tilted pipe assambling, depending on the housing.
    • Easy maintenance.
    • Easy removable cover
    • Low pressure drop.
    • Full flow.
    • NO death area where solid particles can accumulate

    DIRECTIVAS

    • DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
    • DIR 2014/34/EU (ATEX) Area 2&22

    Technical Data

    FLANGE CONNECTION

    • PN10/PN16
    • ANSI 125/150

    SIZES & PRESSURES

    • DN20 to DN125: 10 bar
    • DN150 to DN250: 6 bar

    *Minimum opening pressure: 0.3 bar

    MATERIALS

    BODY Cast Iron (GG25), Ductil Iron (GGG40), Ductil Iron (GGG50), CF8M (AISI316), CF8 (AISI304). Special alloys under demand; bodies can be lined.

    BALL

    (Material + Lining)

    • DN-20/40 - Resin
    • DN-50/100 - Aluminium + Nitrile coated
    • DN-125/250 - Cast Iron (GG25) + Nitrile coated

    * The balls in resin cannot be rubber lined.
