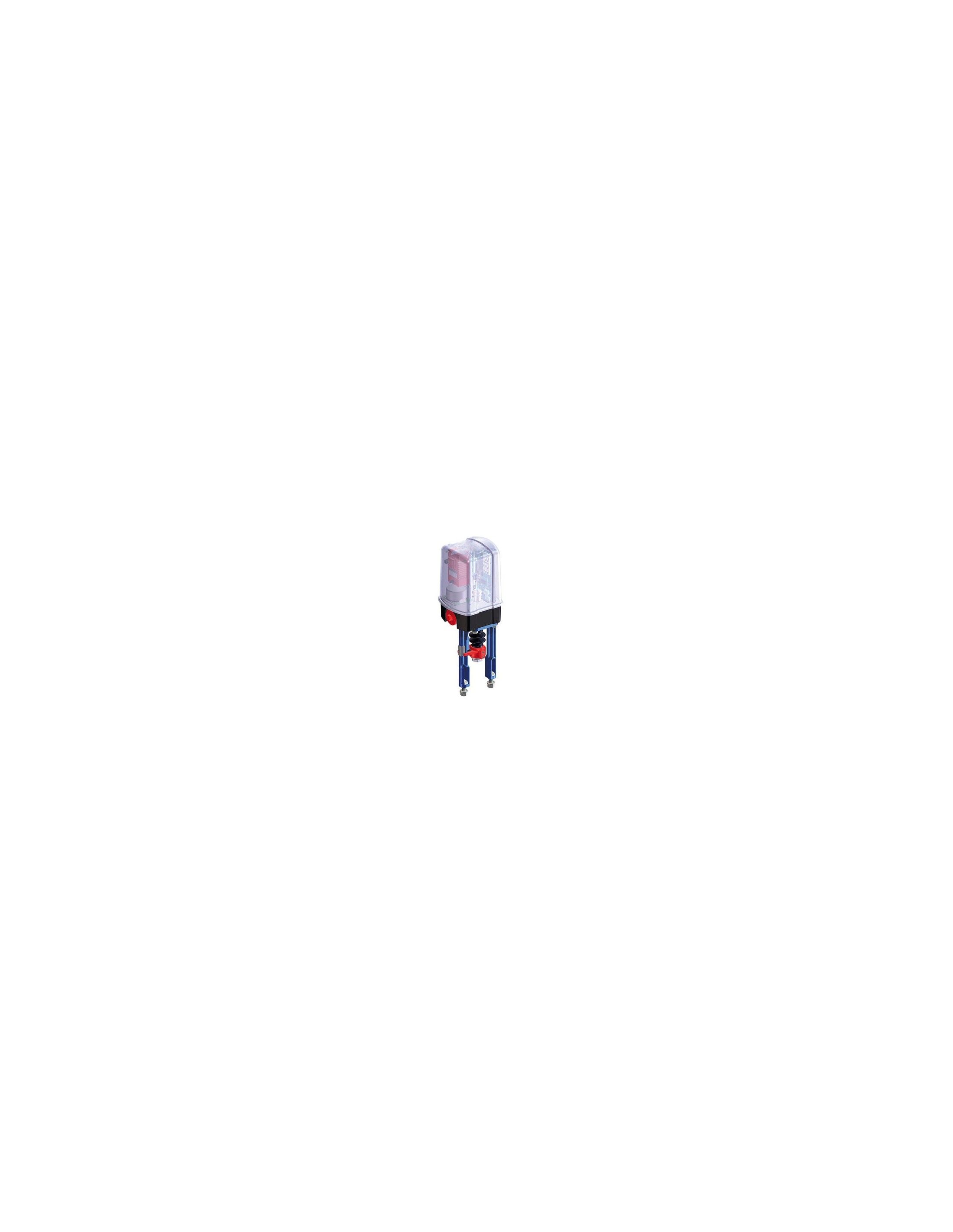

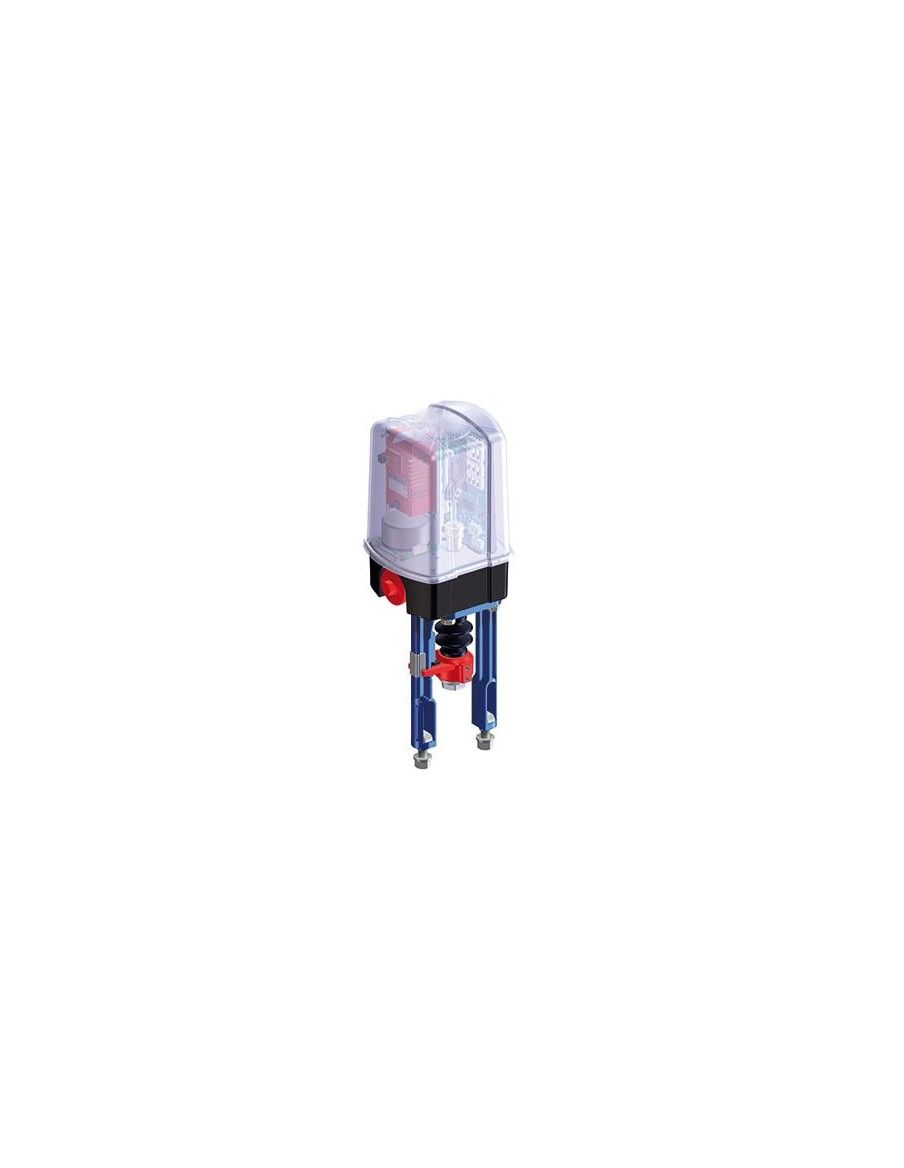

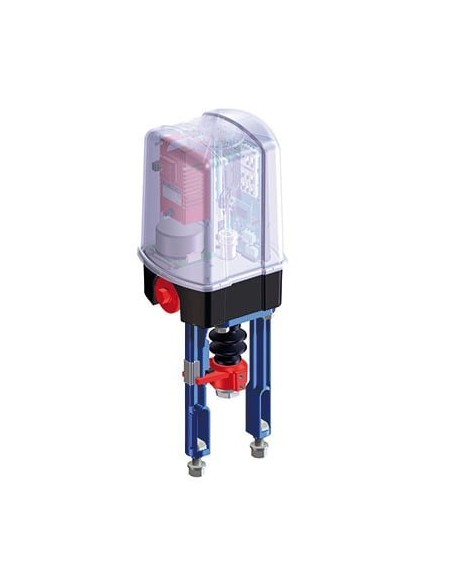

The Electric Actuator - PREMIO-Plus 2G by ARI is a versatile and robust actuator designed for precise control of valves in industrial systems. It is available in two models: the ARI-PREMIO®-Plus 2G 2.2 - 5 kN and the ARI-PREMIO®-Plus 2G 12 - 25 kN. Both models feature a BLDC motor, adjustable operating speeds, and a supply voltage of 24 V AC/DC. The 2.2 - 5 kN model offers a thrust force range of 2.2 kN to 5 kN, a maximum travel distance of 50 mm, and weighs 5.4 kg. The 12 - 25 kN model provides a thrust force range of 12 kN to 25 kN, a maximum travel distance of 80 mm, and weighs between 9.5 kg and 11.0 kg. Key features include optional input signals (3-point, 0-10 V, 4-20 mA), automatic valve travel adaptation, an economy function for extended lifetime, a manual override handwheel, contactless position determination, and an IP 65 enclosure for protection against dust and water. The actuator is designed for high precision and reliable feedback in valve positioning, making it ideal for demanding industrial applications. Technical specifications include a duty classification of S3 - 80% ED at +70°C, a maximum storage temperature range of -40°C to +85°C, and compliance with electrical safety standards (DIN EN 61010). Accessories available for the actuator include a relay board, analog output card, potentiometer, LED status indicator, Bluetooth communications package, and fieldbus interface for Profibus DP and Modbus RTU communication. The actuator can be mounted in any position except with the motor hanging downwards, and it includes a wiring diagram for power supply, control signals, and feedback connections. Dimensions for the 2.2 - 5 kN model range from 171 mm x 156 mm x 448 mm to 171 mm x 156 mm x 482 mm, while the 12 - 25 kN model ranges from 210 mm x 184 mm x 622 mm to 210 mm x 184 mm x 637 mm.

Datasheet and documents

Description

Models:

  1. ARI-PREMIO®-Plus 2G 2.2 - 5 kN

    • Thrust Force: 2.2 kN to 5 kN.
    • Motor Type: BLDC motor (Brushless DC motor).
    • Travel Distance: Max. 50 mm.
    • Operating Speed: Adjustable, with speeds of 0.25 / 0.38 / 0.47 / 1.0 mm/s.
    • Supply Voltage: 24 V AC/DC.
    • Weight: 5.4 kg.

  2. ARI-PREMIO®-Plus 2G 12 - 25 kN

    • Thrust Force: 12 kN to 25 kN.
    • Motor Type: BLDC motor.
    • Travel Distance: Max. 80 mm.
    • Operating Speed: Adjustable, with speeds of 0.20 / 0.31 / 0.38 / 0.79 mm/s.
    • Supply Voltage: 24 V AC/DC.
    • Weight: 9.5 kg - 11.0 kg.


Key Features:

  • Optional Input Signals:
    • 3-point (12 to 250 V AC/DC)
    • 0 - 10 V
    • 4 - 20 mA
  • Automatic Valve Travel Adaptation.
  • Economy Function for extended lifetime.
  • Manual Override Handwheel included.
  • Contactless Position Determination.
  • Thrust or Travel Switch optional.
  • Enclosure: IP 65 (protection against dust and water).


Technical Data:

  • Duty Classification: S3 - 80% ED (at +70°C).
  • Max. Storage Temperature: -40°C to +85°C.
  • Max. Permissible Ambient Temperature: -20°C to +70°C, for UL/CSA version up to +60°C.
  • Electrical Safety: DIN EN 61010.
  • Overvoltage Category II, Pollution Degree 2.


Accessories:

  • Relay Board for intermediate positions and failure/warning signals.
  • Analog Output Card for position feedback (0-10 V or 4-20 mA).
  • Potentiometer for manual adjustment of position.
  • LED Status Indicator for visual feedback on actuator status.
  • Bluetooth Communications Package for wireless operation.
  • Fieldbus Interface for Profibus DP and Modbus RTU communication.


Applications:

  • These actuators are ideal for controlling valves in industrial systems, with adjustable position control. They are suitable for processes requiring high precision and reliable feedback for valve positioning.


Wiring and Mounting:

  • Wiring Diagram: Includes connections for power supply, control signals, and feedback.
  • The actuator can be mounted in any position, except when the motor is hanging downwards.


Dimensions:

  • 2.2 - 5 kN: Nominal travel 30 mm to 50 mm.
    • Dimensions (A x B x H): 171 mm x 156 mm x 448 mm to 171 mm x 156 mm x 482 mm.
  • 12 - 25 kN: Nominal travel 50 mm to 80 mm.
    • Dimensions (A x B x H): 210 mm x 184 mm x 622 mm to 210 mm x 184 mm x 637 mm.
