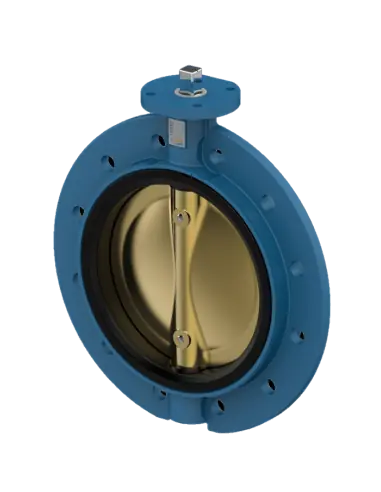

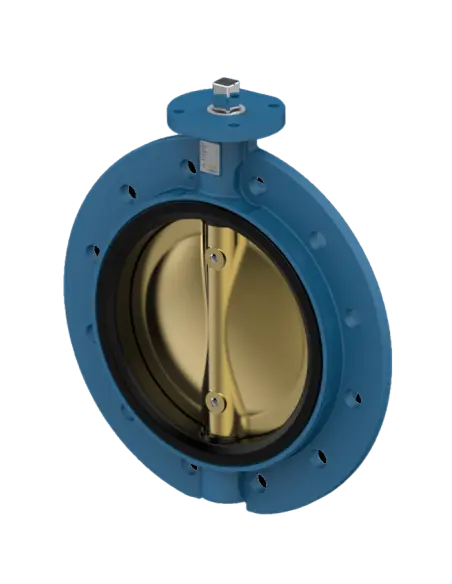

The Butterfly Valve Mono Flanged Short - S60 by Alfa Europe is a versatile valve solution designed for a range of applications. It is available in sizes from DN50 to DN1000 and features a mono type short end connection with a bonded liner. The valve is compatible with various flange standards, including DIN PN6-10-16-25, ANSI B 16.5 Cl. 150#, and JIS B 2211 5K, 10K. It operates effectively within a wide temperature range of -40 to +250 °C. The face-to-face dimensions comply with EN 558.1 series 20, ensuring easy integration into existing systems.
Standard (Options)
  • DIN
  • ANSI
  • JIS
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • EN-JS 1030 (GGG40) Ductile Iron
  • 1.4408
  • ASTM A216 WCB
  • BS 1400 AB2 (Aluminium Bronze)
Pressure Rating (Options)
  • PN 6
  • PN 10
  • PN 16
  • PN 25
Seat (Options)
  • NBR

Datasheet and documents

Description

Range: Size DN50 to DN1000

End connection: Mono type short - Bonded liner

Flange connection: DIN PN6-10-16-25 - ANSI B 16.5 Cl. 150# - JIS B 2211 5K, 10K

Temperature range: -40 / + 250 °C

Face to face: acc. EN 558.1 series 20

Certificates

DNV CertificateLloyd's Register Certificate

ABS CertificateCCS Certificate
