3 Way Ball Valve (T) (L) full bore - 2544 L bore - 2545 T bore | Genebre
3 Way Ball Valve (T) (L) full bore - 2544 L bore - 2545 T bore | Genebre

3 Way Ball Valve (T) (L) full bore - 2544 L bore - 2545 T bore | Genebre

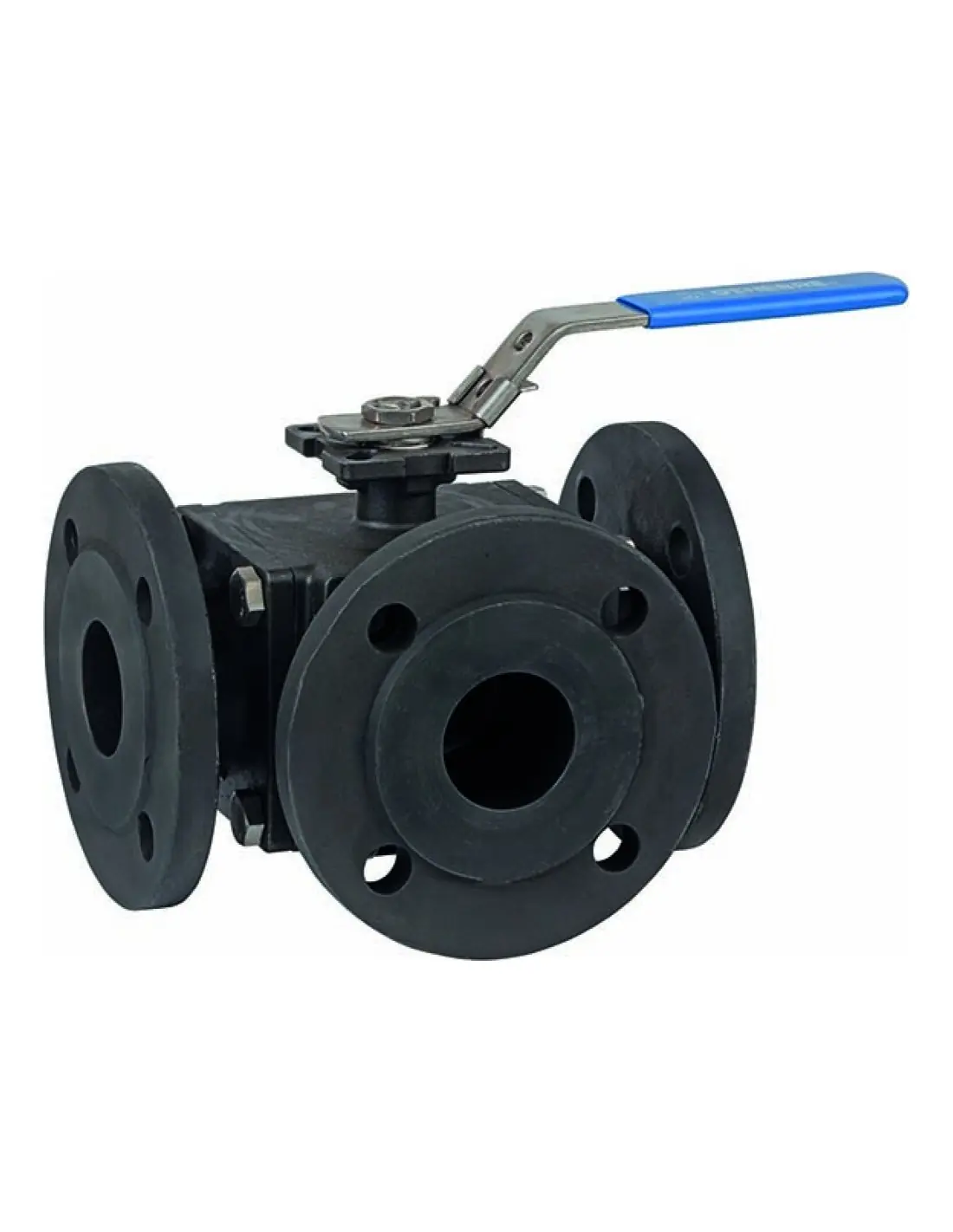

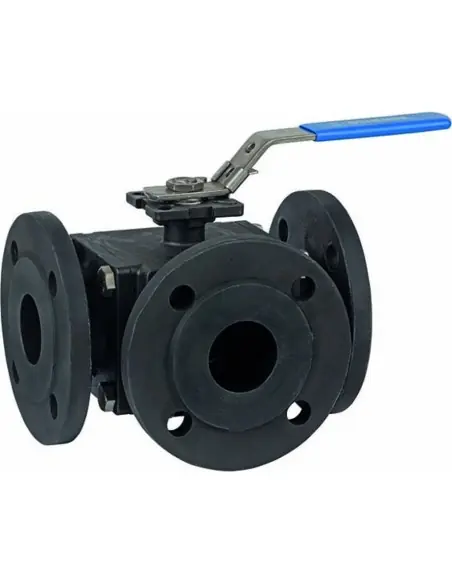

The Genebre 3 Way Ball Valve is a versatile and robust valve designed for efficient fluid control in various industrial applications. Available in both T and L configurations, this valve offers full bore design for optimal flow capacity. The 2544 model features an L bore, ideal for diverting flow between two outlets, while the 2545 model has a T bore, allowing for mixing or distributing flow across three ports. Engineered for durability and reliability, these valves are suitable for a wide range of pressures and temperatures, making them an excellent choice for complex piping systems.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE + 15 % G.F

Datasheet and documents

Description

Direct mounting for actuators ISO 5211.

Body: Carbon steel 1.0619 (WCB) investment casting.

Ball: AISI 316. Ball seats: PTFE.

Máx. Pressure: 16/40 bar depending on size.

Temp.: -30ºC +180ºC. Manually operated by handle with locking system.

Reference: 2545

ReferenceSizeMinimum purchase unitWeight (Kg)Box / carton
2545 06V.ESF.3VIAS BRIDAS "T"WCB 1"17.331/3
2545 07V.ESF.3VIAS BRIDAS "T"WCB 1"1/4110.391/2
2545 08V.ESF.3VIAS BRIDAS "T"WCB 1"1/2114.281/1
2545 09V.ESF.3VIAS BRIDAS "T"WCB 2"118.371/1
2545 10V.ESF.3VIAS BRIDAS "T"WCB 2"1/2126.61/1
2545 11V.ESF.3VIAS BRIDAS "T"WCB 3"139.061/1
2545 12V.ESF.3VIAS BRIDAS "T"WCB 4"157.1651/1

Certificates

GENEBRE, S.A. has implemented a quality management system to control the designing and manufacturing of fluid control valves, as well as the distribution of home and public taps.

This system complies with the requirements of the current international UNE-EN-ISO 9001:2015, certified by the prestigious German certification organization TÜV Rheinland.

In 2000, GENEBRE began to comply with the European Business Excellence Model, more commonly known as the EFQM. As a result, in 2003, the Catalan Regional Government awarded us with the Quality Award. This new system enables us to ensure the quality of GENEBRE's products and also to offer added value to our clients.

In 2012, we obtained the certification for the Environmental Management System. This system is certified according to the UNE-EN-ISO 14001:2015, also by TÜV Rheinland. GENEBRE QUALITY AND ENVIRONMENTAL POLICY
