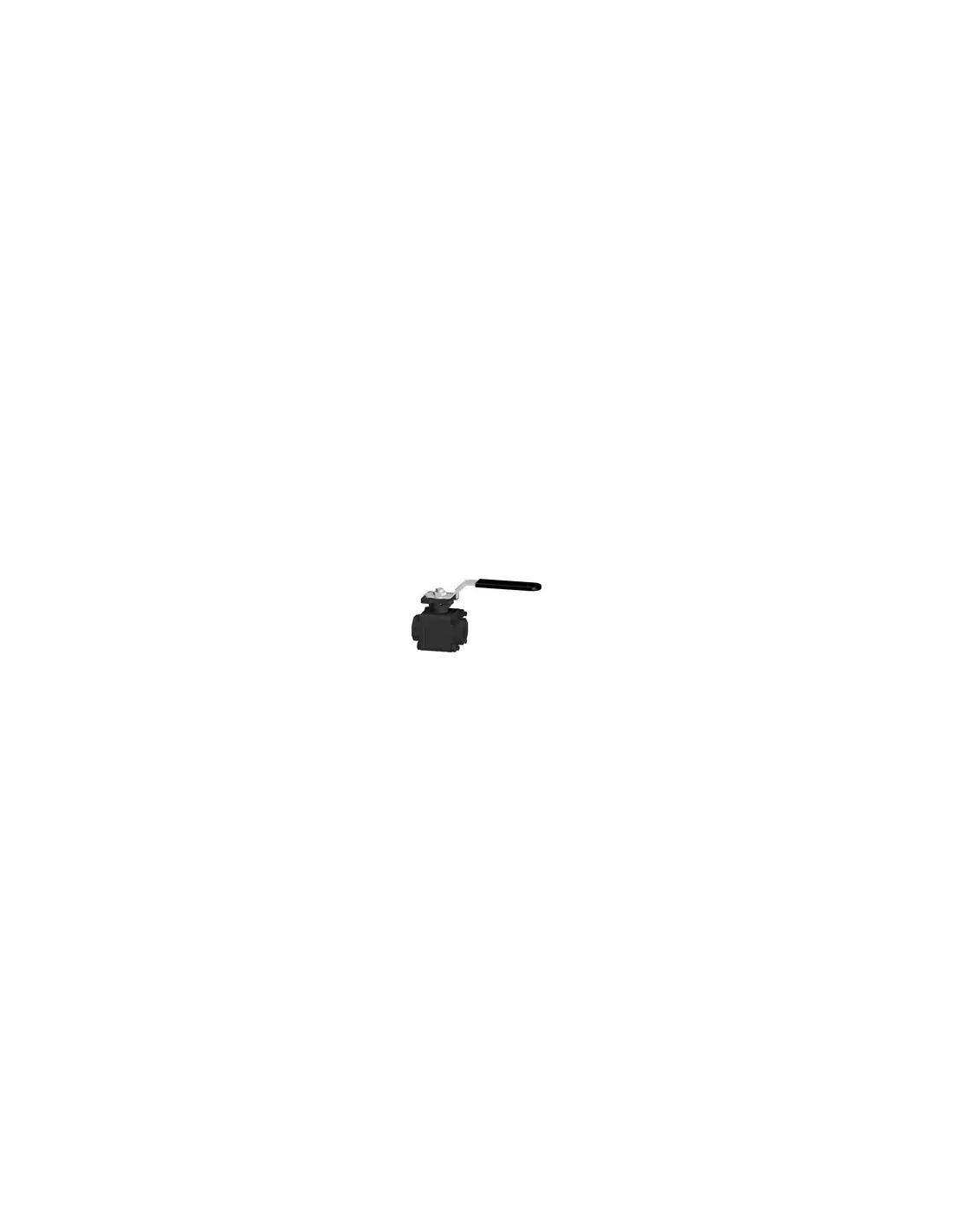

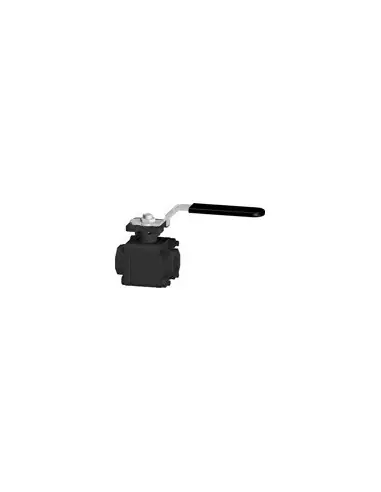

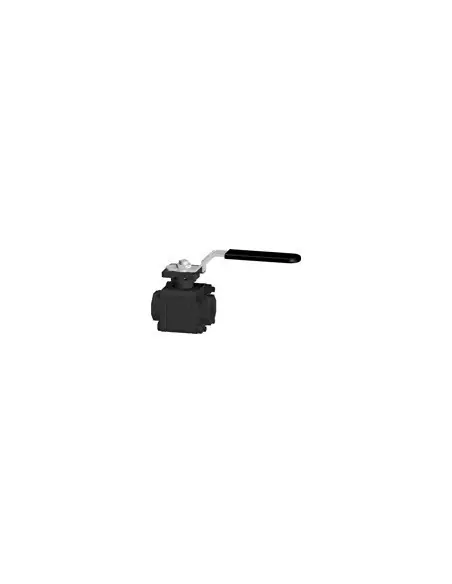

The Ball Valve - UNIFLOW Fig. B8 by Comeval is a versatile and reliable floating ball valve designed for bidirectional flow control in various industrial applications. It features a split body construction and can be operated manually via a hand lever, or automatically using gear, pneumatic, or electric actuators. The valve is available in a range of design combinations, including different end connections (flanged, BW), materials (cast and forged steel), and nominal sizes (DN15-50 / 1/2" - 2"). It supports a wide design pressure range (PN16-100 / ANSI Class 150-800). This valve is suitable for use in HVAC systems, lubrication processes, gas and compressed air systems, and other industrial processes. It is certified for fire safety according to API 607 and API 6FA standards and complies with the Comeval PED certification.
Standard (Options)
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A182 F304
  • ASTM A182 F316
  • ASTM A216 WCB
  • ASTM A351 CF8
  • ASTM A351 CF3
  • ASTM A351 CF3M
  • ASTM A351 CF8M
  • ASTM A352 LCB
Pressure Rating (Options)
  • 150 lbs
  • 300 lbs
  • 600 lbs

Datasheet and documents

Description

Floating ball valves, split body, bidirectional, for stopping the flow in process, industry, etc. Operated by hand lever, gear or actuator.

Specification of the range:

Diverse design combinations by end connections (flanged, BW), materials of construction (cast and forged), nominal size range (DN15-50 / 1/2" -2"), design pressure range (PN16-100 / ANSI Class 150-800), operated by hand lever, gear, pneumatic or electric actuators styles and accessories.

Other typical denominations: Forged steel Forged steel floating ball valves Module H

Applications: HVAC, lubrication, gases, compressed air, process, etc.

Certifications: Fire test api 607 floating ball valve 4 8 inches class 300 600, Fire test api 6fa floating ball valve 2 8 inch class 150 300, Fire test api 6fa floating ball valve 8 16 inch class 150 300, Comeval ped

Certificates

Fire test api 607 floating ball valve 4 8 inches class 300 600

Fire test api 6fa floating ball valve 2 8 inch class 150 300

Fire test api 6fa floating ball valve 8 16 inch class 150 300

Comeval ped module h certificate of conformity

Eac certification 032

Eac declaration 010

Eac declaration 032

Floating and trunnion ball valves declaration of conformity

Floating and trunnion ball valves declaration of conformity atex
